Sapphire Rapids-SP (LGA-4677-E) SKT-E + EBG PCH, 8x DDR5

MBD-X13SEW-TF-B
https://safeconsulting.no/web/image/product.template/9743/image_1920?unique=dec9d2d

kr 9,226.17 9226.17 NOK kr 9,226.17

kr 9,226.17

Not Available For Sale

    This combination does not exist.

    Summary Description

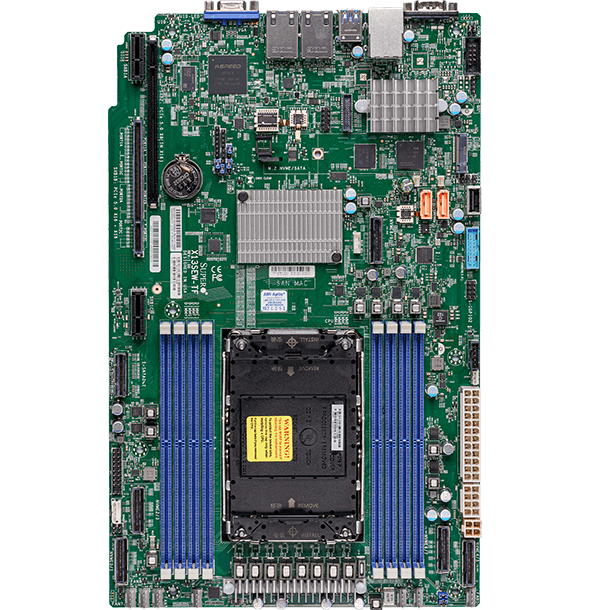

    Supermicro Motherboard MBD-X13SEW-TF-B

    Product Highlights

    • 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
    • Intel C741® Chipset
    • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
    • 1 PCIe 5.0 x8 ( in x16)
      • 1 PCIe 5.0 x32
      • M.2 Interface:1 PCIe 3.0 x2
      • M.2 Form Factor:2280, 22110
      • M.2 Key:M-Key
    • 10 NVMe ports PCIe 5.0 x8 via 5 MCIO connectors
    • Dual LAN with 10GBase-T with Intel® X550
    • 2 SuperDOM with built-in power
    • I/O: 1 VGA, 2 COM, 1 TPM header
    • 4 USB 3.2 Gen1 (2 rear, 2 via header), 3 USB 2.0 (2 rear, 1 via Type-A)
    • Intel® C741 controller for 10 SATA3 (6 Gbps) ports

    Description

    Supermicro Motherboard MBD-X13SEW-TF-B

    Product Specifications

    Product SKUs:
    MBD-X13SEW-TF
    Physical Stats
    Form FactorProprietary WIO
    Dimension8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processorsSingle Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP*BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
    CoreUp to 64 cores
    System Memory
    Memory Capacity8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MHz**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
    Memory Type5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
    DIMM Sizes16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C741
    SATAIntel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 Aspeed AST2600 BMC port(s)
    Network ControllersDual LAN with 10GBase-T with Intel® X550
    Input / Output
    SATA10 SATA3 (6Gbps) port(s)
    LAN2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
    USB5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    DOM2 SATA DOM (Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 5.0 x8 Right Riser (in x16) slot, 1 PCIe 5.0 x32 Left Riser Slot, 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
    M.2M.2 Interface: 1 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.4 SMBIOS 3.5 UEFI 2.8 or above
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UIDCPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor 2 (TM2) supportPECI
    FAN6x 4-pin fan headers (up to 6 fans)Fan speed control6 fans with tachometer status monitoringOverheat LED indication
    Other FeaturesWOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
