  2. [NR]Arrow lake-S LGA1851, TDP 150W, Intel W880 chipset

[NR]Arrow lake-S LGA1851, TDP 150W, Intel W880 chipset

MBD-X14SAE-B
https://safeconsulting.no/web/image/product.template/13535/image_1920?unique=ce410c7

kr 5,324.93 5324.93 NOK kr 5,324.93

kr 5,324.93

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

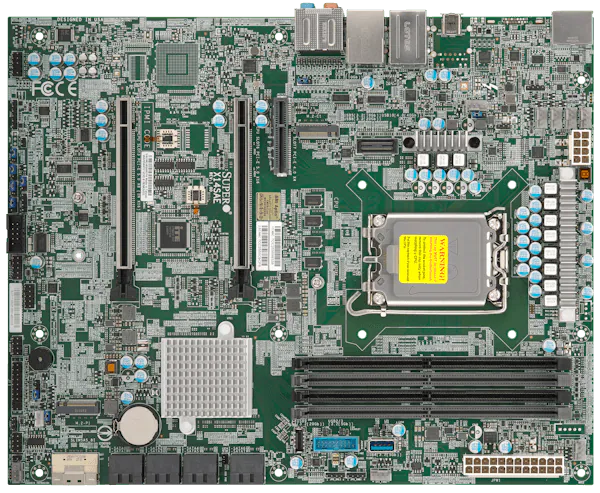

    Supermicro Arrow Lake-S motherboard with Intel W880 chipset supports high-performance Intel Core Ultra processors, offering advanced memory capacities and enhanced connectivity options including PCIe 5.0 and Thunderbolt 4.

    Key Features

    • Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel® V1 Socket) supported, CPU TDP supports Up to 125W TDP
    • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
    • M.2 Interface:1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only)M.2 Form Factor:2280/22110M.2 Key:M-Key
    • 2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
    • 2 PCIe 5.0 x16 slots,1 PCIe 4.0 x4 slot
    • A 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller
    • A 1 Gigabit LAN with Intel® Ethernet i219LM LAN controller [AMT/vPro]
    • 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C®*Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps
    • Intel® W880 Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Supports Thunderbolt 4
    • Onboard TPM2.0

    Key Applications

    • Enterprise Servers
    • Data Centers
    • High-Performance Computing
    • Virtualization Solutions
    • AI Workloads
    • Machine Learning
    • Server Farms
    • Cloud Computing
    • Data Analytics Platforms
    • Large-Scale IT Infrastructure

    Description

    The Supermicro Arrow Lake-S motherboard features an Intel W880 chipset, designed to deliver maximum processing power with support for Intel Core Ultra processors. With four DIMM slots, it provides up to 192GB of DDR5 memory. This versatile motherboard includes dual LAN ports, Thunderbolt 4, and a variety of PCIe slots, making it suitable for a wide range of applications from enterprise servers to high-performance computing.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SAE
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.5cm x 24.4cm)
    Processor
    CPU
    • Intel® Core™ Ultra 9/7/5 Processors
    • Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MT/s
    • *Supports up to 192GB of DDR5 UDIMM with speeds of up to 5600MT/s with one DIMM single rank, or 4400MT/s with two DIMM dual rank in four memory slots
    Memory Type
    • 5600 MT/s Up to 192GB of memory with speeds of up to 5600 MT/s(2DPC)
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel W880
    SATA
    • 8 SATA3 ports; RAID 0,1,5,10
    • 1 SATA3 ports
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® I226LM Ethernet Controller
    • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s) Supports software RAID 0,1,5,10
    USB
    • 3 USB 3.2 PCIe Gen. 2 port(s) (3 rear type A)
    • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    • 2 USB 3.2 Gen1 port(s) (2 headers)
    • 1 USB 4 port(s) (1 rear type C Intel® Thunderbolt™ 4)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4/ DP2.1) port(s), 1 HDMI port(s) Supports up to 8K@60Hz
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4,
    • 2 PCIe 5.0 x16 (support up to 16/NA or 8/8; slot 3 support bifurcation x4x4
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2280, 2280/22110
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.8 or later
    • UEFI 2.9
    Management
    Software
    • Supermicro Server Manager (SSM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , SuperServer Automation Assistant (SAA) New!
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V, +3.3V, +12V, CPU thermal trip support, UID, +1.8V CPU, Triple Cooling Zones
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • 5 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 112°F)
    Non-Operating Temperature Range
    • -20°C - -60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00192-0B1Standard I/O Shield for X14SAE  with EMI Gasket & Black Mylar
    SATA cable
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00192-0B1Standard I/O Shield for X14SAE  with EMI Gasket & Black Mylar
    QRG
    MNL-2706-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-0044L457.5 cm SATA FLAT S-S PBF
