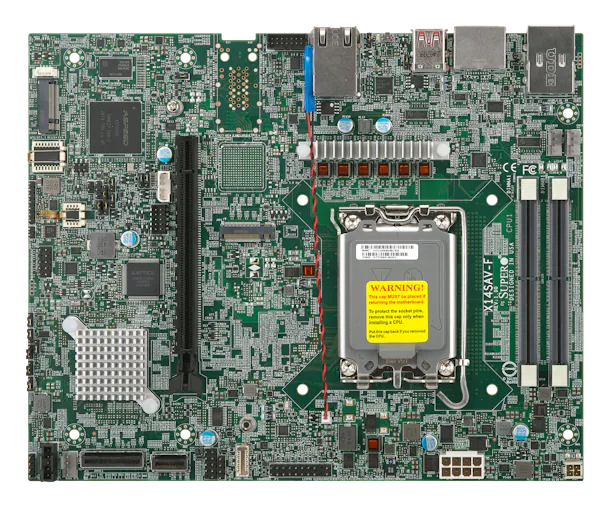

[NR] X14,Embedded,FlexATX,ARL-S,UP,PCH W880,Dual LAN,LGA1851

MBD-X14SAV-F-B
https://safeconsulting.no/web/image/product.template/15834/image_1920?unique=e0abd13

kr 5,239.86 5239.86 NOK kr 5,239.86 VAT Excluded

kr 5,239.86 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The [NR] X14 motherboard offers exceptional capabilities with Intel Core Ultra support and dual 2.5 Gigabit LAN. It boasts significant expandability through PCIe 5.0 and M.2 slots, making it suitable for high-demand embedded applications. Advanced management and I/O support enhance its adaptability.

    Key Features

    • Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851 supported, CPU TDP supports Up to 125W TDP
    • Up to 96GB Unbuffered ECC/non-ECC CSODIMM/SODIMM, clocked DIMM support up to 6400MT/s (with Core Ultra 9/7), in 2 slots
    • 1 PCIe 5.0 x16 slot (16/NA or 8/8 or 8/4/4),1 MCIO x8 port, 1 MCIO x4 port1 M.2 M-Key 2280 (PCIe 5.0 x4)1 M.2 B-Key 3052 (PCIe 4.0 x1/USB 3)
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller [AMT/vPro]
    • Intel® W880 Controller for 4 SATA3 (6 Gbps) ports via cable; RAID 0,1,5,10
    • Supports 12V DC power input

    Key Applications

    • Embedded systems
    • Professional workstations
    • High-performance computing
    • Network appliances
    • IoT devices

    Description

    The [NR] X14 motherboard provides robust performance with support for Intel Core Ultra 9/7/5 Series 2 processors and up to 96GB DDR5 memory. It features an Intel W880 chipset, dual 2.5 Gigabit LAN with vPro support, and includes multiple high-speed expansion interfaces, such as PCIe 5.0 x16 and M.2 slots. With advanced management capabilities and a compact FlexATX form factor, it is ideal for embedded systems and professional applications. Additional functionalities include comprehensive I/O ports and support for a 12V DC power input.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SAV-F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Core® Ultra 9/7/5 Series 2 Processors
    • Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s
    • CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7)
    Memory Type
    • 5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel W880
    Network Controllers
    • Dual LAN with Intel® I226LM Ethernet Controller
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2 port(s) (2 via header)
    • 6 USB 3.2 PCIe Gen. 2 port(s) (4 rear type A; 2 via header)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Header port(s), 1 HDMI 2.1 port(s)
    Serial Port
    • 1 COM Port(s) (1 header RS232)
    TPM
    • TPM Header & Chip both
    Others
    • 2 MCIO
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16,
    • 1 PCIe 4.0 x8 MCIO connector
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4; 1 PCIe 4.0 / USB3
    • Form Factor: 2280, 3052
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    Management
    Software
    • SuperCloud Composer , Supermicro Server Manager (SSM) , Super Diagnostics Offline (SDO) , Supermicro Thin-Agent Service (TAS) , SuperServer Automation Assistant (SAA) New! , Plug-ins for 3rd Party Software
    PC Health Monitoring
    Voltage
    • VBAT, Memory temperature, CPU temperature, Chipset Voltage, 3 -fan status, +5V, +3.3V, +12V, +1.8V, BMC/IPMI Heartbeat LED, UID, 3 fans with tachometer monitoring
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    Other Features
    • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 85°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-MCIO-1250QT4Q-85150cm MCIOx4 to 4x SATA cable
    CBL-PWEX-106614-pinATX Power Signal Cable
    I/O Shield
    -1StandardI/O Shield
    Retail Package
    I/O Cables
    CBL-MCIO-1250QT4Q-85150cm MCIOx4 to 4x SATA cable
    CBL-PWEX-106614-pinATX Power Signal Cable
    I/O Shield
    -1StandardI/O Shield
    QRG
    -1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Active Heatsink
    SNK-P0092AP4-112UActive CPU Heat Sink for Intel Socket LGA1700 Platform
    SNK-P0085A411UHeatsink
    Risercard
    RSC-S-6G511ULHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    TPM security module (optional, not included)
    AOM-TPM-9672H1SPITPM 2.0 using SLB9672 (Retail Pack)
