    Summary Description

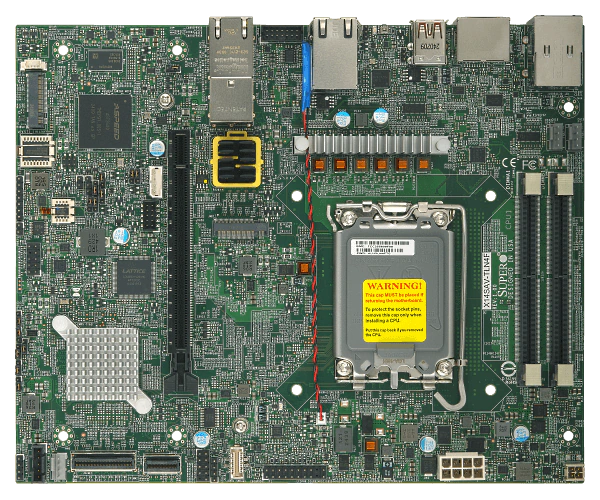

    The X14 Embedded FlexATX motherboard delivers robust performance with support for Intel Core Ultra processors, quad LAN connectivity, and versatile expansion options including PCIe and M.2 interfaces. Ideal for demanding embedded applications.

    Key Features

    • Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851 supported, CPU TDP supports Up to 125W TDP
    • Up to 96GB Unbuffered ECC/non-ECC CSODIMM/SODIMM, clocked DIMM support up to 6400MT/s (with Core Ultra 9/7), in 2 slots
    • 1 PCIe 5.0 x16 slot (16/NA or 8/8 or 8/4/4),1 MCIO x8 port, 1 MCIO x4 port1 M.2 M-Key 2280 (PCIe 5.0 x4)1 M.2 B-Key 3052 (PCIe 4.0 x1/USB 3)
    • Dual 10 Gigabit LAN with Intel® Ethernet X550-AT2 LAN controller
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller [AMT/vPro]
    • Intel® W880 Controller for 4 SATA3 (6 Gbps) ports via cable; RAID 0,1,5,10
    • Supports 12V DC power input

    Key Applications

    • Enterprise Networking
    • Industrial Automation
    • Data Centers
    • Edge Computing
    • Telecommunications
    • Cloud Infrastructure
    • AI Workloads
    • IoT Devices

    Description

    The X14 Embedded FlexATX motherboard supports Intel Core Ultra 9/7/5 Series processors with a single socket LGA-1851 and up to 125W TDP. It offers dual 10G and 2.5G LAN, supports up to 96GB ECC/non-ECC DDR5 memory, and features multiple expansion slots including PCIe 5.0 and M.2 interfaces. This board is ideal for high-performance embedded applications requiring robust networking and storage capabilities, with integrated RAID and IPMI support for enhanced system management.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SAV-TLN4F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Core® Ultra 9/7/5 Series 2 Processors
    • Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s
    • CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7)
    Memory Type
    • 5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel W880
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Dual LAN with Intel® I226LM Ethernet Controller
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2 port(s) (2 via header)
    • 6 USB 3.2 PCIe Gen. 2 port(s) (4 rear type A; 2 via header)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Header port(s), 1 HDMI 2.1 port(s)
    Serial Port
    • 1 COM Port(s) (1 header RS232)
    TPM
    • TPM Header & Chip both
    Others
    • 2 MCIO
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16,
    • 1 PCIe 4.0 x8 MCIO connector
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4; 1 PCIe 4.0 / USB3
    • Form Factor: 2280, 3052
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    Management
    Software
    • SuperCloud Composer , Supermicro Server Manager (SSM) , Super Diagnostics Offline (SDO) , Supermicro Thin-Agent Service (TAS) , SuperServer Automation Assistant (SAA) New! , Plug-ins for 3rd Party Software
    PC Health Monitoring
    Voltage
    • VBAT, Memory temperature, CPU temperature, Chipset Voltage, 3 -fan status, +5V, +3.3V, +12V, +1.8V, BMC/IPMI Heartbeat LED, UID, 3 fans with tachometer monitoring
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    Other Features
    • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 85°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-MCIO-1250QT4Q-85150cm MCIOx4 to 4x SATA cable
    CBL-PWEX-106614-pinATX Power Signal Cable
    I/O Shield
    -1StandardI/O Shield
    Retail Package
    I/O Cables
    CBL-MCIO-1250QT4Q-85150cm MCIOx4 to 4x SATA cable
    CBL-PWEX-106614-pinATX Power Signal Cable
    I/O Shield
    -1StandardI/O Shield
    QRG
    -1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Active Heatsink
    SNK-P0092AP4-112UActive CPU Heat Sink for Intel Socket LGA1700 Platform
    SNK-P0085A411UHeatsink
    Risercard
    RSC-S-6G511ULHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    TPM security module (optional, not included)
    AOM-TPM-9672H1SPITPM 2.0 using SLB9672 (Retail Pack)
