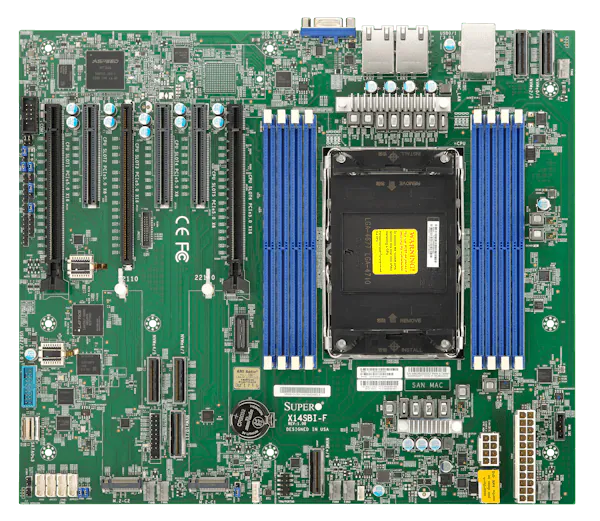

[NR]X14, Server, ATX, Birch Stream, UP, GNR/SRF-SP, LGA4710

SKU:	MBD-X14SBI-F-B
Brand:	Supermicro

kr 6,893.25 6893.25 NOK kr 6,893.25 VAT Excluded

kr 6,893.25 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro X14 ATX server with Intel Xeon 6700-series processors supports up to 144 E-cores and 1TB DDR5 memory. Featuring dual LAN, TPM2.0, and 6 PCIe 5.0 via MCIO connectors, it ensures high performance and reliability.

Key Features

Intel® Xeon® 6700-series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
6 PCIe 5.0 x8 via MCIO connectors
3 PCIe 5.0 x16,3 PCIe 5.0 x8,M.2 Interface:2 PCIe 5.0 x2M.2 Form Factor:22110M.2 Key:M-Key
Dual LAN with 1GbE with Intel®I210
Onboard TPM2.0
4 USB 3.2 Gen1 (2 rear, 2 via header), 4 SATA3 (via SlimSAS x4)

Key Applications

Data Centers
Enterprise Servers
High Performance Computing
Virtualization
Cloud Computing
Network Applications

Description

The Supermicro X14 ATX Birch Stream Server features a single Socket LGA-4710 supporting up to 144 E-cores of Intel Xeon 6700-series processors. With 8 DIMM slots supporting up to 1TB DDR5-6400MT/s ECC RDIMM, dual LAN with Intel I210, TPM2.0, 6 PCIe 5.0 via MCIO connectors, and comprehensive health monitoring, it's designed for powerful and efficient performance.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X14SBI-F
Physical Stats
Form Factor	ATX
Dimension	12.3" x 10.5" (31.24cm x 26.67cm)
Processor
CPU	Intel® Xeon® 6700-series processors with E-cores Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core	Up to 144 (E) cores
System Memory
Memory Capacity	8 DIMM slots Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes	32GB, 64GB, 96GB, 128GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
SATA	ASMediaASM1164 controller for 4 SATA3 ports
IPMI	ASPEED AST2600 BMC
Network Controllers	Dual LAN with 1GbE with Intel® I210
Input / Output
SATA	4 SATA3 port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe	3 PCIe 5.0 x8, 3 PCIe 5.0 x16, 6 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2	M.2 Interface: 2 PCIe 5.0 x2 Form Factor: 22110 Key: M-Key
System BIOS
BIOS Type	AMI 64MB AMI UEFI
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7 -fan status
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	7x 4-pin fan headers (up to 7 fans) Fan speed control Overheat LED indication
Other Features	WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Standard Part List

Part Number	Quantity	Description
Bulk Package
CPU carrier
SKT-1543H-0000-FXC	1	CPU carrier for Intel® Xeon® 6 processors (XCC)
SKT-1544H-0000-FXC	1	CPU carrier for Intel® Xeon® 6 processors (HCC/LCC)
SATA cable
CBL-SAST-1280QT4S2-100	1	SlimSASx4 STR to 4xSATA w/2SB,80CM,100Ohm,RoHS
Retail Package
CPU carrier
SKT-1543H-0000-FXC	1	CPU carrier for Intel® Xeon® 6 processors (XCC)
SKT-1544H-0000-FXC	1	CPU carrier for Intel® Xeon® 6 processors (HCC/LCC)
QRG
MNL-2712-QRG	1	Motherboard Quick Reference Guide
SATA cable
CBL-SAST-1280QT4S2-100	1	SlimSASx4 STR to 4xSATA w/2SB,80CM,100Ohm,RoHS
