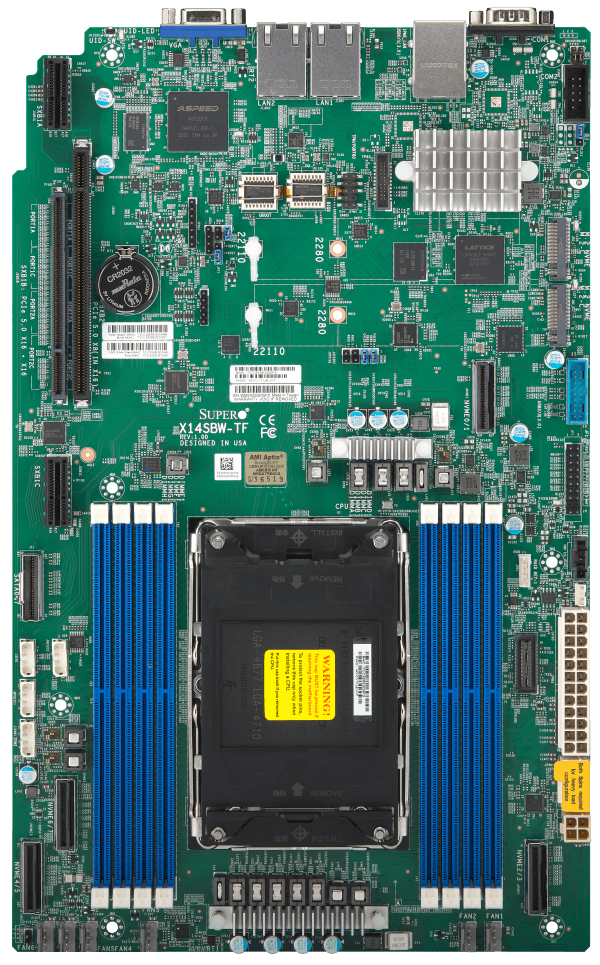

[NR]X14, Server, WIO, Birch Stream, UP, GNR/SRF-SP, LGA4710

SKU: MBD-X14SBW-TF-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/10224/image_1920?unique=2901943

kr 6,736.43 6736.43 NOK kr 6,736.43 VAT Excluded

kr 6,736.43 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    Experience high performance with the Supermicro MBD-X14SBW-TF-B, featuring Intel® Xeon® 6700E-series processor support, up to 1TB ECC RDIMM DDR5-6400MT/s memory, and dual LAN with 10GBase-T.

    Key Features

    • Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
    • Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
    • 4 PCIe 5.0 X8 via MCIO connectors
    • 1 PCIe 5.0 x8 (WIO-R),2 PCIe 5.0 x16 (WIO-L),M.2 Interface:2 PCIe 5.0 x2M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with 10GBase-T with Intel®X550
    • Onboard TPM2.0
    • 4 USB 3.2 Gen1(2 rear, 2 via header), 8 SATA3 (via SlimSAS x8)

    Key Applications

    • High-performance computing
    • Data centers
    • Enterprise servers
    • AI and ML workloads
    • Cloud computing

    Description

    The Supermicro MBD-X14SBW-TF-B motherboard is engineered to deliver high performance and reliability. It supports Intel® Xeon® 6700E-series processors with a single Socket LGA-4710, handling CPU TDP up to 350W. Maximize your computing power with up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots. Expandability is enhanced with 4 PCIe 5.0 X8 via MCIO connectors, along with dual LAN 10GBase-T, onboard TPM2.0, and multiple USB 3.2 Gen1 and SATA3 ports.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SBW-TF
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU
    • Intel® Xeon® 6700E-series
    • Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
    Core
    • Up to 144 (E) cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
    Memory Type
    • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
    DIMM Sizes
    • 32GB, 64GB, 128GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • ASMediaASM1164 controller for 8 SATA3 ports
    IPMI
    • ASPEED AST2600 BMC
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X550
    Input / Output
    SATA
    • 8 SATA3 port(s)
    LAN
    • 2 RJ45 10 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    • 1 TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x8 Right Riser (in x16) slot,
    • 1 PCIe 5.0 x32 Left Riser Slot,
    • 4 PCIe 5.0 x8 PCIe5.0 MCIO connector
    M.2
    • M.2 Interface: 2 PCIe 5.0 x2
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 64MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
