  2. RAIL SET, QUICK/QUICK, DEFAULT FOR 4U 17.2"W

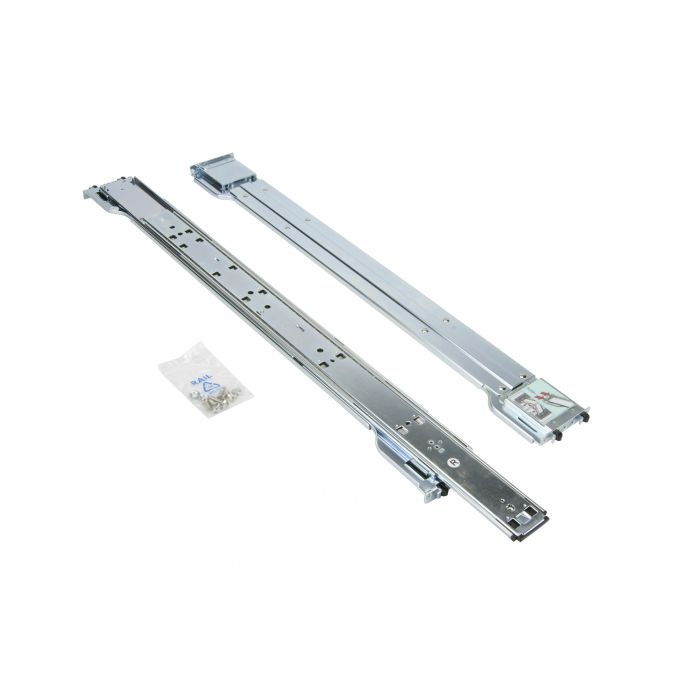

RAIL SET, QUICK/QUICK, DEFAULT FOR 4U 17.2"W

MCP-290-00057-0N
https://safeconsulting.no/web/image/product.template/5440/image_1920?unique=73d2afe

kr 975.94 975.94 NOK kr 975.94

kr 975.94

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro 4U-5U Rackmount Rail Kit (MCP-290-00057-0N) features quick inner and outer rail release, extending up to 36.4". It is compatible with CSE-417, CSE-418, CSE-846, CSE-847, CSE-848, and CSE-842 chassis, ensuring top quality through Supermicro's validation.

    Key Features

    • Extendable up to 36.4"
    • Compatible with multiple chassis models
    • Quick inner and outer rail release
    • Ball-bearing mechanism
    • Supports round hole racks with adapter
    • Supermicro certified
    • High-quality construction
    • RoHS and REACH compliant

    Key Applications

    • Server Racks
    • Data Centers
    • IT Infrastructure
    • Network Closets
    • High-Density Deployments

    Description

    The Supermicro 4U-5U Rackmount Rail Kit (MCP-290-00057-0N) features a quick inner and outer rail release and extends up to 36.4". Compatible with CSE-417, CSE-418, CSE-846, CSE-847, CSE-848, and CSE-842 chassis, this rail kit ensures the best quality with full testing and validation by Supermicro. It includes inner rail MCP-290-00115-0N and outer rail MCP-290-00117-0N. Installation instructions are in the chassis or system manual. Note: Individual SKUs are not sold separately.

    Product Specifications

    Specification Details
    General
    Compatible Chassis
    • CSE-417, CSE-418, CSE-846, CSE-847, CSE-848, CSE-842
    Validated Systems
    • AS-2023US-TR4, AS-4124GS-TNR, SSG-947R-E2CJB, SSG-2026T-DE2R24L, SSG-2027B-CIB020H, SSG-2027B-DE2R24L, SSG-6047R-E1R24L, SSG-6048R-DE2CR24L, SSG-6048R-E1CR24H, SSG-6048R-E1CR24L, SSG-6048R-E1CR24N, SSG-6048R-E1CR72L, SSG-6049P-E1CR24H, SSG-6049P-E1CR24L, SYS-2029GP-TR, SYS-2029U-E1CR4, SYS-2029U-E1CR4T, SYS-2029U-E1CR25M, SYS-2029U-E1CRT, SYS-2029U-E1CRTP, SYS-2029U-TR4, SYS-2029U-TR4T, SYS-2029U-TR25M, SYS-2029U-TRT, SYS-2029U-TRTP, SYS-2029UZ-TR4+, SYS-2048U-RTR4, SYS-2049P-TN8R, SYS-2049U-TR4, SYS-4047R-7JRFT, SYS-4048B-TR4FT, SYS-4048B-TRFT, SYS-5037MC-H8TRF, SYS-5037MC-H86RF, SYS-5037MR-H8TRF, SYS-5038MD-H8TRF, SYS-5038ML-H8TRF, SYS-5038MR-H8TRF, SYS-5039MC-H8TRF, SYS-5039MD8-H8TNR, SYS-5039MD18-H8TNR, SYS-5039MP-H8TNR, SYS-5039MS-H8TRF, SYS-6028U-E1CNR4T+, SYS-6028U-E1CNRT+, SYS-6028U-TNR4T+, SYS-6028U-TNRT+, SYS-6028U-TR4+, SYS-6028U-TR4T+, SYS-6028U-TRT+, SYS-6028U-TRTP+, SYS-6028UX-TR4, SYS-6029U-E1CR4, SYS-6029U-E1CR4T, SYS-6029U-E1CR25M, SYS-6029U-E1CRT, SYS-6029U-E1CRTP, SYS-6029U-TR4, SYS-6029U-TR4T, SYS-6029U-TR25M, SYS-6029U-TRT, SYS-6029U-TRTP, SYS-6029UZ-TR4+, SYS-8048B-TR4FT, SYS-8048B-TRFT
    Validated Chassis
    • CSE-417BE1C-R1K23JBOD, CSE-417BE1C-R1K28LPB, CSE-417BE1C-R1K28WB, CSE-417BE2C-R1K23JBOD, CSE-417BE2C-R1K28WB, CSE-417E16-R1400LPB, CSE-417E26-R1400LPB, CSE-418E16-R1K62B, CSE-418E16-R1K62B2, CSE-846A-R900B, CSE-846A-R1200B, CSE-846BA-R1K28B, CSE-846BA-R920B, CSE-846BE1C-R1K03JBOD, CSE-846BE1C-R1K23B, CSE-846BE1C-R1K28B, CSE-846BE2C-R1K03JBOD, CSE-846BE2C-R1K23B, CSE-846BE2C-R1K28B, CSE-846BE16-R1K28B, CSE-846BE16-R920B, CSE-846BE26-R1K28B, CSE-846BE26-R920B, CSE-846E16-R1200B, CSE-846E26-R1200B, CSE-846TQ-R900B, CSE-846TQ-R1200B, CSE-846XA-R1K23B, CSE-846XE1C-R1K23B, CSE-846XE2C-R1K23B, CSE-847A-R1400LPB, CSE-847BA-R1K28LPB, CSE-847BE1C-R1K28LPB, CSE-847BE1C-R1K28WB, CSE-847BE1C4-R1K23LPB, CSE-847BE2C-R1K28LPB, CSE-847BE2C-R1K28WB, CSE-847DE1C-R2K04JBOD, CSE-847DE2C-R2K04JBOD, CSE-847DE16-R1K28LPB, CSE-847E1C-R1K28JBOD, CSE-847E2C-R1K28JBOD, CSE-847E16-R1K28JBOD, CSE-847E16-R1K28LPB, CSE-847E16-R1K28WB, CSE-847E16-R1400LPB, CSE-847E16-R1400UB, CSE-847E16-RJBOD1, CSE-847E26-R1K28JBOD, CSE-847E26-R1K28LPB, CSE-847E26-R1K28WB, CSE-847E26-R1400LPB, CSE-847E26-RJBOD1, CSE-848A-R1K62B, CSE-848E16-R1K62B
    Physical Characteristics
    Outer Rail Extendable Length
    • 26.5" to 36.4"
    Mechanism
    • Ball-Bearing (Supports Round Hole Racks with Adapter MCP-290-00060-0N)
    Environmental Compliance
    Product Environmental Compliance
    • RoHS and REACH Compliant, Details Available Upon Request
