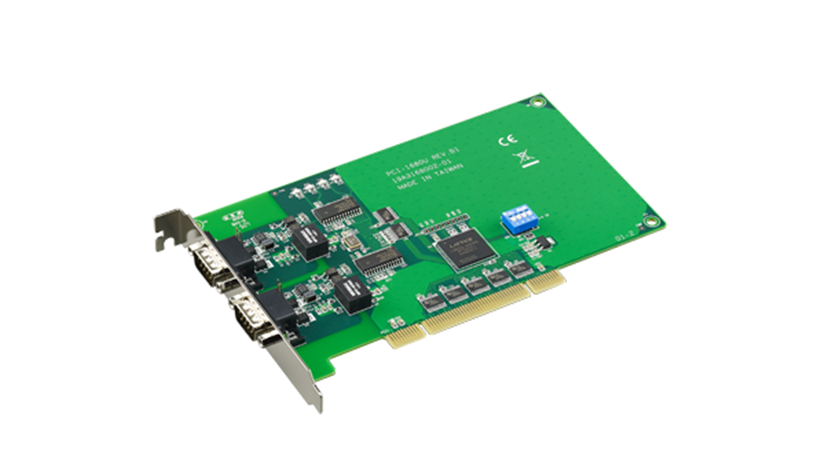

2-port CAN Uni-PCI COMM Card w/I

SKU: PCI-1680U-BE
GTIN (EAN/UPC): 4719879821093
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12889/image_1920?unique=9fe4ff9

kr 3,413.72 3413.7200000000003 NOK kr 3,413.72 VAT Excluded

kr 3,413.72 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The PCI-1680U-BE is a highly versatile circuit board designed for simultaneous operation on two separate CAN networks. This communication card supports high-speed transmission up to 1 Mbps and features optical isolation protection of 1000 VDC, ideal for industrial applications.

    Key Features

    • Operates on two CAN networks
    • High speed up to 1 Mbps
    • 1000 VDC optical isolation
    • Automated PCI PnP assignment
    • Includes Windows DLL library

    Description

    The PCI-1680U-BE is a 2-port CAN Uni-PCI communication card that operates across two separate CAN networks simultaneously. It offers high-speed transmission up to 1 Mbps and includes 1000 VDC optical isolation protection. Designed for professional use, it comes with a Windows DLL library and examples, and supports both 32-bit and 64-bit Windows and Linux systems. The card's I/O address is automatically assigned by PCI PnP, ensuring easy and efficient setup.

    Product Specifications

    Specification Details
    General
    Bus Type
    • PCI
    Isolation
    • 1kV
    Serial Connector
    • DB9 Male
    Serial Port Count
    • 2
    Serial Type
    • CAN
    Connectors
    • 2 x DB9 male connector
