Summary Description

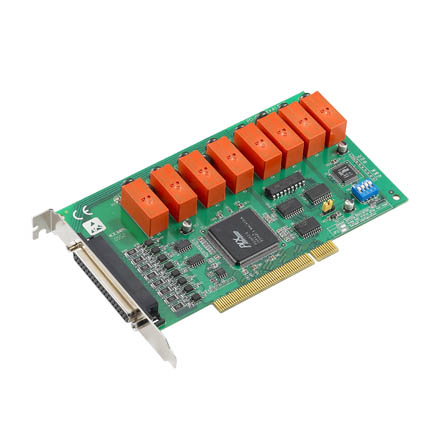

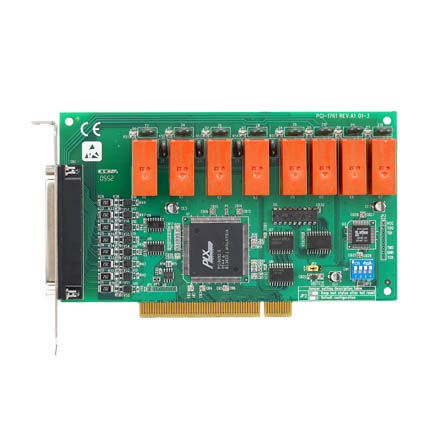

The PCI-1761-BE is a circuit board featuring 8 relay output channels and 8 isolated digital input channels. It includes LED indicators, Form C and Form A type relays, and high-voltage isolation.
Key Features
- ISA-Compatible with PCL-725
- 8 relay output channels
- 8 isolated digital input channels
- LED indicators for relays
- Retains output values on reset
- High-voltage isolation on inputs
Description
The PCI-1761-BE circuit board is ISA-compatible with PCL-725, featuring 8 relay output channels and 8 isolated digital input channels. It is equipped with LED indicators and high-voltage isolation for the input channels. The board retains relay output values upon system reset and includes a male DB37 matching connector.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Programming Language |
|
| Digital Input | |
| Channels |
|
| Isolation Protection |
|
| Relay Output | |
| Channels |
|
| Contact Rating (Resistive) |
|
