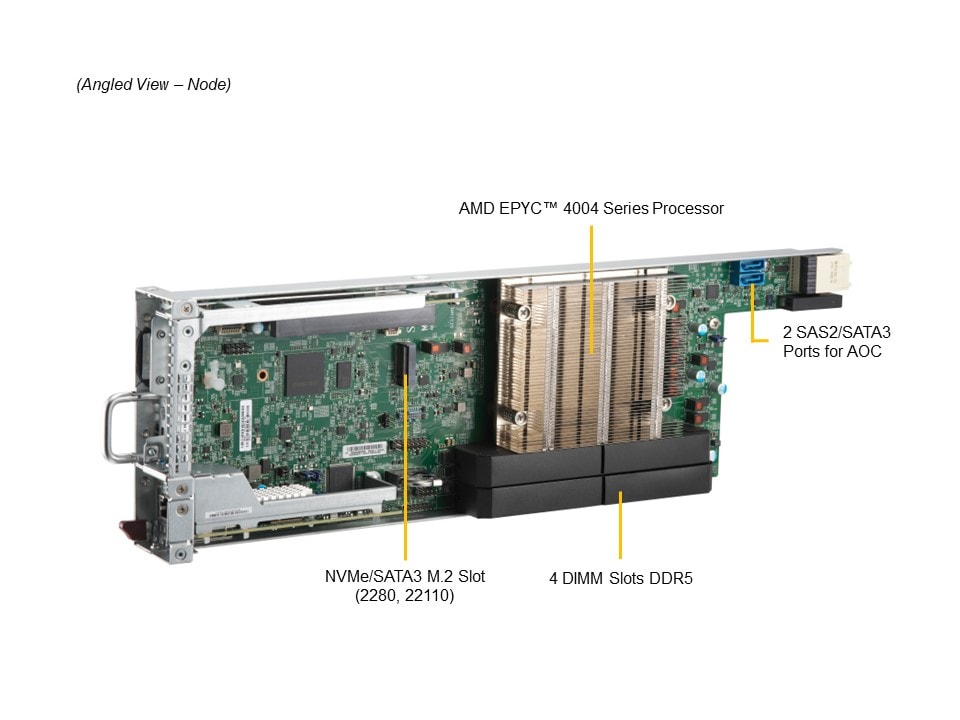

H13SRD-F, MCP-220-93810-0N for RMA/Spare single node

PIO-3015MR-H8TNR-NODE
https://safeconsulting.no/web/image/product.template/13545/image_1920?unique=ce410c7

kr 5,376.51 5376.51 NOK kr 5,376.51

kr 5,376.51

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro 3015MR-H8TNR Microcloud Server is designed for high-performance computing needs with AMD EPYC™ 4004 processors, up to 192GB DDR5 memory, and redundant power supplies. It is ideal for cloud and social media applications.

    Key Features

    • 8 sets of AMD EPYC™ 4004 Series Processor
    • AMD Knoll - Integrated I/O Controller Hub
    • 8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
    • 8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot (MicroLP upgradeable)
    • 8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
    • 2200W Redundant 80+ Titanium Level high-efficiency power supplies

    Key Applications

    • Cloud Computing
    • Web/Collocation Services
    • Web Cache, CDN, Video Streaming
    • Social Networking, Downloads
    • Corporate - WINS, DNS, Print, Login

    Description

    The Supermicro 3015MR-H8TNR is powered by AMD EPYC™ 4004 series processors, offering robust performance for cloud computing and social networking. It features 8 nodes, each supporting up to 192GB DDR5 memory, PCIe 5.0 slots, and dual NVMe/SATA drive bays. This server is equipped with redundant 2200W Titanium level power supplies, ensuring high efficiency and reliability in demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -3015MR-H8TNR
    Motherboard
    Installed Motherboard
    • Super H13SRD-F
    Processor (per Node)
    CPU
    • Single Socket AM5 (LGA-1718)
    • AMD EPYC™ 4004 Series Processor
    Core Count
    • Up to 16C/32T; Up to 16MB Cache
    Note
    • Supports 65W - 170W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU (per Node)
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T4, L4, A2
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s non-ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices (per Node)
    NVMe
    • NVMe; (Native)
    Chipset
    • AMD Knoll - Integrated I/O Controller Hub
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    USB
    • 2 USB 2.0 ports
    • 1 Type-C port(front)
    Video
    • 1 port
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-938NH-R2K20BP2
    Dimensions and Weight
    Height
    • 5.21" (132 mm)
    Width
    • 17.26" (438 mm)
    Depth
    • 23.2" (589 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Gross Weight: 88 lbs (39.92 kg)
    • Net Weight: 62.2 lbs (28.21 kg)
    Available Color
    • No/A
    Front Panel
    LED
    • 8 Individual Node Status Indicators
    • Power Failure
    Buttons
    • Power On/Off
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x8 (in x16) LP slot
    • 1 PCIe 5.0 x8 MicroLP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays

    • (*SAS/SATA support may require additional storage controller and/or cables)
    M.2
    • 1 M.2 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 4 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    Total Output Power:
    • (for CCC only)
    • (for UL/cUL use only)

    Input:
    • 1200W: 100-127Vac
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2200W: 230-240Vac
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vdc-127Vdc)
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 183.3A / Min: 0A (220Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
    • Max: 183.33A / Min: 0A (230Vdc-240Vdc)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SRD-F8Super H13SRD-F Motherboard
    CSE-938NH-R2K20BP213U Chassis
    Add-on Card / Module
    AOM-BPN-938NH-P1AOM-BPN-938NH, Backplane module for 8-node Microcloud system
    AOM-LAN-MC8-P1AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
    AOM-PDB-PT938-LSG-P1AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
    AOM-PDB-PT938-RSG-P1AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWCD-0578-1OR2PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS-PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-0355L2RJ45 C5E 2ft Green With Cover
    CBL-0458L120 cm 30 pin to 30 pin Front control cable with tube. 28AWG
    CBL-CDAT-066218 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
    Riser Card
    RSC-S-6G581U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    Software
    SFT-OOB-LIC8License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0076V81U Proprietary CPU Heat Sink for AS -531MR-H8TNR MicroCloud Server
    Fan
    FAN-0213L4OR480x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
    FAN-0194L4-80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
    Drive Tray(s)
    MCP-220-93801-0BOR16Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
    MCP-220-00158-0B-Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray,RoHS
    MCP-220-00094-0B16Black gen 6.5 hot-swap 3.5 inch HDD Tray
    *Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Control Board
    MCP-280-93801-0B1Control panel module
    *Rail Set
    MCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2" W
    *Air Shroud
    MCP-310-93805-0B16Mylar air shroud for 2-DIMMs (quick install on DIMM latch)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-1230T4S1-100-For AOC-S3908L-H8iR-16DD
    CBL-SAST-0616-For AOC-S3008L-L8i
    Drive Tray(s)
    MCP-220-00158-0B1~16Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
    MCP-220-93801-0B1~16Black gen 6 hot-swap 3.5-to-2.5 HDD tray
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    GPU
    GPU-NVL4-NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
    GPU-NVA2-NC-NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
    GPU-NFR-NVTT4-NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
    GPU Air Shroud
    MCP-310-93807-0B-Mylar air shroud for GPU on MicroCloud 938NH,RoHS
    Network Card(s)
    AOC-CGP-i2-Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LP
    AOC-CTGS-i2T-O-MicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
    AOC-CTG-i2S-Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LP
    Software
    SFT-DCMS-Single-DataCenter Management Package (per node license)
    Storage Controller Card(s)
    AOC-S3008L-L8i-Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    AOC-S3908L-H8IR-16DD-8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
