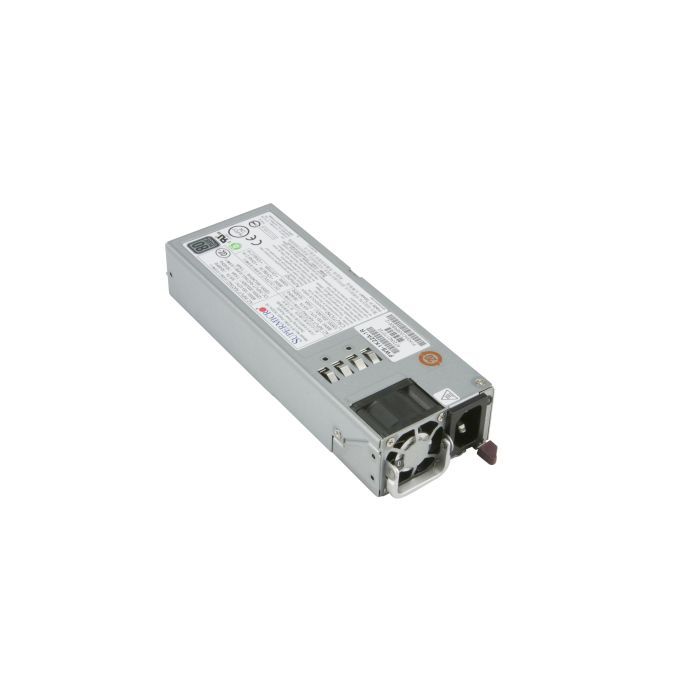

1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5

PWS-1K22A-1R
https://safeconsulting.no/web/image/product.template/11958/image_1920?unique=4175d88

kr 3,516.40 3516.4 NOK kr 3,516.40

kr 3,516.40

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-1K22A-1R is a high-efficiency power supply unit, boasting 80 Plus Titanium certification. It delivers 800W/1200W power at 96% efficiency and includes features like active power factor correction, and a card edge connector for seamless integration with compatible Supermicro 1U systems. The power supply offers protection against over voltage, over current, and short circuits, ensuring your hardware's reliability. Additionally, it supports hot-swap replacement to minimize system downtime and complies with RoHS requirements.

    Key Features

    • Card Edge Connector for Backplane Connectivity
    • PMBus 1.2 Support
    • Short Circuit Protection
    • Over Voltage Protection
    • Supermicro Certified
    • 80 Plus Titanium
    • Flexible Redundancy Control

    Key Applications

    • Servers
    • Data centers
    • High-performance computing
    • Enterprise applications
    • Virtualization environments
    • Network appliances

    Description

    The Supermicro PWS-1K22A-1R is an 80 Plus Titanium power supply capable of supplying 800W/1200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 800W / 1200W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 73.5 x 40 x 203 mm
    +12V
    • 66.7A/100A
    Input Voltage Range
    • 100-127Vac/200-240Vac
    Input Frequency Range
    • 50-60Hz
    Output Type
    • Gold Finger
    PFC
    • Yes
    Voltage / Current
    • Yes
    Energy Efficiency
    • 96%
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • AS-1124US-TNRP
    • SYS-1029U-TN12RV
