  2. 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac

1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac

PWS-1K23A-SQ
https://safeconsulting.no/web/image/product.template/11959/image_1920?unique=68add06

kr 5,550.27 5550.27 NOK kr 5,550.27

kr 5,550.27

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

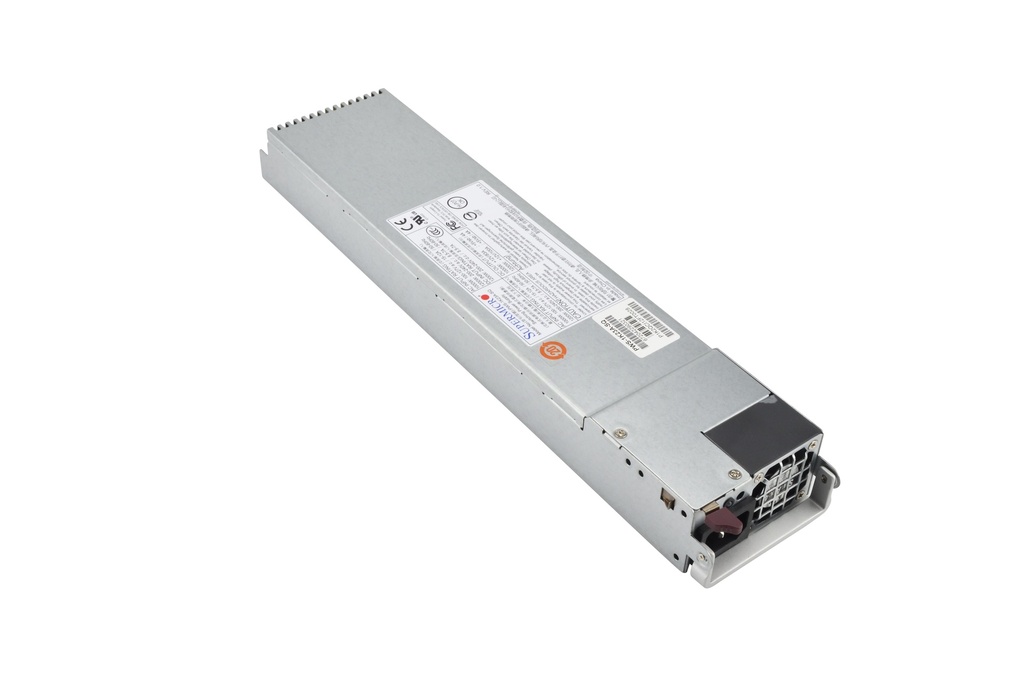

    The Supermicro PWS-1K23A-SQ is a high-efficiency power supply offering 1000W/1200W output. It includes active PFC and supports a full range of input voltages. Designed for 1U servers, it provides redundancy for power failure protection and hot-swap capability to minimize downtime. Protective circuitry safeguards against over voltage, over current, and short circuits. RoHS compliant and Supermicro certified with a mean-time between failure of over 200,000 hours.

    Key Features

    • Active PFC
    • Hot-swap capability
    • 96% efficiency
    • Redundant design for reliability
    • Over voltage, over current, and short circuit protection
    • 200,000+ hours MTBF
    • RoHS compliant
    • Supermicro certified
    • 1000W/1200W output power

    Key Applications

    • 1U servers
    • Data centers
    • Enterprise IT

    Description

    The Supermicro PWS-1K23A-SQ is capable of supplying 1000W/1200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 1000W / 1200W
    Type
    • Module
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 76 x 336 x 40 mm
    +5V
    • No/A
    +12V
    • 83A (100 -127 Vac) 100A (200-240 Vac)
    +3.3V
    • No/A
    5V Standby
    • 4A
    Input Voltage Range
    • 100-127Vac / 1000W 200-240Vac / 1200W 200-240Vdc / 1200W (for CCC only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-127Vac / 15 – 12A 200-240Vac / 8.5 – 7A 200-240Vdc / 8.5 – 7A (for CCC only)
    Output Type
    • Gold Finger (19 Pair Connector)
    8Pin / 4Pin (12V) Connector
    • No/A
    PFC
    • No/A
    Voltage / Current
    • Yes
    Energy Efficiency
    • 96%+ Efficiency
    80 Plus Certification
    • No/A
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
