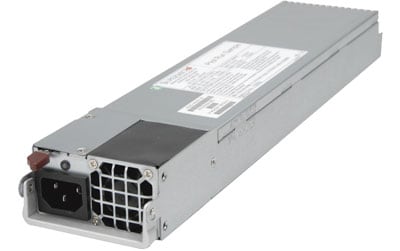

AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2
Summary Description
Key Features
- Lightweight at 1.67 kg
- Reverse airflow design
- 2000W power supply unit
- Supports PMBus 1.2
- 1U form factor
- Titanium efficiency
- Redundant functionality
Key Applications
- High-efficiency redundant server power supplies
- Systems using reverse airflow for thermal management
- Servers needing PMBus power monitoring
Description
The PWS-2K04F-1R is a 1U form factor, 2000W Titanium Redundant Power Supply unit with an efficiency rating designed to enhance energy utilization in server configurations. This unit is capable of delivering 1000W (100 - 127Vac), 1800W (200 - 220Vac), 1980W (220 - 230Vac), 2000W (200 - 240Vac), and supports various output voltages: 12V (83.3A / 150A / 165A / 166.7A / 166.7A) and 5v Standby (1A). Its redundant functionality ensures uninterrupted power supply, while PMBus 1.2 support provides sophisticated power management and monitoring capabilities. The unit's reverse airflow design helps in optimizing cooling in select server setups, and its compact dimensions (336mm length, 76mm width, and 40mm height) and light weight (1.67 kg) make it easy to install and manage.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| SKU |
|
| Output |
|
| Redundant |
|
| Weight |
|
| 5V |
|
| 12V |
|
| 3.3V |
|
| 5vStandby |
|
| +12V Standby |
|
| -12V |
|
| Output Type |
|
| 80 Plus Certification |
|
| PM Bus |
|
| Length |
|
| Width |
|
| Height |
|
