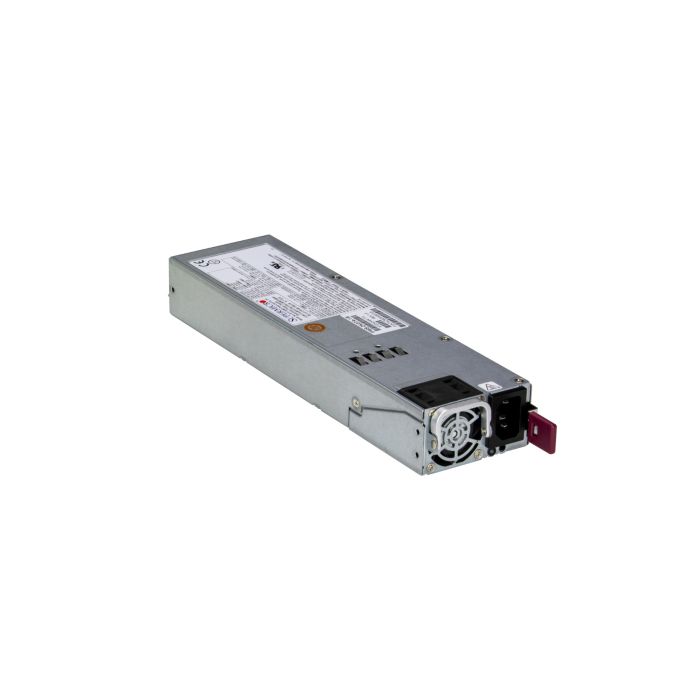

1U 2000W 90-264Vac/47-63Hz, wide DC input 180Vdc-300Vdc, 12V

PWS-2K07A-1R
https://safeconsulting.no/web/image/product.template/11971/image_1920?unique=68add06

kr 5,235.33 5235.33 NOK kr 5,235.33

kr 5,235.33

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro PWS-2K07A-1R is a superior 2000W power supply with over 96% efficiency. Designed for Supermicro 1U systems, it features a card edge connector and comprehensive protective circuitry. Ensuring reliability, it has an MTBF of over 200,000 hours and supports hot-swap replacement to minimize downtime. Certified for RoHS compliance.

    Key Features

    • Titanium 96%+ Efficiency
    • PMBus 1.2 Support for Remote Management
    • Wide DC input 180Vdc~300Vdc
    • Supermicro Certified

    Key Applications

    • Supermicro 1U Systems
    • Data Centers
    • High-Performance Computing
    • Enterprise Servers

    Description

    The Supermicro PWS-2K07A-1R an 80 Plus Titanium power supply capable of supplying 2000W output power greater than 96% efficiency. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 2000W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 73.5 x 40 x 265 mm
    +5V
    • No/A
    +12V
    • 83A (1000W) 150A (1800W) 165A (1980W) 166A (2000W)
    +3.3V
    • No/A
    5V Standby
    • No/A
    +12V Standby
    • 3.5A
    Input Voltage Range
    • 100-127Vac: 1000W / 200-220Vac: 1800W / 220-230Vac: 1980W / 230-240Vac: 2000W / 220-240Vac: 2000W (for UL only) / 230-240Vdc: 2000W (for CQC only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-127Vac: 12-9A / 200-220Vac: 10–9.8A / 220-230Vac: 10–9.8A / 230-240Vac: 10-9.8A / 220-240Vac: 11–10A (for UL only) / 230-240Vdc: 10-9.8A (for CQC only)
    Output Type
    • Gold Finger
    8Pin / 4Pin (12V) Connector
    • No/A
    PFC
    • No/A
    Energy Efficiency
    • 96%+ Efficiency
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
