1U 2000W 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc

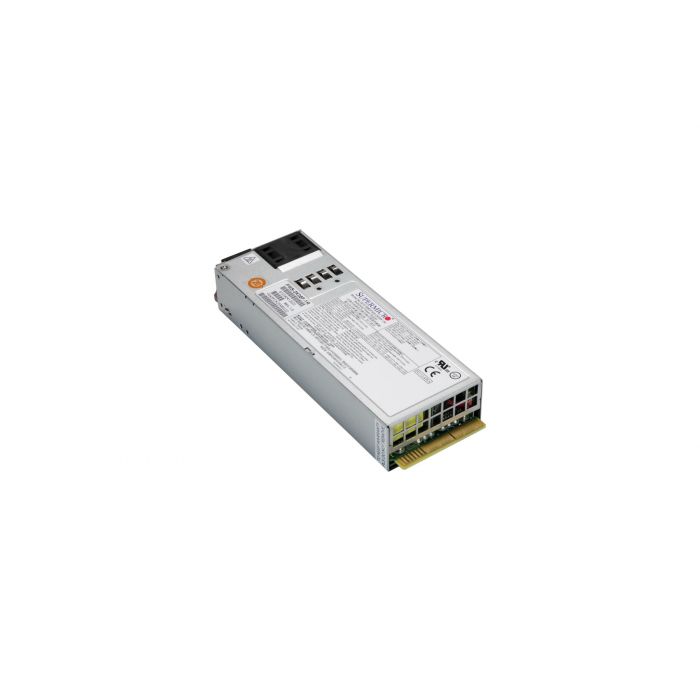

PWS-2K08F-1R
https://safeconsulting.no/web/image/product.template/11972/image_1920?unique=5e77b27

kr 4,961.63 4961.63 NOK kr 4,961.63

kr 4,961.63

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-2K08F-1R provides reliable 2000W output power with 96% efficiency, featuring active power factor correction (PFC) and automatic AC input correction for various voltages. Designed for Supermicro 1U systems, it includes protective circuitry for over voltage, over current, and short circuiting. Enjoy a mean-time between failure (MTBF) of over 200,000 hours and an LED indicator for PSU conditions. It supports redundancy and hot-swap replacement to minimize system downtime.

    Key Features

    • PMBus 1.2 Support for Remote Management
    • Active Power Factor Correction
    • Optimized for 1U Server
    • 80 Plus Titanium Certification
    • Supermicro Certified
    • Protective Circuitry for Over Voltage, Over Current, and Short Circuiting
    • Redundant and Hot-Swap Capabilities

    Key Applications

    • 1U server power supply
    • Redundant power configurations
    • High efficiency power supply

    Description

    The Supermicro PWS-2K08F-1R is an 80Plus Titanium power supply capable of supplying 2000W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 2000W
    Type
    • Single
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 73.5 x 40 x 203 mm
    +5V
    • -
    +12V
    • 83A (100-127Vac) 166A (200-240Vac)
    +3.3V
    • -
    +12V Standby
    • 2.1A
    Input Voltage Range
    • 1000W: 100-127Vac 2000W: 200-240Vac 2000W: 200-240Vdc (for UL only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-127Vac / 12 – 9A 200-240Vac / 10 – 9.8A 200-240Vdc / 11 – 10A (UL only)
    Output Type
    • Gold Finger
    8Pin / 4Pin (12V) Connector
    • Yes, PM Bus 1.2 support
    PFC
    • 96%+
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
