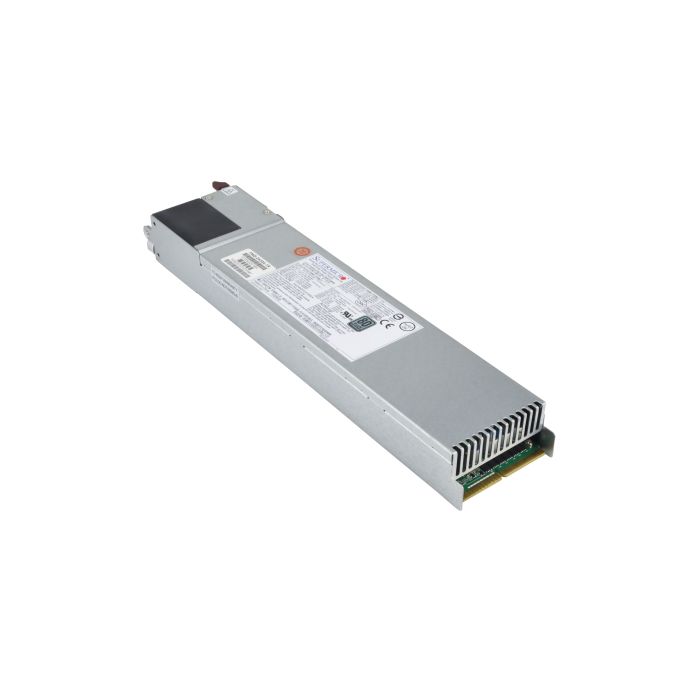

1U 2200W Redundant Power Supply Titanium, 76(W) X 40(H) X 36

PWS-2K20A-1R
https://safeconsulting.no/web/image/product.template/11977/image_1920?unique=68add06

kr 5,161.59 5161.59 NOK kr 5,161.59

kr 5,161.59

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro PWS-2K20A-1R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. It includes active power factor correction (PFC) and automatically corrects AC input for a full range of voltages. The unit protects your hardware with over voltage, over current, and short circuit protection. It offers LED indicators for power status and supports hot-swap replacement to eliminate system downtime.

    Key Features

    • Flexible Redundancy Control
    • PMBus 1.2 Support for Remote Management
    • 80 Plus Titanium
    • Supermicro Certified

    Key Applications

    • Data centers
    • Server farms
    • Enterprise environments
    • High-performance computing

    Description

    The Supermicro PWS-2K20A-1R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Brand
    • Supermicro
    Total Power Output
    • 2200W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 76 x 336 x 40 mm
    +5V
    • -
    +12V
    • 100A / 1200W 150A / 1800W 165A / 1920W 174.17A / 2090W 183.3A / 2200W (for UL/cUL only)
    +3.3V
    • -
    5V Standby
    • 1A
    Input Voltage Range
    • 100-127Vac / 1200W 200-220Vac / 1800W 220-230Vac / 1980W 230-240Vac / 2090W 220-240Vac / 2200W (for UL/cUL only) 200-220Vac / 2090W (for UL/cUL only) 230-240Vdc / 2090W (for CQC only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 1200W: 14 -11A 1800W: 10 – 9.5A 1980W: 10 – 9.8A 2090W: 10 – 9.8A 2200W: 12 -11A (for UL/cUL only) 2090W: 14 -11A (for UL/cUL only) 2090W: 10 – 9.8A (for CQC only)
    Output Type
    • Gold Finger (27 Pair Connector)
    8Pin / 4Pin (12V) Connector
    • -
    PFC
    • -
    Voltage / Current
    • PM Bus 1.2 Support
    Energy Efficiency
    • 96%+ Efficiency
    80 Plus Certification
    • 80 Plus Titanium
    Search Terms
    • No
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • SYS-2029TP-HC0R, SYS-2029TP-HC1R, SYS-2029TP-HTR, SYS-5039MP-H8TNR, SYS-5049A-TR, SYS-6029TP-HC0R, SYS-6029TP-HC1R, SYS-6029TP-HTR, SYS-7049GP-TRT, SYS-F619H6-FT, SYS-F619P2-FT, SYS-F619P2-FT+, SYS-F619P2-RC0, SYS-F619P2-RC1, SYS-F619P2-RT, SYS-F619P2-RTN, SYS-F619P3-FT
    Validated Chassis
    • CSE-217HQ+-R2K20BP2, CSE-747BTS-R2K20BP, CSE-827HQ+-R2K20BP2
