  2. (EOL)2U 2200W 90-264VAC/47-63Hz,or wideDC input180Vdc~300Vdc

(EOL)2U 2200W 90-264VAC/47-63Hz,or wideDC input180Vdc~300Vdc

PWS-2K21A-2R
https://safeconsulting.no/web/image/product.template/11978/image_1920?unique=68add06

kr 5,199.08 5199.08 NOK kr 5,199.08

kr 5,199.08

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

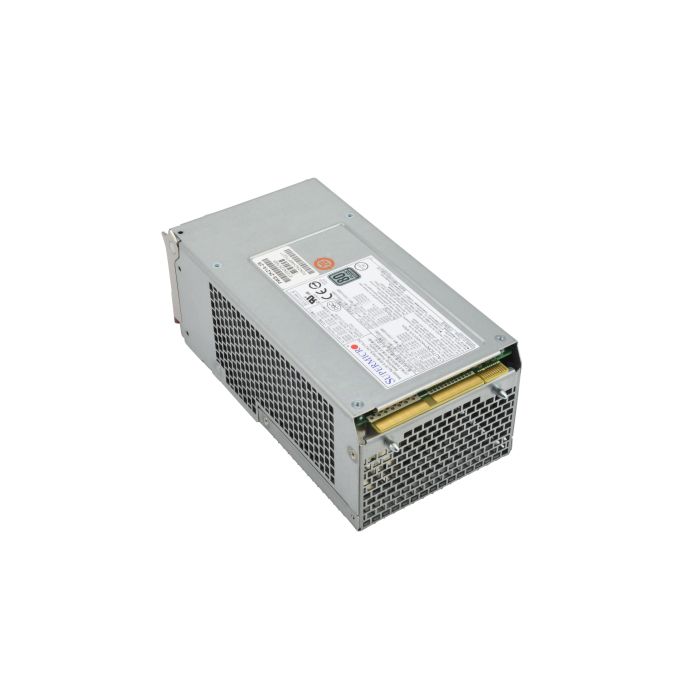

    The Supermicro PWS-2K21A-2R power supply offers 2200W output at 96% efficiency. It features active power factor correction and automatic AC input correction for voltage ranges. Designed for Supermicro 2U servers, it includes protective circuitry against over voltage, over current, and short circuiting. Additionally, it supports hot-swap replacement to minimize system downtime and complies with RoHS requirements.

    Key Features

    • PMBus 1.2 Support for Remote Management
    • Automatic AC Input Correction
    • Over Voltage, Over Current, and Short Circuit Protection
    • Active Power Factor Correction (PFC)
    • Compliance with RoHS Requirements
    • Supermicro Certified
    • 80 Plus Titanium
    • Redundant and Hot-Swappable

    Key Applications

    • Optimized for 2U Server
    • Support remote management
    • High-efficiency power supply
    • Redundant power

    Description

    The Supermicro PWS-2K21A-2R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 2U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 2200W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 2U
    Dimension (W x H x L)
    • 106.5 x 203.3 x 82.4 mm
    +5V
    • No/A
    +12V
    • 100A (1200W) 165A (1980W) 166.6A (2000W) 174.17A (2090W) 183.33A (2200W)
    +3.3V
    • No/A
    5V Standby
    • No/A
    Input Voltage Range
    • 100-127Vac / 1200W 200-220Vac / 1800W 220-230Vac / 1980W 230-240Vac / 2090W (TUV/CB) 220-240Vac / 2200W (UL/cUL only) 180-220Vac / 2090W (UL/cUL only) 230-240Vdc / 2090W (CQC only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-127Vac / 12 – 9.5A 200-220Vac / 10 – 9.5A 220-230Vac / 10 – 9.5A 230-240Vac / 10 – 9.8A 220-240Vac / 11.8 – 9.6A (UL/cUL only)
    Output Type
    • Gold Finger
    8Pin / 4Pin (12V) Connector
    • No/A
    PFC
    • No/A
    Voltage / Current
    • Yes
    Energy Efficiency
    • 96% Peak
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • SYS-4028GR-TVRT, SYS-4028GR-TXR, SYS-4028GR-TXRT, SYS-4029GP-TVRT
