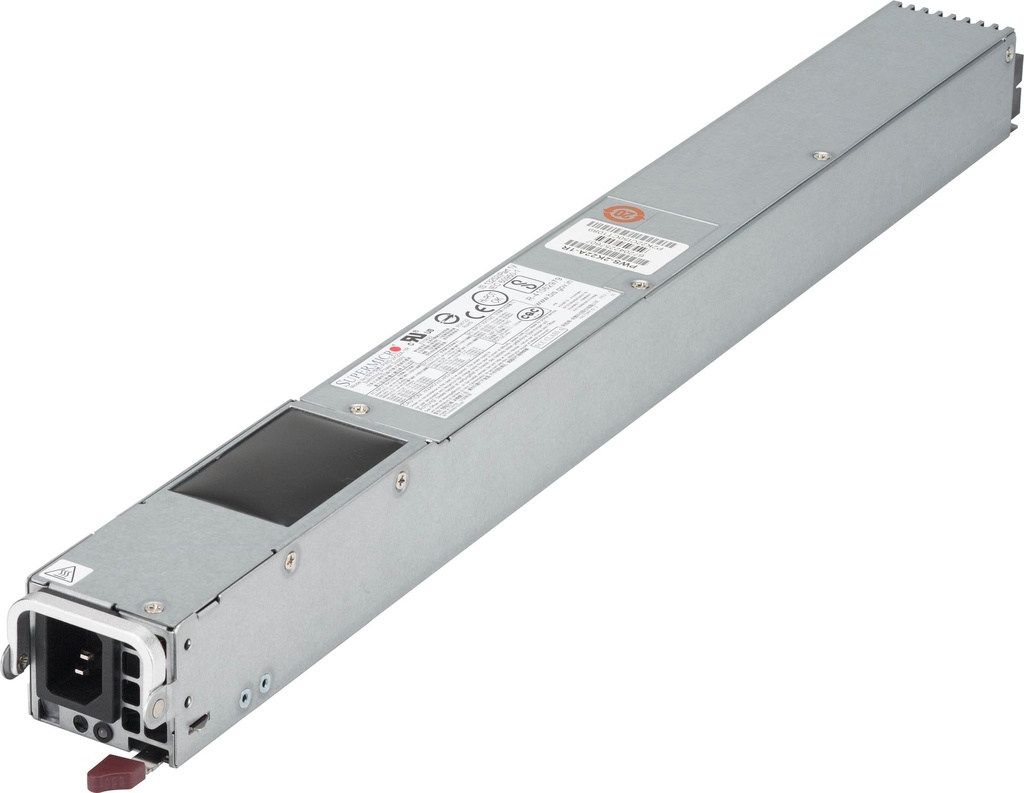

1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48

PWS-2K22A-1R
https://safeconsulting.no/web/image/product.template/11980/image_1920?unique=4175d88

kr 6,318.54 6318.54 NOK kr 6,318.54

kr 6,318.54

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-2K22A-1R delivers 2200W output power at 96% efficiency, with features like active power factor correction and a card edge connector for 1U systems. It includes protective circuitry against over voltage, over current, and short circuiting, ensuring a mean-time between failure (MTBF) of over 200,000 hours. The PSU supports hot-swap replacement and compliance with RoHS requirements. LED indicators notify users of normal/abnormal conditions.

    Key Features

    • Active Power Factor Correction
    • 96% Efficiency
    • 2200W Output Power
    • 80 Plus Titanium Certification
    • Short Circuit Protection
    • Over Voltage Protection
    • PMBus 1.2 Support
    • Redundant Power Supply
    • LED Status Indicators
    • Validated with Multiple Systems
    • RoHS Compliant
    • Hot-swap Capability
    • Over Current Protection
    • Flexible Redundancy Control

    Key Applications

    • Remote Management Support
    • High Efficiency Power Supply
    • Redundant Power Supply
    • Supports 1U Systems
    • Reliability for Servers
    • Scalable Server Power
    • High MTBF
    • Hot-swap Replacement

    Description

    The Supermicro PWS-2K22A-1R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 2200W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 480 x 45 x 40 mm
    +5V
    • -
    +12V
    • 100A (100-127Vac)
    • 150A (200-220Vac)
    • 165A (220-230Vac)
    • 174.17A (230-240Vac)
    • 174.17A (180-220Vac) (for UL/cUL safety only)
    • 183.33A (220-240Vac) (for UL/cUL safety only)
    • 174.17A (230–240Vdc) (for CQC safety only)
    +3.3V
    • -
    5V Standby
    • -
    Input Voltage Range
    • 1200W (100-127Vac)
    • 1800W (200-220Vac)
    • 1980W (220-230Vac)
    • 2090W (230-240Vac)
    • 2090W (180-220Vac) (for UL/cUL safety only)
    • 2200W (220-240Vac) (for UL/cUL safety only)
    • 2090W (230-240Vdc) (for CQC safety only)
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 14 – 11A (100-127Vac)
    • 10 – 9.5A (200-220Vac)
    • 10 – 9.8A (220-230Vac)
    • 10 – 9.8A (230-240Vac)
    • 14 – 11A (180-220Vac) (for UL/cUL safety only)
    • 12 – 11A (220-240Vac) (for UL/cUL safety only)
    • 10 – 9.8A (230-240Vdc) (for CQC safety only)
    Output Type
    • Backplane Connector
    8Pin / 4Pin (12V) Connector
    • -
    PFC
    • -
    Voltage / Current
    • PM Bus 1.2
    Energy Efficiency
    • 96%+ Efficiency
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • AS-2123BT-HNC0R
    • AS-2123BT-HTR
    • AS-2124BT-HNTR
    • AS-2124BT-HTR
    • SYS-2028BT-HNC0R+
    • SYS-2028BT-HNC1R+
    • SYS-2028BT-HNR+
    • SYS-2028BT-HTR+
    • SYS-2029BT-DNC0R
    • SYS-2029BT-HNC0R
    • SYS-2029BT-HNC1R
    • SYS-2029BT-HNR
    • SYS-2029BT-HNTR
    • SYS-2029BT-HTR
    • SYS-6028BT-HNC0R+
    • SYS-6029BT-DNC0R
    • SYS-6029BT-HNC0R
    Validated Chassis
    • CSE-217BHQ+-R2K22BP
    • CSE-827BHD+-R2K22BP
