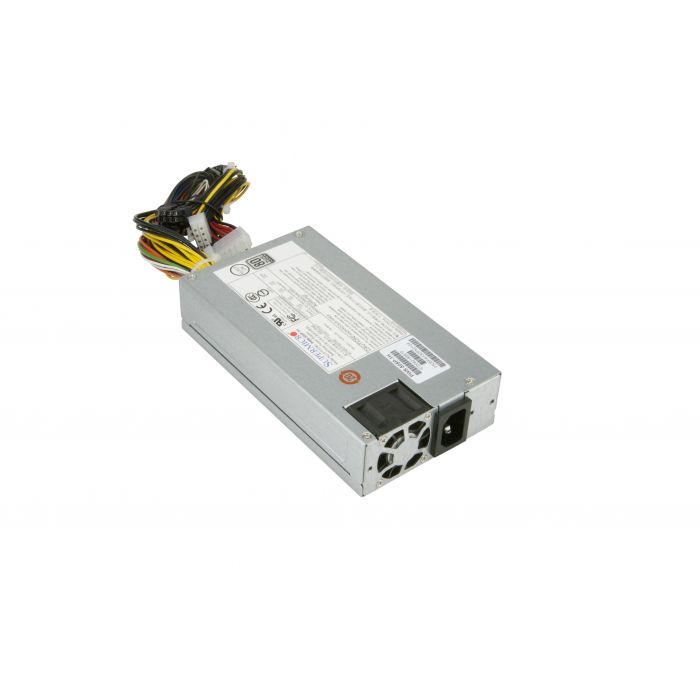

1U 500W Multi-output, Platinum Level W/ PMbus 24pin

PWS-505P-1H
https://safeconsulting.no/web/image/product.template/11946/image_1920?unique=4175d88

kr 2,074.13 2074.13 NOK kr 2,074.13

kr 2,074.13

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-505P-1H offers a 500W power output with high efficiency for 1U servers. It includes active power factor correction (PFC) for full range AC input correction and operates quietly under heavy loads. The unit features protective circuitry for over voltage, over current, and short circuiting, and meets RoHS requirements. Supermicro certification ensures quality.

    Key Features

    • Quiet fan for cooling
    • Protective circuitry for over voltage, over current, and short circuiting
    • RoHS compliant
    • Active power factor correction (PFC)
    • 500W power output
    • Certified by Supermicro

    Key Applications

    • Supermicro 1U Servers
    • High Efficiency Power Supply
    • Quiet Operation Power Supply
    • RoHS Compliant Power Unit

    Description

    The Supermicro PWS-505P-1H is capable of 500W output power at high efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your Supermicro 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 500W
    Type
    • Single
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 100 x 40 x 180 mm
    +5V
    • 15A
    +12V
    • 41A
    +3.3V
    • 12A
    5V Standby
    • 3A
    Input Voltage Range
    • 100-240Vac
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-240Vac: 6.6A
    Output Type
    • 24Pin ATX Cable Output
    8Pin / 4Pin (12V) Connector
    • 8Pin/4+4Pin
    PFC
    • Yes
    Voltage / Current
    • Yes
    Energy Efficiency
    • 92%+
    80 Plus Certification
    • 80 Plus Platinum
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • SYS-1019D-14CN-FHN13TP, SYS-1019D-16C-FHN13TP, SYS-1019P-FHN2T, SYS-6018R-MD, SYS-6019P-MT
    Validated Chassis
    • CSE-514-505, CSE-515-505, CSE-523L-505B, CSE-813MF2TQC-505CB, CSE-813MFTQC-505CB, CSE-813MFTQC-505CB2
