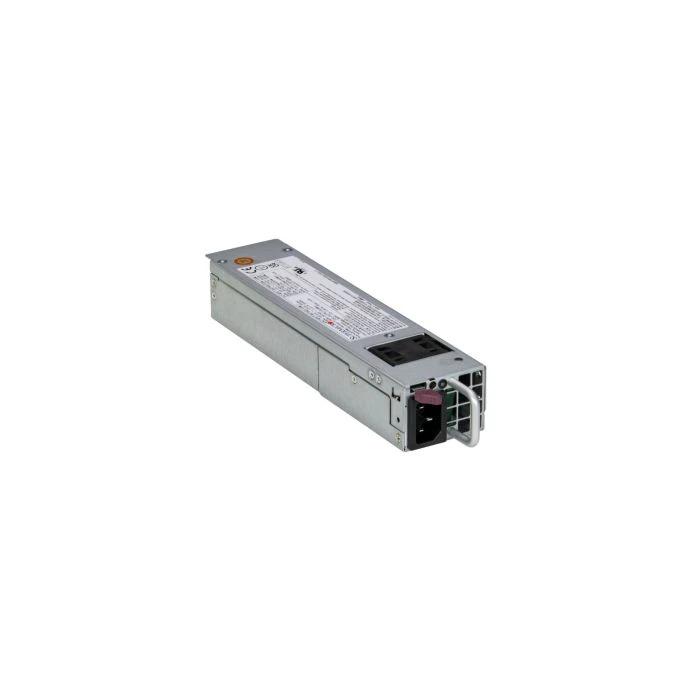

1U AC-DC 600W,AC inlet:C14,Titanium efficiency,Input:100-127

SKU: PWS-602A-1R
https://safeconsulting.no/web/image/product.template/12867/image_1920?unique=9fe4ff9

kr 2,460.33 2460.33 NOK kr 2,460.33 VAT Excluded

kr 2,460.33 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-602A-1R provides up to 600W high output for your Supermicro 1U server system. It features PMBus 1.2 support for remote management and flexible redundancy control. The power supply is 80 Plus Titanium certification and active PFC for high efficiency.

    Key Features

    • 600W High Output
    • 80 Plus Titanium Certified
    • PMBus 1.2 Remote Management
    • 1U Form Factor
    • Redundant Power Supply

    Key Applications

    • Enterprise Servers
    • Data Centers

    Description

    The Supermicro PWS-602A-1R provides up to 600W high output for your Supermicro 1U server system. It features PMBus 1.2 support for remote management and flexible redundancy control. The power supply is 80 Plus Titanium certification and active PFC for high efficiency.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 600W
    Type
    • Redundant
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 54.5 x 40.25 x 220 mm
    +5V
    • No/A
    +12V
    • 50A
    +3.3V
    • No/A
    5V Standby
    • 4A
    Input Voltage Range
    • 100-127Vac: 600W / 200-240Vac: 600W / 240Vdc: 600W
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 100-127Vac: 7-5.5A / 200-240Vac: 3.3-2.7A / 240Vdc: 2.7A
    Output Type
    • Gold Finger
    PFC
    • No/A
    Voltage / Current
    • No/A
    Energy Efficiency
    • No/A
    80 Plus Certification
    • 80 Plus Titanium
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
