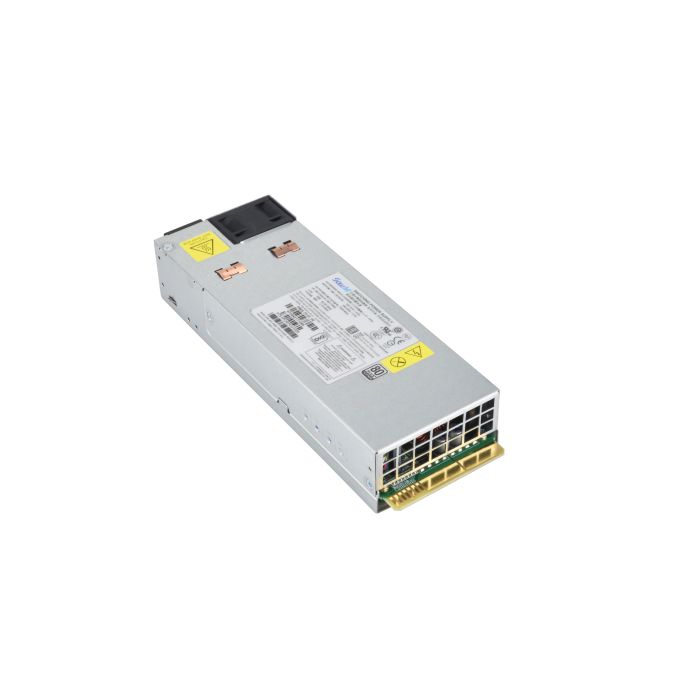

1U 750W Redundant Platinum Single Output Power Supply w/Pmbu

PWS-751P-1R
https://safeconsulting.no/web/image/product.template/11953/image_1920?unique=4175d88

kr 2,032.92 2032.92 NOK kr 2,032.92

kr 2,032.92

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro PWS-751P-1R is a high-efficiency power supply with 80 Plus Platinum certification, capable of delivering 750W output power at 94% efficiency. It features active power factor correction (PFC), over voltage, over current, and short-circuit protection, and a card edge output for 2x25 card edge connectors. The unit has an MTBF of over 250,000 hours, an LED indicator, hot-swap capabilities, and is compliant with RoHS requirements.

    Key Features

    • Over Voltage, Over Current, and Short-circuit Protection
    • MTBF of Over 250,000 Hours
    • Supermicro Certified
    • Card Edge Output for 2x25 Card Edge Connector
    • 80 Plus Platinum Efficiency
    • Redundant PSU with PMBus 1.2 Support for Remote Management
    • Active Power Factor Correction (PFC)
    • LED Indicator for Normal/Abnormal Conditions

    Key Applications

    • Supermicro Ultra Server
    • Data Centers
    • Network Attached Storage
    • High-Performance Computing
    • Enterprise Servers
    • Web Servers
    • Database Servers
    • Cluster Servers
    • Virtualized Environments

    Description

    The Supermicro PWS-751P-1R is an 80 Plus Platinum level redundant power supply capable of continuously supplying 750W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro Ultra server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Product Specifications

    Specification Details
    General
    Total Power Output
    • 750W
    Type
    • Module
    Type of Power Supply
    • Power Supply
    Form Factor
    • 1U
    Dimension (W x H x L)
    • 73.5 x 40 x 203mm
    +5V
    • No/A
    +12V
    • 62.5A
    +3.3V
    • No/A
    5V Standby
    • No/A
    Input Voltage Range
    • 100-127Vac; 200-240Vac
    Input Frequency Range
    • 50-60Hz
    Input Current Range
    • 9.5A; 4.5A
    Output Type
    • Gold Finger (25 Pair Connector)
    8Pin / 4Pin (12V) Connector
    • No/A
    PFC
    • Yes
    Voltage / Current
    • Yes
    Energy Efficiency
    • 94% Peak
    80 Plus Certification
    • 80 Plus Platinum
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
    Validated Systems
    • SSG-6129P-ACR12N4L, SYS-1028U-E1CR4+, SYS-1028U-E1CRTP+, SYS-1028U-TNR4T+, SYS-1028U-TNRT+, SYS-1028U-TNRTP+, SYS-1028U-TR4+, SYS-1028U-TR4T+, SYS-1028U-TRT+, SYS-1028UX-CR-LL1, SYS-1028UX-CR-LL2, SYS-1028UX-LL1-B8, SYS-1028UX-LL2-B8, SYS-1028UX-LL3-B8, SYS-1029U-E1CR4, SYS-1029U-E1CR4T, SYS-1029U-E1CR25M, SYS-1029U-E1CRT, SYS-1029U-E1CRTP, SYS-1029U-E1CRTP2, SYS-1029U-TR4, SYS-1029U-TR4T, SYS-1029U-TR25M, SYS-1029U-TRT, SYS-1029U-TRTP, SYS-1029U-TRTP2, SYS-1029UX-LL1-C16, SYS-1029UX-LL1-S16, SYS-1029UX-LL2-C16, SYS-1029UX-LL2-S16, SYS-1029UX-LL3-C16, SYS-1029UX-LL3-S16, SYS-6018U-TR4+, SYS-6018U-TR4T+, SYS-6018U-TRT+, SYS-6018U-TRTP+, SYS-6019U-TN4R4T, SYS-6019U-TN4RT, SYS-6019U-TR4, SYS-6019U-TR4T, SYS-6019U-TR25M, SYS-6019U-TRT, SYS-6019U-TRTP, SYS-6019U-TRTP2
    Validated Chassis
    • CSE-119UTS-R751P-T, CSE-819UTS-R751P-T
