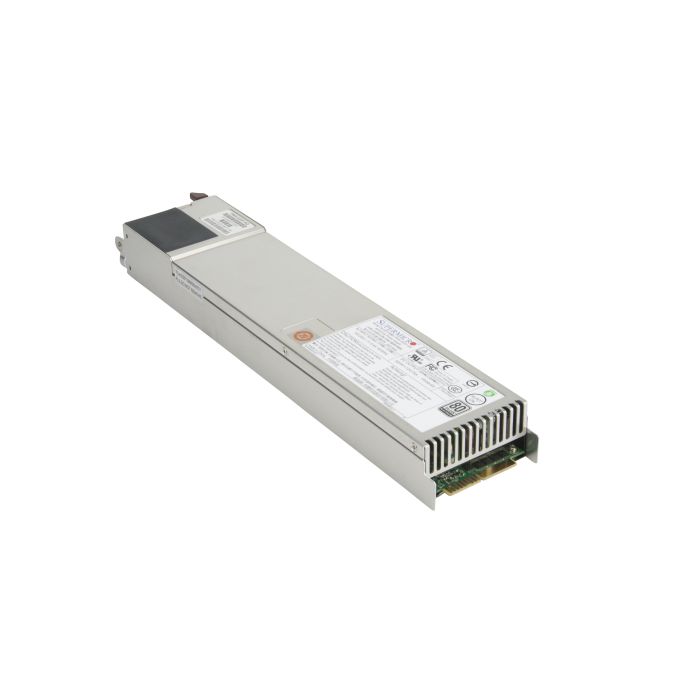

920W 1U Redundant PWS W/ Quiet Mode

SKU:	PWS-920P-SQ
Brand:	Supermicro

kr 3,147.13 3147.13 NOK kr 3,147.13 VAT Excluded

kr 3,147.13 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro PWS-920P-SQ is a top-tier 80 Plus Platinum certified redundant power supply delivering 920W at 91% efficiency. This unit supports active power factor correction, ensuring voltage compatibility across a range of AC inputs. With a mean-time between failure of over 150,000 hours, it guarantees reliability and system protection. The PSU is designed for hot-swap replacement, minimizing downtime. Embedded protective circuitry guards against over voltage, over current, and short circuiting, making it a robust choice for high-demand servers.

Key Features

Flexible Redundancy Control
PMBus 1.2 Support for Remote Management
Supermicro Certified
80 Plus Platinum

Key Applications

Supermicro 1U systems
High-demand server environments
Redundant power supply setups

Description

The Supermicro PWS-920P-SQ is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and super quiet fans for a more peaceful environment under normal operation. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 150,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Product Specifications

Specification	Details
General
Brand	Supermicro
Total Power Output	920W
Type	Module
Type of Power Supply	Power Supply
Form Factor	1U
Dimension (W x H x L)	76 x 40 x 336 mm
+5V	No/A
+12V	75A
+3.3V	No/A
5V Standby	4A
Input Voltage Range	100-240V
Input Frequency Range	50-60Hz
Input Current Range	11-4.4A
Output Type	Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector	No/A
PFC	Yes
Voltage / Current	Yes
Energy Efficiency	91% Peak
80 Plus Certification	80 Plus Platinum
Warranty	1 year warranty
Product Environmental Compliance	RoHS and REACH compliant, details available upon request
Validated Systems	SSG-2027B-DE2R24L, SSG-2027R-AR24, SSG-2027R-AR24NV, SSG-2027R-E1CR24L, SSG-2027R-E1CR24N, SSG-2027R-E1R24N, SSG-2028R-ACR24H, SSG-2028R-ACR24L, SSG-2028R-E1CR24H, SSG-2028R-E1CR24L, SSG-2028R-E1CR24N, SSG-5028R-E1CR12L, SSG-6027R-E1CR12L, SSG-6027R-E1CR12N, SSG-6028R-E1CR12H, SSG-6028R-E1CR12L, SSG-6028R-E1CR12N, SSG-6028R-E1CR12T, SSG-6038R-E1CR16H, SSG-6038R-E1CR16L, SSG-6038R-E1CR16N, SSG-6047R-E1R24L, SSG-6048R-E1CR24H, SSG-6048R-E1CR24L, SSG-6048R-E1CR24N, SYS-2027R-N3RF4+, SYS-2027R-N3RFT+, SYS-6027R-CDNRT+, SYS-6027R-N3RFT+, SYS-6028R-TDWNR
Validated Chassis	CSE-216BA-R920LPB, CSE-216BA-R920UB, CSE-216BA-R920WB, CSE-216BAC-R920LPB, CSE-216BE1C-R920LPB, CSE-216BE1C-R920WB, CSE-216BE2C-R920LPB, CSE-216BE2C-R920WB, CSE-216BE16-R920LPB, CSE-216BE16-R920WB, CSE-216BE26-R920LPB, CSE-216BE26-R920UB, CSE-216BE26-R920WB, CSE-219A-R920WB, CSE-826BA-R920LPB, CSE-826BA-R920UB, CSE-826BA-R920WB, CSE-826BAC4-R920LPB, CSE-826BAC4-R920WB, CSE-826BE1C-R920LPB, CSE-826BE1C-R920WB, CSE-826BE2C-R920LPB, CSE-826BE2C-R920WB, CSE-826BE16-R920UB, CSE-826BE16-R920WB, CSE-826BE26-R920LPB, CSE-826BE26-R920UB, CSE-826BE26-R920WB, CSE-829BTQ-R920WB, CSE-835TQ-R921B, CSE-836BA-R920B, CSE-836BE16-R920B, CSE-836BE26-R920B, CSE-846BA-R920B, CSE-846BE16-R920B, CSE-846BE26-R920B
