  2. Raritan PX3-1493V

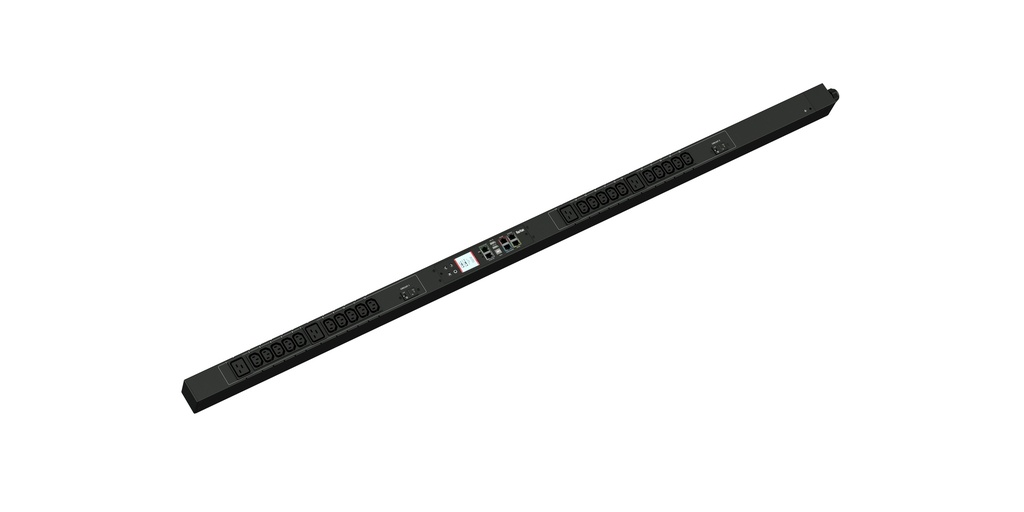

Raritan PX3-1493V

SKU: PX3-1493V
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13740/image_1920?unique=8816bc7

kr 9,687.90 9687.9 NOK kr 9,687.90 VAT Excluded

kr 9,687.90 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Raritan PX3-1493V. PDU types: Managed, Metered, Monitored, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: HTTPS, SNMPv3, SSH. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, ICES-003, FCC

    Key Features

    • Managed, Metered, Monitored 0U Black
    • LCD
    • 24 AC outlet(s) C13 coupler, C19 coupler

    Key Applications

    • Data centers
    • Server rooms
    • Enterprise IT solutions
    • Remote network monitoring
    • Environmental monitoring
    • High-density electrical installations

    Description

    PX3-1493V

    Monitored rack power distribution unit (0U [vertical], 7.4kVA, 24 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 20@ C13, 4@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking).; Field-Replaceable, hot-swappable network module with 536MHz processor, 16MB SPI Flash, and 64MB DDR2 RAM; Gigabit(10/100/1000) Ethernet port. Secondary, redundant Ethernet port. Redundant power sharing between network modules.Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 55mm x 1539mm (2.1in x 2.2in x 60.6in). Max Weight 5.5 kg. Maximum ambient temperature 60C at full load.

    Product Specifications

    Specification Details
    Design
    PDU types
    • Managed,Metered,Monitored
    Rack capacity
    • 0U
    Mounting
    • Vertical
    Product colour
    • Black
    Display
    • LCD
    Ports & interfaces
    AC outlets quantity
    • 24
    Power plug
    • IEC 60309
    AC outlet types
    • C13 coupler,C19 coupler
    Ethernet LAN (RJ-45) ports
    • 2
    USB ports quantity
    • 3
    Features
    Daisy chain
    • Yes
    Reset button
    • Yes
    LED indicators
    • Yes
    Cable length
    • 3
    Security algorithms
    • HTTPS,SNMPv3,SSH
    Power
    Nominal input voltage
    • 200-240
    AC input frequency
    • 50 - 60
    Maximum current
    • 32
    Output voltage
    • 200-240
    Load capacity
    • 7700
    Power protection features
    • Over current,Overload
    Certificates
    Compliance certificates
    • RoHS
    Certification
    • CE, ICES-003, FCC
    Operational conditions
    Operating altitude
    • 0 - 3000
    Weight & dimensions
    Width
    • 1539
    Depth
    • 55
    Height
    • 52
    Weight
    • 5500
    Packaging data
    Package weight
    • 8000
    Package width
    • 1815
    Package depth
    • 115
    Package height
    • 280
