Raritan PX3-4104R-V2. PDU types: Metered, Monitored, Rack capacity: 1U, Type: Three-phase. AC outlets quantity: 6 AC outlet(s), AC outlet types: C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: HTTPS, SNMPv3, SSH. Nominal input voltage: 380-415 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, ICES-003, FCC
Key Features
Three-phase Metered, Monitored 1U Black
LCD
6 AC outlet(s) C19 coupler
Key Applications
Data Centers
Server Rooms
Network Closets
Description

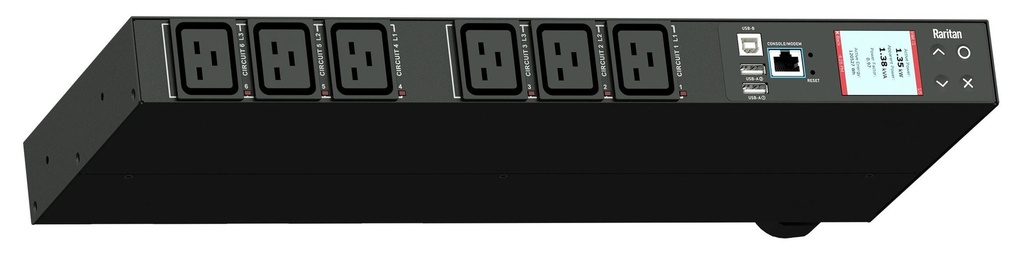

PX3-4104R-V2
Monitored rack power distribution unit (1U [horizontal], 22.2kVA, 6 outlets). INPUT: 400v (3-phase WYE), 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 6@ C19 outlets; on 6@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation; 10/100 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight 7.6 kg. Maximum ambient temperature 60C at full load.
Product Specifications
Specification
Details
Design
PDU types
Metered,Monitored
Type
Three-phase
Rack capacity
1U
Mounting
Horizontal
Product colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity
6
Power plug
IEC 60309
AC outlet types
C19 coupler
Ethernet LAN (RJ-45) ports
1
USB ports quantity
3
Features
Daisy chain
Yes
Reset button
Yes
LED indicators
Yes
Cable length
3
Security algorithms
HTTPS,SNMPv3,SSH
Power
Nominal input voltage
380-415
AC input frequency
50 - 60
Maximum current
32
Output voltage
220-240
Load capacity
23000
Power protection features
Over current,Overload
Certificates
Compliance certificates
RoHS
Certification
CE, ICES-003, FCC
Operational conditions
Operating altitude
0 - 3000
Weight & dimensions
Width
440
Depth
183
Height
44
Weight
7600
Packaging data
Package weight
8200
Package width
570
Package depth
415
Package height
320
