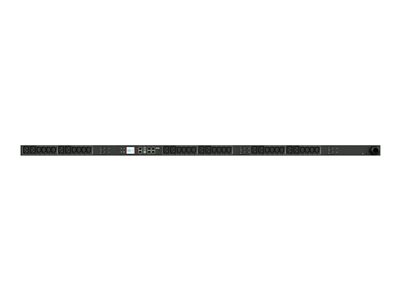

Raritan PX3-5730-V2

SKU: PX3-5730-V2
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13709/image_1920?unique=03ab44f

kr 28,034.13 28034.13 NOK kr 28,034.13 VAT Excluded

kr 28,034.13 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Raritan PX3-5730-V2 is a professional-grade power distribution unit designed for mounting in server racks, supporting up to 22.2 kVA power capacity. It features 3-phase input, multiple output sockets for IEC 60320 connectors, and supports remote management via SNMP, HTTP, and more.

    Key Features

    • 3-Phase Power Supply
    • Remote Management
    • Advanced Metering

    Key Applications

    • Data Centers
    • Server Rooms
    • IT Infrastructure

    Description

    The Raritan PX3-5730-V2 is a robust power distribution unit suitable for demanding data center environments. It provides high-capacity power distribution with 400V AC input and features comprehensive network connectivity for remote management. It includes capabilities such as energy metering, secure socket installation, and detailed monitoring functions.

    Product Specifications

    Specification Details
    General
    Product Description
    • Raritan PX3-5730-V2 - Power distribution unit - 22200 VA
    Device Type
    • Power distribution unit - Rack-mountable
    Rack Size
    • 0U
    Weight
    • 7.9 kg
    Color
    • Black powder coat
    Power Device
    Input Wiring
    • 3-phase WYE
    Input Voltage
    • AC 400 V
    Output Voltage
    • 230 V
    Power Capacity
    • 22200 VA
    Performance Capacity Details
    • 21.1 kVA at 380 V
    • 23 kVA at 415 V
    Input Connectors
    • Power IEC 60309 3P+No+E
    Output Connectors
    • 24 x power IEC 60320 C13 - 230 V 10 A
    • 12 x power IEC 60320 C19 - 230 V 16 A
    Networking
    Network Interfaces
    • Ethernet 10/100, USB, Ethernet 10/100/1000
    Remote Management Protocol
    • SNMP 2
    • Telnet
    • SNMP 3
    • HTTP
    • HTTPS
    • SSH
    • JSON-RPC
    • SMTP
    • Modbus
    Dimensions & Weight
    Width
    • 5.2 cm
    Depth
    • 6.5 cm
    Height
    • 178 cm
    Manufacturer Warranty
    Service & Support
    • Limited warranty - 2 years
    Environmental Parameters
    Max Operating Temperature
    • 60 °C
    Humidity Range Operating
    • 85%
    Expansion / Connectivity
    Interfaces
    • 1 x Gigabit LAN - RJ-45
    • 1 x LAN - RJ-45
    • 2 x USB - 4-pin USB Type A
    • 1 x USB - 4-pin USB Type B
    • 1 x Sensor - RJ-45
    • 1 x Monitoring - RJ-45
    • 1 x Management - RJ-45
    • 1 x Cascading - RJ-45
