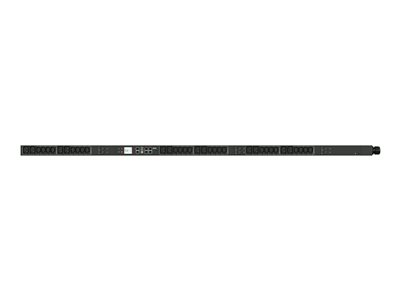

Raritan PX3-5730V-V2

SKU: PX3-5730V-V2
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13710/image_1920?unique=32ed8ac

kr 26,284.31 26284.31 NOK kr 26,284.31 VAT Excluded

kr 26,284.31 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Raritan PX3-5730V-V2 is a rack-mountable power distribution unit with a capacity of 22200 VA. It features advanced management capabilities with remote access protocols and various connectivity options.

    Key Features

    • Rack-Mountable Design
    • Advanced Remote Management
    • Multiple Connectivity Options
    • High Power Capacity
    • Three-Phase Power Input

    Key Applications

    • Data Center Power Distribution
    • IT Infrastructure Management
    • Network Equipment Power Management
    • Server Room Power Solutions
    • Remote Power Monitoring

    Description

    This high-capacity power distribution unit offers 22200 VA output and a range of connectivity options, including RS-232 and Ethernet. It supports remote management through multiple protocols and is suitable for data centers requiring 3-phase power distribution.

    Product Specifications

    Specification Details
    General
    Product Description
    • Raritan Dominion PX PX3-5730V-V2 - Power Distribution Unit - 22200 VA
    Device Type
    • Power Distribution Unit - Rack-Mountable
    Cable Length
    • 3 m
    Rack Size
    • 0U
    Weight
    • 8.1 kg
    Power Device
    Input Wiring
    • 3-phase WYE (star)
    Input Voltage
    • AC 400 V
    Output Voltage
    • AC 230 V
    Power Capacity
    • 22200 VA
    Input Connectors
    • 1 x Power IEC 60309 32A
    Output Connectors
    • 24 x Power IEC 60320 C13
    • 12 x Power IEC 60320 C19
    Max Electric Current
    • 32 A
    Circuit Protection
    • Circuit Breaker
    Network
    Remote Management Interface
    • RS-232, Ethernet 10/100/1000
    Remote Management Protocol
    • SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
    Expansion/Connectivity
    Interfaces
    • 1 x Cascading - RJ-45
    • 2 x Monitoring - RJ-45
    • 1 x RS-232 - RJ-45
    • 2 x USB - 4-pin USB Type A
    • 1 x USB - 4-pin USB Type B
    • 1 x Management (Fast Ethernet) - RJ-45
    • 1 x Control (Gigabit Ethernet) - RJ-45
    Miscellaneous
    Included Cables
    • Power Cable 3 m
    Features
    • Vertical Orientation, LCD Display, Voltage Monitoring, Current Meter, Overload Protection, Cascade Capability, Active Power Metering, True Power Metering, Energy Meter, Power Factor Meter, Raritan SecureLock Ready
    Compliance Standards
    • IEC 62053-21, ISO 62053-21
    Dimensions & Weight
    Width
    • 5.2 cm
    Depth
    • 6.5 cm
    Height
    • 178 cm
    Shipping Width
    • 28 cm
    Shipping Depth
    • 11.5 cm
    Shipping Height
    • 205.5 cm
    Shipping Weight
    • 10.4 kg
    Environmental Parameters
    Max Operating Temperature
    • 60 °C
    Operating Humidity
    • 85%
