  2. Raritan PX3TS-1469R

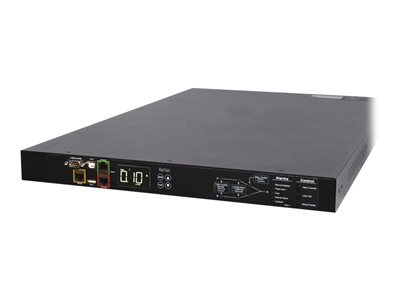

Raritan PX3TS-1469R

SKU: PX3TS-1469R
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13736/image_1920?unique=03ab44f

kr 24,925.76 24925.760000000002 NOK kr 24,925.76 VAT Excluded

kr 24,925.76 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    This intelligent rack transfer switch, rated for 32A, offers seamless switching between power sources with 20 outlets. Features both IEC 60309 and C19/C13 outlet configurations for flexible power distribution. Advanced monitoring capabilities include SNMP management and various connectivity options like Ethernet and USB.

    Key Features

    • Intelligent Rack Mount Design
    • Supports 32A Current
    • Dual IEC 60309 Inputs
    • Advanced SNMP Management
    • Flexible Outlet Configuration

    Description

    The Raritan PX3TS-1469R is a rack-mountable power control unit designed with integrated power measurement and reporting capabilities. It can handle up to 5800 VA and supports 16 C13 and 4 C19 outlets for flexible power distribution. With Ethernet, RS-232, and USB connections, it allows remote management using SNMP protocols, making it suitable for critical environments requiring smart power management solutions.

    Product Specifications

    Specification Details
    General
    Device Type
    • Power Control Unit - Rack-Mountable
    Height (Rack Units)
    • 2U
    Power Device
    Input Voltage
    • AC 200-240 V
    Frequency Required
    • 50/60 Hz
    Input Connectors
    • 2 x Power IEC 60309 32A
    Power Capacity
    • 5800 VA
    Maximum Electric Current
    • 32 A
    Output DetailsConnections:
    • 16 x Power IEC 60320 C13
    • 4 x Power IEC 60320 C19

    Output Voltage:
    • AC 200-240 V

    Circuit Protection
    • Fuse
    Networking
    Remote Management Interface
    • Ethernet, RS-232, USB
    Remote Admin Protocol
    • SNMP
    Connections
    Interfaces
    • 1 x Serial - 9-pin D-Sub (DB-9)
    • 1 x Management - 4-pin USB Type A
    • 1 x Modem - 9-pin D-Sub (DB-9)
    • 1 x Monitoring - RJ-45
    • 1 x LAN - RJ-45
    • 1 x USB - 4-pin USB Type B
    • 1 x Monitoring - RJ-12
    • 1 x USB - 4-pin USB Type A
    Miscellaneous
    Included Cables
    • 2 x Power Cable - External - 3 m
    Features
    • Voltage Monitoring
    • Ammeter
    • Active Power Meter
    • Energy Meter
    • Power Factor Meter
    Compliant Standards
    • UL
    Environmental Parameters
    Max Operating Temperature
    • 60 °C
    Operating Humidity
    • 85%
