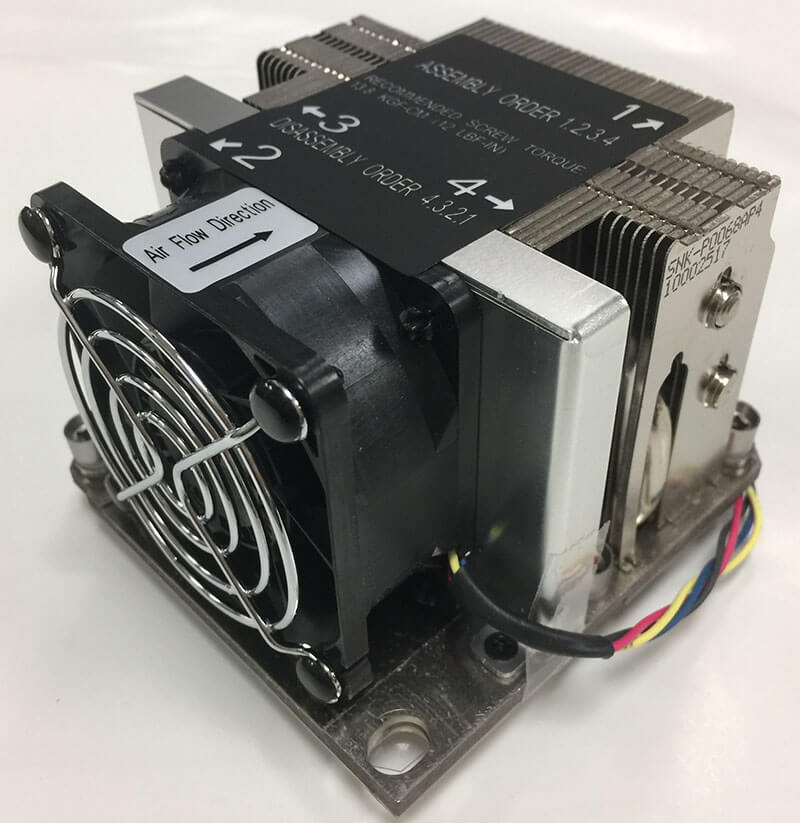

2U Active CPU HS for X11 Purley, Square Retention Mechanism

SNK-P0068AP4
https://safeconsulting.no/web/image/product.template/3877/image_1920?unique=4175d88

kr 614.00 614.0 NOK kr 614.00

kr 614.00

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro 2U Active CPU Heat Sink is specially designed for the Supermicro X11DPL-i motherboard, providing optimal cooling for Intel® Xeon® scalable processors. It features a square mounting mechanism and an efficient 2U active cooling design. The heat sink is Supermicro certified for quality and performance, supporting TDPs up to 140 Watts and featuring a fan with a speed control of 8,400 RPM. Additionally, it is RoHS and REACH compliant, ensuring environmental responsibility.

    Key Features

    • Supported CPU TDP: Up to 140 Watts
    • RoHS and REACH compliant
    • Fan Speed: 8,400 RPM
    • Socket LGA3647-0 Square Mounting Mechanism
    • Rated Voltage: 12.0 VDC
    • Acoustic Noise: 52.0 dB(A) at Rated Speed
    • Supermicro Certified
    • Cooling Type: Active
    • 2U Active CPU Heat Sink
    • Intel® Xeon® Scalable Processors

    Key Applications

    • Supermicro X11DPL Purley Platform 2U and above Series Servers

    Description

    This CPU heat sink is designed for Supermicro X11DPL-i motherboard with 2U and above chassis equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    Attached Cooling Fan
    Speed Control
    • 4-pin PWM
    Rated Voltage
    • 12.0 VDC
    Rated Speed
    • 8,400 RPM
    Acoustic Noise
    • 52.0 dB(A) at Rated Speed
    Fan Dimensions
    • 60L x 60H x 25D mm
    Position
    • Front Side
    MTBF/MTTF
    • 145,190 Hours @ 40 C Ambient
    General
    Brand
    • Supermicro
    Server Form Factor
    • 2U
    Cooling Type
    • Active
    CPU Configuration
    • Uni Processor, Dual Processor
    Supported CPU SKU
    • Intel® Xeon® Scalable Processors
    Supported CPU Socket
    • FCLGA3647-0 (Square Mounting Mechanism)
    Supported CPU TDP
    • Up to 140 Watts
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
