4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform

SNK-P0090AP4
https://safeconsulting.no/web/image/product.template/9022/image_1920?unique=a415753

kr 867.96 867.96 NOK kr 867.96

kr 867.96

Not Available For Sale

    This combination does not exist.

    Summary Description

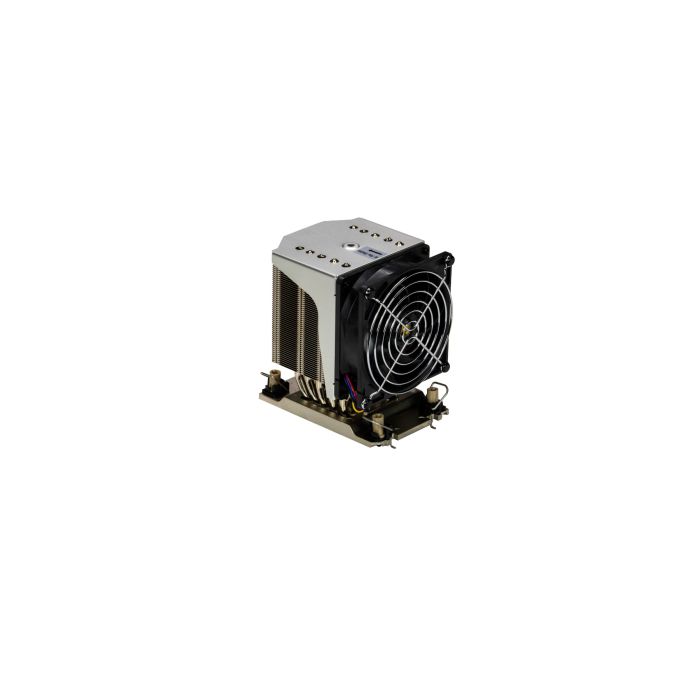

    The Supermicro 4U Active CPU Heat Sink Socket LGA4677 (SNK-P0090AP4) is designed for X13 generation systems with 4th Generation Intel® Xeon® Scalable Processors. The heat sink supports up to 350 Watts of TDP and comes with a 4-pin PWM controlled fan. It is Supermicro certified, ensuring the best quality and cooling performance. Additionally, it is RoHS and REACH compliant, offering a 1 year warranty for reliability.

    Key Features

    • RoHS and REACH compliant
    • Compatible with Uni Processor, Dual Processor, Multi Processor configurations
    • Active Cooling Type
    • 4U Passive CPU Heat Sink
    • Supermicro Certified
    • Supermicro Certified for best quality and cooling performance
    • Supported CPU TDP: Up to 350 Watts
    • 1 year warranty
    • Socket LGA4677-1/E1
    • For 4th Generation Intel® Xeon® Scalable Processors

    Key Applications

    • X13 Eagle Stream Platform 4U Series Workstations and Servers

    Description

    This CPU heat sink is designed for certain Supermicro X13 generation systems equipped with 4th Generation Intel® Xeon® Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

    Product Specifications

    Specification Details
    Attached Cooling Fan
    Speed Control
    • 4-pin PWM
    Rated Voltage
    • 12.0 VDC
    Rated Speed
    • 4,700 RPM
    Acoustic Noise
    • 43 dB(A) at Rated Speed
    Fan Dimensions
    • 92L x 92H x 25D (mm)
    Position
    • Front Side
    MTBF/MTTF
    • 121,457 Hours
    General
    Brand
    • Supermicro
    Server Form Factor
    • 4U
    Cooling Type
    • Active
    CPU Configuration
    • Uni Processor, Dual Processor, Multi Processor
    Supported CPU SKU
    • 4th Gen Intel® Xeon® Scalable Processors
    Supported CPU Socket
    • LGA4677-1/E1
    Supported CPU TDP
    • Up to 350 Watts
    Warranty
    • 1 year warranty
    Product Environmental Compliance
    • RoHS and REACH compliant, details available upon request
