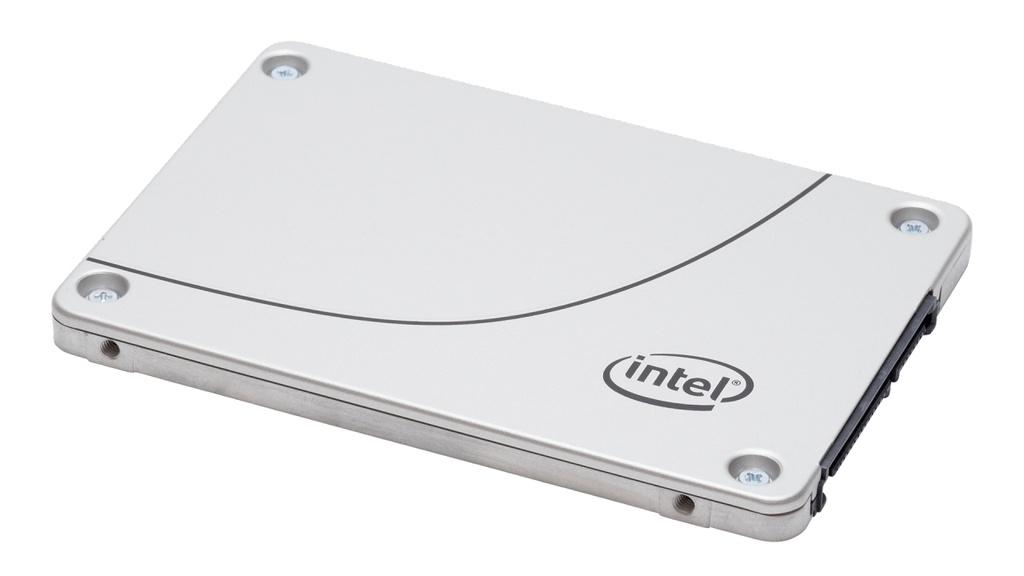

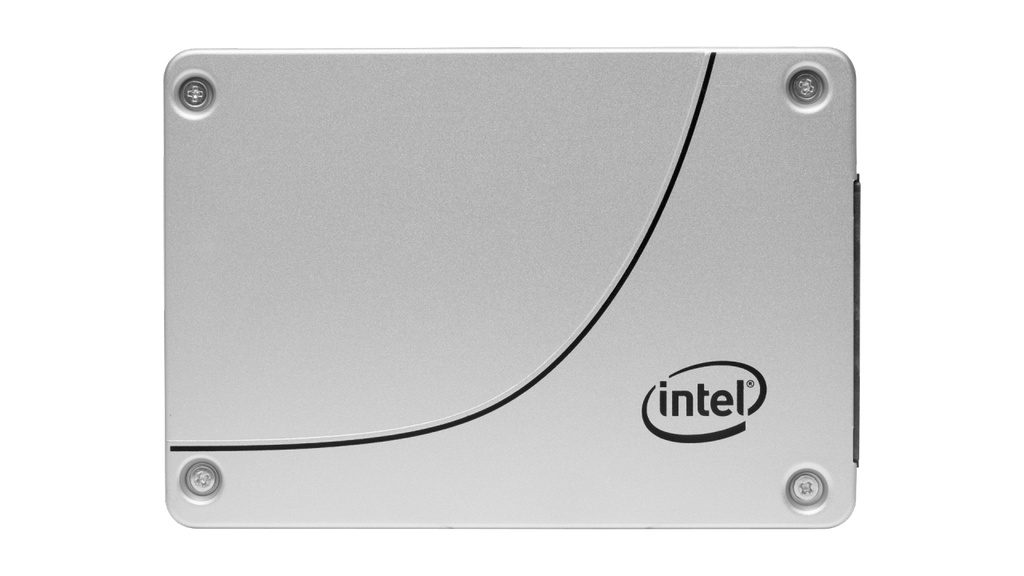

Intel S4510 240GB, SATA 6Gb/s, 3D, TLC 2.5", 7.0mm, up to 2DWPD, FW XCV10100

SSDSC2KB240G8
https://safeconsulting.no/web/image/product.template/7602/image_1920?unique=4175d88

kr 2,278.00 2278.0 NOK kr 2,278.00

kr 2,278.00

Not Available For Sale

    This combination does not exist.

    Summary Description

    Intel SSDSC2KB240G801. SSD capacity: 240 GB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 280 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

    Key Features

    • Component for: Server/workstation
    • TLC 3D NAND
    • Hardware encryption 256-bit AES
    • Read speed: 560 MB/s
    • 240 GB 2.5" Serial ATA III
    • Write speed: 280 MB/s

    Key Applications

    • Server/workstation storage
    • Data centers
    • High-performance computing

    Description

    Enhanced Power Loss Data Protection

    Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

    Hardware Encryption

    Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

    Temperature Monitoring and Logging

    Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

    End-to-End Data Protection

    End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

    Product Specifications

    Specification Details
    Features
    NAND flash type
    • TLC (Triple Level Cell)
    Security algorithms
    • 256-bit AES
    SSD capacity
    • 240 GB
    SSD form factor
    • 2.5"
    Interface
    • Serial ATA III
    NVMe
    • No
    Memory type
    • TLC 3D NAND
    Component for
    • Server/Workstation
    Hardware encryption
    • Yes
    Data transfer rate
    • 6 Gbit/s
    Read speed
    • 560 MB/s
    Write speed
    • 280 MB/s
    Random read (100% span)
    • 90000 IOPS
    Random write (100% span)
    • 16000 IOPS
    Read latency
    • 36 µs
    Write latency
    • 37 µs
    End-to-End Data Protection
    • Yes
    Enhanced Power Loss Data Protection technology
    • Yes
    SSD temperature monitoring
    • Yes
    Temperature monitoring and logging
    • Yes
    Uncorrectable Bit Error Rate (UBER)
    • < 1 per 10^17 bits read
    Mean time between failures (MTBF)
    • 2000000 hours
    Market segment
    • Server
    SSD ARK ID
    • 134910
    Power
    Power consumption (idle)
    • 1.0 W
    Brand-specific features
    Intel High Endurance Technology (HET)
    • No
    Intel Rapid Start Technology
    • No
    Intel Remote Secure Erase
    • No
    Intel Smart Response Technology
    • No
    Intel Smart Response Technology version
    • 0.00
    Operational conditions
    Operating temperature (T-T)
    • 0 - 70 °C
    Maximum operating temperature
    • 70 °C
    Operating vibration
    • 2.17 G
    Non-operating vibration
    • 3.13 G
    Operating shock
    • 1000 G
    Non-operating shock
    • 1000 G
    Operating / non-operating shock
    • 1000 G/0.5 msec
    Other features
    Product colour
    • Silver
    Power consumption (active)
    • 2.4 W
    Drive capacity
    • 240 GB
    Launch date
    • Q3'18
    SSD endurance rating
    • 0.9 PBW
    SSD hardware encryption
    • AES 256 bit
    SSD power consumption (active)
    • 2.4 W
    SSD power consumption (idle)
    • 1.0 W
    Processor family
    • Intel SSD D3
    SSD shock
    • 1000 G/0.5 msec
    Sequential reading
    • 560 MB/s
    Sequential writing speed
    • 280 MB/s
    Status
    • Launched
    Last change
    • 63903513
    Intel Rapid Start Technology version
    • 0.00
    Remote Secure Erase (RSE) technology version
    • 0.00
    Product family
    • Data center SSD
    Product series
    • Intel SSD D3-S4510 Series
    Product codename
    • Youngsville Refresh
    Logistics data
    Export Control Classification Number (ECCN)
    • 5A992C
    Commodity Classification Automated Tracking System (CCATS)
    • G162706
    Harmonized System (HS) code
    • 84717070
