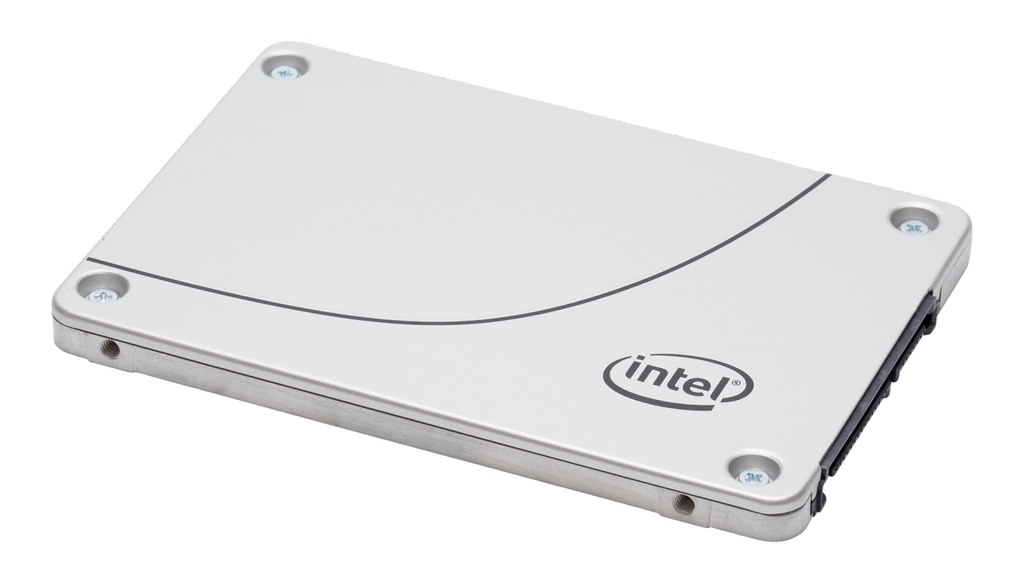

Intel S4510 480GB, SATA 6Gb/s, 3D, TLC 2.5", 7.0mm, up to 2DWPD, FW XCV10100

• End-to-End Data Protection
• Power - Active 3.0W
• Endurance Rating 1.2 PBW
• Sequential Bandwidth - 100% Read (up to) 560 MB/s
• Shock (Operating and Non-Operating) 1000 G/0.5 msec
• UBER 1 sector per 10^17 bits read
• MTBF 2 million hours
• Vibration - Operating 2.17 GRMS
• Random Read (100% Span) 95000 IOPS (4K Blocks)
• Power - Idle 1.0W
• Hardware Encryption AES 256 bit
• Sequential Bandwidth - 100% Write (up to) 490 MB/s
• Temperature Monitoring and Logging
• Form Factor 2.5" 7mm
• Operating Temperature Range 0°C to 70°C
• Vibration - Non-Operating 3.13 GRMS
• Random Write (100% Span) 18000 IOPS (4K Blocks)
• Enhanced Power Loss Data Protection
• Interface SATA 3.0 6Gb/S
• Warranty 5 years

• Server
• Enterprise

The Intel® SSD D3-S4510 Series, part of the Youngsville Refresh product collection, features a 64-Layer TLC 3D NAND with a capacity of 480 GB. It is designed for server/enterprise use, with a sequential bandwidth for read up to 560 MB/s and write up to 490 MB/s. The SSD can handle high random read and write operations, providing 95000 IOPS (4K Blocks) for read and 18000 IOPS (4K Blocks) for write. It has low power consumption of 3.0W during active use and just 1.0W when idle. Reliable under harsh conditions, it has an operating temperature range of 0°C to 70°C and can withstand vibrations of up to 2.17 GRMS when operating. Its endurance rating stands at 1.2 PBW with a mean time between failures of 2 million hours. The drive also features AES 256 bit hardware encryption, enhanced power loss data protection, end-to-end data protection, and temperature monitoring and logging. All of this is backed by a 5-year warranty.
