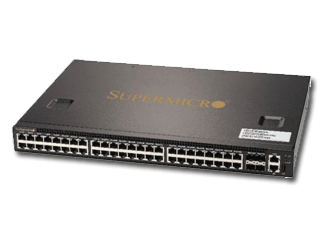

E1031 48-port 1/10G Ethernet ToR switch

SSE-G3648BR
https://safeconsulting.no/web/image/product.template/7684/image_1920?unique=4175d88

kr 0.00 0.0 NOK kr 0.00

kr 0.00

Not Available For Sale

    This combination does not exist.

    Summary Description

    The SuperMicro E1031 is optimized for data centers with 48 1Gbps Ethernet RJ45 ports and 4 10Gbps Ethernet SFP+ ports. It supports powerful data forwarding, advanced routing, and security features. Hot-swappable power supplies ensure reliability.

    Key Features

    • 48 1Gbps Ethernet RJ45 ports
    • 4 10Gbps Ethernet SFP+ ports
    • Cumulus Linux ready
    • 176 Gbps switching capacity
    • Non-blocking L2/L3 routing
    • Hot-swappable power supplies
    • Redundant power supply option
    • Data Center Friendly airflow options
    • Intel Rangeley Processor
    • 2G DRAM and 8G SSD

    Key Applications

    • Data Centers
    • Cloud Computing
    • High-performance Computing
    • Enterprise Networking
    • Network Virtualization

    Description

    The SuperMicro E1031 is a powerful 48-port 1/10G Ethernet Top of Rack (ToR) switch, designed for high-performance and flexibility in data centers. It features 48 1Gbps Ethernet RJ45 ports and 4 10Gbps Ethernet SFP+ ports, hot-swappable power supplies with redundancy, and is Cumulus Linux ready. Additional specifications include an Intel Rangeley CPU, 2Gbyte DRAM, and 8Gbyte SSD. The switch offers data forwarding capacity of 176 Gbps and supports L2/L3 features, link aggregation, and robust security and QoS capabilities.

    Product Specifications

    Specification Details
    General
    Form Factor
    • 1U
    Open Networking
    • Yes
    Mounting Flanges
    • Included
    Physical Ports
    Ethernet Ports
    • 48 x 1Gbps RJ45
    SFP+ Ports
    • 4 x 10Gbps
    Management Port
    • RJ-45 Gigabit Ethernet
    USB Port
    • Type A USB 2.0
    Data Forwarding
    Switching Capacity
    • 176 Gbps
    Switch Chip
    • Broadcom Helix4
    Non-blocking
    • Yes, wire-speed
    Control Plane
    CPU
    • Intel Rangeley
    DRAM
    • 2Gbyte
    SSD
    • 8Gbyte
    OS Compatibility
    • Cumulus Linux ready
    Power
    Power Supply
    • Hot-pluggable 200W
    Redundant Power Supply
    • Optional
    AC Input
    • 100-127/200-240 V, 50/60 Hz
    Power Consumption
    • < 65.2 Watts
    Physical/Environmental
    Weight
    • 8.18kg (with 2 PSUs)
    Airflow
    • Regular
    • Reverse
    Dimensions
    • 434 x 320 x 44 mm
    Operating Temperature
    • 0°C to 45°C
    Operating Humidity
    • 5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Layer 2/3 1/10GEthernet Switch
    SSE-G3648B1Regular Airflow (front to back)

    Optional Part List

    Part Number Quantity Description
    SFP+ Cable
    CBL-0347L-39.37" (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    CBL-0456L-78.74" (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    CBL-0348L-118.11" (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    CBL-0349L-196.85" (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    SFP+ Transceiver
    AOC-E10GSFPSR-SFP+ Transceiver for use with fiber cable connections
    TRX-10GSFP-RJ45-SFP+ Transceiver for RJ45 cable connection
    Power Supply
    PWS-FRU-G3648-1F-Second (for redundancy) power supply for SSE-G3648B Ethernet Switch. Forward Airflow
    PWS-FRU-G3648-1R-Second (for redundancy) power supply for SSE-G3648BR Ethernet Switch. Reverse Airflow
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
