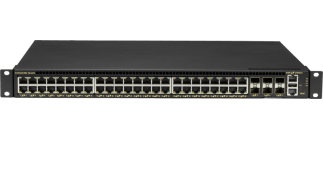

48-port 1G and 6x25G port Ethernet ToR Management switch

SSE-G3748-SMIS
https://safeconsulting.no/web/image/product.template/12455/image_1920?unique=3b8d917

kr 15,512.64 15512.64 NOK kr 15,512.64

kr 15,512.64

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The SSE-G3748-SMIS is a versatile Layer 2/3 Ethernet Switch with 48× 1G ports and 6× 25G uplinks, ideal for data centers and enterprises. It includes dual power supplies and supports extensive networking features.

    Key Features

    • 48× 1Gbps RJ45 Ethernet ports
    • 6× 25G/10G SFP28/SFP+ uplinks
    • 1U form factor
    • Redundant power supplies
    • Hot-swappable fan modules
    • SMIS OS preloaded

    Key Applications

    • Data Centers
    • Enterprise Environments
    • Cloud Infrastructures
    • High-Speed Networking
    • Server Management

    Description

    The Supermicro SSE-G3748-SMIS switch offers forty-eight 1Gbps RJ45 Ethernet ports and six 25G/10Gbps SFP28/SFP+ uplinks. It is ideal for data center and enterprise environments, providing robust network management capabilities with dual and redundant power supplies, hot-swappable fan modules, and a compact 1U form factor.

    Product Specifications

    Specification Details
    General
    Form Factor
    • 1U
    Capacity
    • 396Gbps
    Interfaces Speeds
    • 10M
    • 100M
    • 1G
    • 10G
    • 25G
    Operating System
    • SMIS OS (pre-loaded)
    Power
    Type
    • Hot-pluggable power supply
    • Redundant power supply
    AC Input Voltage
    • 100-127 / 200-240VAC, 50/60Hz
    DC Input Voltage
    • -48~-60VDC
    Maximum Power
    • 150W (with Pluggable Optic)
    Physical and Environmental
    Weight
    • 8 kg (with 2 PSUs)
    Dimensions
    • 445 x 356 x 43.5 mm (17.5 x 14 x 1.7 inches)
    Airflow Models
    • Standard
    • Reverse
    Fan Modules
    • Hot Swappable 1+1 redundant
    Temperature
    • 0C to 45C
    Humidity
    • 5% to 95%
    Network Capabilities
    Layer 2
    • VLAN
    • VLAN Trunking
    • MAC Aging
    • LLDP
    • LACP
    • 802.1w Rapid Spanning Tree
    • 802.1s Multiple Spanning Tree Protocol
    • 4096 VLANs
    • MLAG
    • Jumbo Frames
    • IGMP v1/v2/v3 snooping
    • Storm Control
    Layer 3
    • Static Routing
    • RIPv2
    • OSPF
    • BGP
    • Multipath Routing (ECMP)
    • VRRP
    Management and Monitoring
    • SNMP MIBs
    • Syslog
    • Mirroring
    • TACACS+
    QoS
    • 8 priority queues per port
    • Strict priority queueing
    • 802.1p based classification
    • DSCP based classification and remarking
    • Egress shaping / Weighted round robin (WRR)
    ACL
    • IP ACL permit/deny
    • MAC ACLs
    • Rate limiting
    Network Management
    Ports
    • RS-232 Serial Console Port
    • USB Port
    Protocols
    • SNMP v1, v2, v3
    • Telnet
    • SSHv2
    Logging
    • Syslog
    • System Logging
    CLI & GUI
    • Industry Standard CLI & GUI
    Compliance
    EU
    • EN 60950-1
    • IEC 60950-1
    • EN 62368-1
    • IEC 62368-1
    Available SKUs
    Part Number
    • SSE-G3748-SMIS
    Description
    • Layer 2/3 1/10/25G Ethernet Switch
    Type
    • Regular Airflow (front to back)
    Part Number
    • SSE-G3748R-SMIS
    Description
    • Layer 2/3 1/10/25G Ethernet Switch
    Type
    • Reverse Airflow (back to front)
    Supported Optics and Cables
    Part Number
    • CBL-0347L
    Description
    • 39.37" (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    Part Number
    • CBL-0456L
    Description
    • 78.74" (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    Part Number
    • CBL-0348L
    Description
    • 118.11" (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    Part Number
    • CBL-0349L
    Description
    • 196.85" (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
    Part Number
    • AOC-E10GSFPSR
    Description
    • SFP+ Transceiver for use with fiber cable connections
    Part Number
    • TRX-10GSFP-RJ45
    Description
    • SFP+ Transceiver for RJ45 cable connection
    Part Number
    • CBL-NTWK-0944-SS28C05M
    Description
    • Ethernet, SFP28, 25GbE, Passive, 30 AWG, 0.5M, Molex
    Part Number
    • CBL-NTWK-0944-SS28C10M
    Description
    • Ethernet, SFP28, 25GbE, Passive, 30 AWG, 1M, Molex
    Part Number
    • CBL-NTWK-0944-SS28C20M
    Description
    • Ethernet, SFP28, 25GbE, Passive, 30 AWG, 2M, Molex
    Part Number
    • CBL-NTWK-0944-SS28C30M
    Description
    • Ethernet, SFP28, 25GbE, Passive, 30 AWG, 3M, Molex
    Part Number
    • CBL-NTWK-0944-SS28C50M
    Description
    • Ethernet, SFP28, 25GbE, Passive, 26 AWG, 5M, Molex
    Part Number
    • AOM-SFP28-25GbE-SR-1-MLN
    Description
    • SFP28 Transceiver module 25G, 850nm, MMF, LC
    Part Number
    • CBL-NTWK-0988-Q28M5
    Description
    • Ethernet, 100GbE/QSFP28 to 4x 25GbE/SFP28, Passive, 30AWG, 5M, Molex
