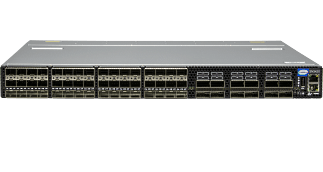

MSN3420-CB2RC Switch-25/100GbE 1U,48pxSFP28 / 12pxQSFP28 C2P

SSE-SN3420-CB2RC
https://safeconsulting.no/web/image/product.template/12458/image_1920?unique=65eacee

kr 254,356.28 254356.28 NOK kr 254,356.28

kr 254,356.28

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The MSN3420-CB2RC Switch offers high density 25G/100G ports, a compact 1U form factor, and a total throughput of 4.8Tb/s. Ideal for data center networking.

    Key Features

    • High-performance Spectrum-2 based switch
    • Supports 48 SFP28 and 12 QSFP28 ports
    • 4.8Tb/s non-blocking throughput
    • Pre-installed Cumulus Linux OS
    • Dual redundant hot-swappable power supplies
    • 1U form factor with mounting rails
    • Regular and reverse airflow models
    • Broad compliance: CB, CE, cTUVus, CU

    Key Applications

    • Data Center Deployments
    • Top-of-Rack Switching
    • Leaf-Spine Architecture

    Description

    Supermicro MSN3420-CB2RC is a high-performance Spectrum-2 based Open Networking 25G switch with 48x SFP28 and 12x QSFP28 ports. It features dual redundant power supplies, 4.8Tb/s throughput and comes with a pre-installed Cumulus Linux OS for efficient and scalable data center networking.

    Product Specifications

    Specification Details
    General
    Introduction
    • Supermicro introduces the Spectrum-2 based Open Networking 25G Switch SSE-SN3420 series that is designed to provide high density 25G as well as 100G ports in a compact 1U form factor.
    Form Factor
    • 1U
    Compliance
    • CB
    • CE
    • cTUVus
    • CU
    Mounting
    • Mounting Rails (included)
    Physical Ports
    Ports
    • 48x SFP28 and 12x QSFP28 Ethernet ports
    • RJ-45 Gigabit Ethernet management port
    • RJ-45 serial console
    • USB port
    Features
    Performance
    • 1U ToR 25Gbps/100Gbps Ethernet Switch
    • Open Networking - ONIE installed
    • Cumulus Linux Ready (Pre-Installed and License activated)
    • 4.8Tbps Switching Capacity
    • Non-blocking
    • Dual Redundant Hot-swappable power supplies
    • Regular and Reverse Air-Flow Models
    • 8GB DRAM
    • 32GB SSD
    Data Forwarding
    Specs
    • Full Duplex 4.8Tbps Switching Capacity
    • Spectrum-2 Switch Chip
    • Non-blocking, wire-speed Layer 3 Routing
    Power
    Specs
    • 1+1 hot-swappable power supplies and No+1 hot-swappable fans
    • AC Input: 100-127/200-240 V, 50/60 Hz
    • Frequency: 50-60Hz
    • Input range: 100-264 AC
    • Input current 2.9-4.5A
    Physical/Environmental
    Specs
    • Weight: Net weight: 8.5kg (18.73b)
    • Regular and Reverse Airflow Models
    • Size: 1.72" x 16.8Pin / 4Pin (12V) Connector" x 22" (44mm x 428mm x 432mm)
    • Temperature: Operating 0°C to 40°C (32°F to 104°F)
    • Humidity: Operating: 5% to 85% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    SFP+ Copper Cable
    CBL-NTWK-0720-Twinax copper cable, 3.0M, 40GbE/QSFP+ to 4x 10GbE/ SFP+,30AWG
    QSFP28 Copper Cable
    CBL-NTWK-0943-SQ28C10M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1m,Molex
    CBL-NTWK-0943-SQ28C30M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Molex
    CBL-NTWK-0943-SQ28C50M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,5m,Molex
    100G to 4x25G splitter
    CBL-NTWK-0988-Q28M1-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,1M,30AWG, Molex
    CBL-NTWK-0988-Q28M2-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,2M,30AWG, Molex
    CBL-NTWK-0988-Q28M3-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,3M,30AWG, Molex
    CBL-NTWK-0988-Q28M5-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,5M,30AWG, Molex
    SFP+ SR Transceiver Module (10GE)
    AOC-E10GSFPSR-SFP+ Transceiver 10GbE fiber cable connections, 850nm, MMF,LC
    SFP+ LR Transceiver Module
    AOC-E10GSFPLR-SFP+ Transceiver 10/1G BASE, LR Optics, 1310nm, SMF, LC
    QSFP28 Transceiver
    TRX-QSFP28-100G-CWDM4-TXCVR, QSFP28, 100GBASE CWDM4 , MSA, 1310nm, LC-LC
    SFP+ to RJ45 Transceiver Module
    AOM-AQS-107-B0C2-CX (revision 05)-Supermicro 10G SFP+ to RJ45 10GBASE-T/1000BASE-T Optical Transceivers
    SFP28 Transceiver Module
    AOM-SFP28-25GbE-SR-1-MLN-SFP28 Transceiver module 25G, 850nm, MMF, LC
    QSFP Transceiver Module
    AOM-40GBE-SR4E-MLX-QSFP Transceiver module, 40Gb/s, 850nm, MPO
    QSFP+ SR4 Transceiver
    AOM-TQSFP-79EQPZ-AVG-40GbE IB-QDR QSFP+ SR4 Transceiver MPO/MMF 100m w/OM3 150m w/OM4
    QSFP28 Transceiver Module
    TRX-100GbE-SR4-FIN-Ethernet TXCVR,QSFP28,100GBASE-SR4,850nm, MMF,MPO
    QSFP+ Transceiver Module
    TRX-40GBE-SR4E-FIN-ETHERNET TXCVR, QSFP+, 40GbE, 850NM, MMF, 300M, MPO
    SFP LR Transceiver Module
    TRX-1318P3LR-10KM-SFP Transceiver module; 1G, 1310nm, SMF, LC
    SFP28 Copper Cable
    CBL-NTWK-0944-SS28C05M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,0.5M,Molex
    CBL-NTWK-0944-SS28C10M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,1M,Molex
    CBL-NTWK-0944-SS28C20M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,2M,Molex
    CBL-NTWK-0944-SS28C30M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,3M,Molex
    CBL-NTWK-0944-SS28C50M-ETHERNET,SFP28,25GbE,PASSIVE,26 AWG,5M,Molex
    CBL-NTWK-0944-MS28C05M-0.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C10M-1m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C15M-1.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C20M-2m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C25M-2.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C30M-3m 25GbE SFP28 to SFP28, Passive
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
