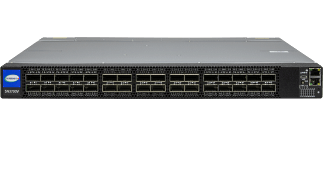

MSN3700-VS2RC Switch-S2 200GbE 1U, 32pxQSFP56,2PS,C2P

SKU: SSE-SN3700-VS2RC
Alternative Product Codes: 920-9N210-34RA-0C0
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12462/image_1920?unique=1ce4bbb

kr 378,923.90 378923.9 NOK kr 378,923.90 VAT Excluded

kr 378,923.90 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    High-density 200G spine/super-spine switch equipped with 32 QSFP56 ports, dual power supplies, and pre-installed Cumulus Linux OS. Supports flexible networking from 10GbE to 200GbE.

    Key Features

    • 1U ToR 200Gbps/100Gbps Ethernet Switch
    • Open Networking with ONIE
    • Cumulus Linux Pre-installed
    • Dual Redundant Hot-swappable Power Supplies
    • 12.8Tbps Switching Capacity
    • Non-blocking Layer 3 Routing
    • 8GB DRAM and 32GB SSD
    • Regular and Reverse Air-Flow Models
    • Included Rack-mounting Rail Kit

    Key Applications

    • Data Centers
    • Enterprise Networks
    • Cloud Computing
    • Telecommunications

    Description

    The MSN3700-VS2RC is a high-performance 200G spine/super-spine switch designed for open networking. It features 32 QSFP56 ports, dual redundant power supplies, and extensive hardware acceleration for routing and switching functions. Pre-installed with Cumulus Linux OS, it offers scalable and efficient networking solutions with a total throughput of 12.8Tb/s.

    Product Specifications

    Specification Details
    Networking
    Ports
    • 32x QSFP56 Ethernet Ports
    • RJ-45 Gigabit Ethernet Management Port
    • RJ-45 Serial Console
    • USB Port
    Data Forwarding
    • Full Duplex 12.8Tbps Switching Capacity
    • Spectrum-2 Switch Chip
    • Non-blocking, Wire-speed Layer 3 Routing
    Power
    Type
    • 1+1 Hot-swappable Power Supplies
    • No+1 Hot-swappable Fans
    AC Input
    • 100-127/200-240 V, 50/60 Hz
    Frequency
    • 50-60Hz
    Input Range
    • 100-264 AC
    Input Current
    • 2.9-4.5A
    Physical/Environmental
    Weight
    • Net Weight: 11.1kg (24.5lb)
    Airflow Models
    • Regular and Reverse
    Dimensions
    • 1.72" x 16.8Pin / 4Pin (12V) Connector" x 22" (44mm x 428mm x 559mm)
    Temperature
    • Operating: 0°C to 40°C (32°F to 104°F)
    Humidity
    • Operating: 5% to 85% (Non-condensing)
    General
    Open Networking
    • Yes, ONIE Installed
    Form Factor
    • 1U
    Rack Mounting
    • Rails Included

    Optional Part List

    Part Number Quantity Description
    SFP+ Copper Cable
    CBL-NTWK-0720-Twinax copper cable, 3.0M, 40GbE/QSFP+ to 4x 10GbE/ SFP+,30AWG
    QSFP28 Copper Cable
    CBL-NTWK-0943-SQ28C10M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1m,Molex
    CBL-NTWK-0943-SQ28C30M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Molex
    CBL-NTWK-0943-SQ28C50M-ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,5m,Molex
    100G to 4x25G splitter
    CBL-NTWK-0988-Q28M1-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,1M,30AWG, Molex
    CBL-NTWK-0988-Q28M2-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,2M,30AWG, Molex
    CBL-NTWK-0988-Q28M3-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,3M,30AWG, Molex
    CBL-NTWK-0988-Q28M5-ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,5M,30AWG, Molex
    SFP+ SR Transceiver Module (10GE)
    AOC-E10GSFPSR-SFP+ Transceiver 10GbE fiber cable connections, 850nm, MMF,LC
    SFP+ LR Transceiver Module
    AOC-E10GSFPLR-SFP+ Transceiver 10/1G BASE, LR Optics, 1310nm, SMF, LC
    QSFP28 Transceiver
    TRX-QSFP28-100G-CWDM4-TXCVR, QSFP28, 100GBASE CWDM4 , MSA, 1310nm, LC-LC
    SFP+ to RJ45 Transceiver Module
    AOM-AQS-107-B0C2-CX (revision 05)-Supermicro 10G SFP+ to RJ45 10GBASE-T/1000BASE-T Optical Transceivers
    SFP28 Transceiver Module
    AOM-SFP28-25GbE-SR-1-MLN-SFP28 Transceiver module 25G, 850nm, MMF, LC
    QSFP Transceiver Module
    AOM-40GBE-SR4E-MLX-QSFP Transceiver module, 40Gb/s, 850nm, MPO
    QSFP+ SR4 Transceiver
    AOM-TQSFP-79EQPZ-AVG-40GbE IB-QDR QSFP+ SR4 Transceiver MPO/MMF 100m w/OM3 150m w/OM4
    QSFP28 Transceiver Module
    TRX-100GbE-SR4-FIN-Ethernet TXCVR,QSFP28,100GBASE-SR4,850nm, MMF,MPO
    QSFP+ Transceiver Module
    TRX-40GBE-SR4E-FIN-ETHERNET TXCVR, QSFP+, 40GbE, 850NM, MMF, 300M, MPO
    SFP LR Transceiver Module
    TRX-1318P3LR-10KM-SFP Transceiver module; 1G, 1310nm, SMF, LC
    SFP28 Copper Cable
    CBL-NTWK-0944-SS28C05M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,0.5M,Molex
    CBL-NTWK-0944-SS28C10M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,1M,Molex
    CBL-NTWK-0944-SS28C20M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,2M,Molex
    CBL-NTWK-0944-SS28C30M-ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,3M,Molex
    CBL-NTWK-0944-SS28C50M-ETHERNET,SFP28,25GbE,PASSIVE,26 AWG,5M,Molex
    CBL-NTWK-0944-MS28C05M-0.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C10M-1m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C15M-1.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C20M-2m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C25M-2.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C30M-3m 25GbE SFP28 to SFP28, Passive
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
