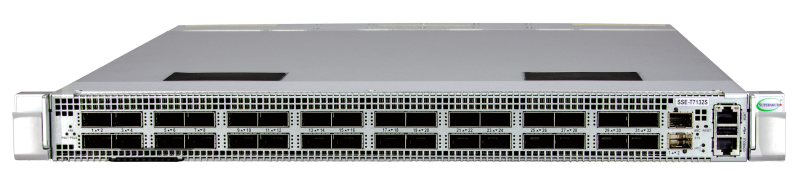

32x400G QSFP-DD Eth Switch, F2R Airflow, AC PSU

SSE-T7132S
https://safeconsulting.no/web/image/product.template/12244/image_1920?unique=4175d88

kr 173,090.80 173090.80000000002 NOK kr 173,090.80

kr 173,090.80

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SSE-T7132S is a 400GbE switch with high density and robust performance, supporting configurations such as 32x400G, 64x200G, and 128x100G. It is suitable for advanced data center applications, HPC, AI, and machine learning workloads.

    Key Features

    • High-density 400GbE aggregation switch
    • Robust 50 Gbps PAM4 SERDES
    • Supports SONiC OS
    • Dual, redundant fans and power supplies
    • Multiple interface speeds up to 400GbE
    • 1U rack size with flexible port configurations
    • Enhanced FLASHLIGHT analytics

    Key Applications

    • High Performance Computing Clusters
    • Cloud Computing
    • DCI Applications
    • AI and Machine Learning
    • Large-scale Enterprise Networks

    Description

    The Supermicro SSE-T7132S is a high-performance 400GbE aggregation switch designed for modern data centers, offering robust 50 Gbps PAM4 SERDES, 1U rack size, and dual, redundant power supplies and fans. It supports a variety of configurations, including 32x400GbE, and is preloaded with SONiC OS. Ideal for HPC, AI, ML, and large-scale enterprise applications.

    Product Specifications

    Specification Details
    Key Switch Specs
    Form Factor
    • 1 RU
    Capacity
    • 25.6Tbps
    Interface Speeds
    • 10, 25, 40, 50, 100, 200 & 400GbE
    Supported Configurations
    • 32x400GbE
    • 28x400G+4x100G
    • 24x400G+8x100G
    • 32x100G
    • 72x25G+8x100G+6x400G
    Operating System
    • SONiC OS
    Hardware Features
    Interface Ports
    • 32x QSFP-DD Ports
    • 1x RJ45 Serial Console
    • 1x RJ45 100/1000BASE-T Management
    • 1x USB Type A Storage
    Onboard CPU EngineCPU:
    • Intel Quad Core CPU

    Memory:
    • 16GB DDR4 DRAM

    Storage:
    • 16MB SPI Flash
    • 128GB SSD

    Physical and EnvironmentalForm Factor:
    • 1RU, Mountable

    Dimensions:
    • 433 x 600 x 44 mm (17.1 x 23.6 x 1.73 inches)

    Weight:
    • 11.52kg

    Airflow:
    • Front-to-Rear and Rear-to-Front

    PSUs:
    • 2x Redundant, Load Sharing, Hot Swappable

    Input Voltage:
    • 100 to 240V AC at 5-60Hz

    Max Power:
    • 1300W

    Fans:
    • Hot Swappable 6+1 Redundant Fan Modules

    Software Features
    Layer 2
    • VLAN
    • VLAN Trunking
    • MAC Aging
    Layer 3
    • BGP/BGP MP
    • BGP Graceful Restart
    • IPv6 Basic
    • VRF
    • ECMP
    • L3 RIF Counters
    • Mgmt VRF
    • VRF Port
    Management and Monitoring
    • SNMP
    • Syslog
    • Everflow
    • OOM
    • TCPDump
    • Critical Resource Monitoring
    • Mirroring
    • TACACS+
    • Sensor Transceiver Monitoring
    • sFlow
    • QoS
    • CoPP
    • COS
    • PFC
    • ECN
    • RDMA
    • WRED
    • ACL
    • Fast Reload
    • Warm Reload
    • DHCP Relay Agent
    • NTP
    • QoS Settings
    • ZTP
    • Python 2/3 Support
    Available SKUs
    SSE-T7132S
    • AC Power Supply with Regular Airflow (front to back)
    SSE-T7132SR
    • AC Power Supply with Reverse Airflow (back to front)
    SSE-T7132D
    • DC Power Supply with Regular Airflow (front to back)
    SSE-T7132DR
    • DC Power Supply with Reverse Airflow (back to front)
    Cables Supported
    400G DACQSFP-DD 400G straight DAC cable, 30AWG:
    • 1M, SMC P/No CBL-NTWK-0957-QSFPDD-1

    QSFP-DD 400G straight DAC cable, 28AWG:
    • 2M, SMC P/No CBL-NTWK-0957-QSFPDD-2

    QSFP-DD 400G straight DAC cable, 26AWG:
    • 3M, SMC P/No CBL-NTWK-0957-QSFPDD-3

    400G AEC400G QSFP-DD, to QSFP-DD, AEC:
    • 3M, SMC P/No CBL-NTWK-0970-AEC-3
    • 5M, SMC P/No CBL-NTWK-0970-AEC-5
    • 7M, SMC P/No CBL-NTWK-0970-AEC-7

    400G AOCQSFP-DD 400g TO 400g 10M AOC:
    • 10M, SMC P/No CBL-QSFPDD-400G-AOC-10

    100G DACMolex QSFP28 Copper, LSZH:
    • 3M, SMC P/No CBL-NTWK-0943-SQ28C30M
    • 1M, SMC P/No CBL-NTWK-0943-SQ28C10M
    • 0.5M, SMC P/No CBL-NTWK-0942-MQ28C05M
    • 1.5M, SMC P/No CBL-NTWK-0942-MQ28C15M
    • 2M, SMC P/No CBL-NTWK-0942-MQ28C20M
    • 2.5M, SMC P/No CBL-NTWK-0942-MQ28C25M

    General
    Safety Standards
    • IEC 60950-1:2005
    • CSA/CUL
    • CE/UKCA
    • FCC
    • CB
    • Japan (VCCI)
    • AUS/NZS
    • ICES
    Electromagnetic Compatibility
    • EU: CISPR 32, EN 55032, BS EN 55032, CISPR 35
    • North America: 47CFR Part 15(CFR 47) Class A
    • ICES003 issue7 Class A
    • Japan (VCCI): VCCI CISPR 32-1
    • Aus/Nz (ACMA): AS/NZS CISPR 32
    • Taiwan (BSMI): CNS 15936
    • Korean (KCC): KN32 Class A, KN35
    • China (CCC): GB9254.1
    Environmental Standards
    • EU (RoHS)
    • EU (REACH)
