  2. 48Port 10GBASE-T Switch-1U Rack W/4Port 40GbE Rev. Air

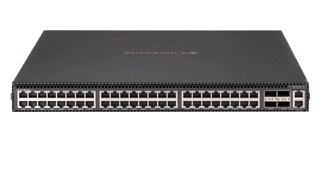

48Port 10GBASE-T Switch-1U Rack W/4Port 40GbE Rev. Air

SSE-X3348TR
https://safeconsulting.no/web/image/product.template/12464/image_1920?unique=b20187c

kr 99,382.51 99382.51000000001 NOK kr 99,382.51

kr 99,382.51

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The SSE-X3348TR is a 48-port 10G Ethernet switch designed for high-density and high-performance networking. It includes four 40Gbps ports for high-speed backbone network access and offers advanced switching capabilities tailored for data centers and enterprise networks. The 1U form factor with optional rail kit makes it ideal for top-of-rack deployments.

    Key Features

    • 48 10GBase-T Ports
    • 4 40Gbps Ports
    • Layer 3 Switching
    • Advanced VLAN Support
    • Reverse Airflow

    Key Applications

    • Data Centers
    • Network Backbones
    • Enterprise Networks
    • High-speed Storage Connectivity
    • Top-of-Rack Deployments

    Description

    The Supermicro SSE-X3348TR is a high-performance 48-port 10G Ethernet switch designed for enterprise networking. It features forty-eight 10GBase-T ports and four 40Gbps ports for flexible connectivity. The switch offers a range of advanced networking capabilities, including layer 3 switching and routing, VLAN support, and Quality of Service. It is optimized for data center use with a 1U form factor and reverse-airflow for optimal cooling. Additional features include comprehensive management options and compliance with industry standards.

    Product Specifications

    Specification Details
    General
    Product Type
    • Layer 3 Stand-alone 10G Ethernet Switch
    Model Number
    • SSE-X3348TR
    Port Attributes
    10GBase-T Ports
    • 48
    40Gbps Ports
    • 4
    Performance
    Switching Capacity
    • 1.28Tbps
    Forwarding Rate
    • 952Mpps
    Power
    Power Supply
    • AC 100-240V, (Dual Redundant)
    Dimensions
    Form Factor
    • 1U Rack-mountable
    Dimensions (WxDxH)
    • 17.2 x 15.2 x 1.7 inches
    Weight
    Weight
    • 14 lbs
    Operating Temperature
    Temperature Range
    • 0°C to 40°C
    Compliance
    RoHS
    • RoHS 6/6
    Included Accessories
    Power Cords
    • 2 (US style)
    Console Cable
    • Yes
    Mounting Flanges
    • 2
    Miscellaneous Screws
    • Yes
    Rubber Foot-pads
    • Yes

    Standard Part List

    Part Number Quantity Description
    Layer 3 10GEthernet Switch
    SSE-X3348TR1Reverse Airflow (back to front)
    QSFP+ Cable
    CBL-NTWK-0417-01-1.0m, QSFP+ to QSFP+
    CBL-NTWK-0325-02-2.0m, QSFP+ to QSFP+
    CBL-NTWK-0446-01-3.0m, QSFP+ to QSFP+
    CBL-NTWK-0422-01-5.0m, QSFP+ to QSFP+

    Optional Part List

    Part Number Quantity Description
    Rails Kit
    CSE-PT52L-Rails Kit for Rack Mount
    SFP+ Cable
    CBL-NTWK-0719-40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,1M,30AWG
    CBL-NTWK-0720-40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,3M,30AWG
    CBL-NTWK-0721-40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,5M,25AWG
    QSFP+ Transceiver
    AOM-TQSFP-79EQDZ-AVG-QSFP+ Transceiver for use with 40GE fiber cable connections
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
