1U DP 32 EDSFF Long
SSG-1029P-NEL32R
To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description

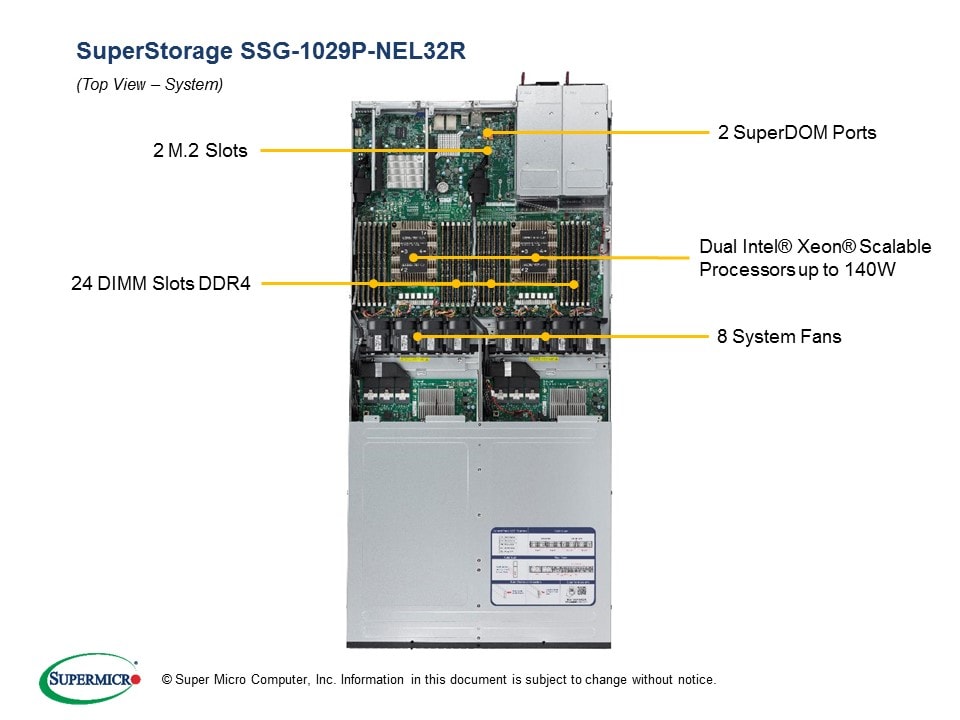

The Supermicro SSG-1029P-NEL32R is a high-density, high-throughput 1U rackmount storage system equipped with dual 2nd Gen Intel® Xeon® Scalable processors, capable of up to 6TB memory, and 32 hot-swap EDSFF drive slots for robust performance and scalability.
Key Features
- Built in Intel QAT for Crypto/Compression
- 2x 10GBase-T LAN ports
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM, Supports Intel® Optane™ DCPMM ††
- 8x 40mm fans
- 32 Hot-swap EDSFF Long 9.5mm drive slots
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
- 2 PCI-E 3.0 x16 Low-profile slots
- 1600W Redundant Power Supplies Platinum Level
Key Applications
- High Throughput Ingest
- High Density Hot Storage
- HPC/Data Analytics
- Media/Video Streaming
- Content Delivery Network (CDN)
- Big Data Top of Rack Storage
Description
The Supermicro SSG-1029P-NEL32R offers a powerful solution for demanding data center environments. It features dual Socket P (LGA 3647) for 2nd Gen Intel® Xeon® Scalable processors, supporting up to 28 cores and 6TB 3DS ECC DDR4-2933MHz memory. With 32 hot-swap EDSFF Long 9.5mm drive slots, this system is designed for high-density storage solutions. Additional features include built-in Intel QAT, 2 PCI-E 3.0 x16 Low-profile slots, and redundant power supplies, ensuring optimal performance and reliability.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SSG-1029P-NEL32R |
|
| Motherboard | |
| Super X11DPS-RE |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| Network Connectivity |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| Serial Header |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Hot-swap |
|
| System Cooling | |
| Fans |
|
| AC/DC240V Input Redundant Power Supply | |
| 1000 / 1600W 1U Redundant Power Supply |
|
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| 12Vsb |
|
| Output Type |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DPS-RE | 1 | Super X11DPS-RE Motherboard |
| CSE-136HTS-R1K69P-E2 | 1 | CSE-136HTS-R1K69P-E2 Chassis |
| Backplane | ||
| BPN-EDS3-136P1-1 | 2 | 1U EDSFF NVMe backplane support 16x Ruler Gen-2 PCIe x4 devices, used in Ruler dense storage system,RoHS |
| Riser Card | ||
| RSC-R1U-E16R | 2 | RSC-R1U-E16R |
| Heatsink / Retention | ||
| SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | ||
| PWS-1K69P-1R | 2 | AC-DC 1600W at high and 1000W at low line, Platinum Level |
| FAN 1 | ||
| FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
| Fans | ||
| FAN-0163L4 | 8 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan |
| Rail Set | ||
| MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| E1.L Dummy Tray | ||
| MCP-220-13604-0N | Up to 32 per server- | Dummy Tray |
| Validated E1.L NVMe SSD | ||
| HDS-IEN0-SSDPEWKX153T8 | Up to 32 per server | Intel DC-P4510 E1.L EDSFF EDSFF Long 9.5mm TLC 15.36TB |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC• | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
