[NR]1U 3.5-in x12 ServerMBD-X11SDV-12C-TP8F,801LTS-R407CP
SSG-5019D12-TR12P
To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SSG-5019D12-TR12P is a high-performance, 1U rackmount server featuring an Intel® Xeon® processor D-2146NT with 8 cores and 16 threads. It's ideal for various key applications including object storage, content delivery networks, multi-access edge computing, VM, and SMB servers.
Key Features
- Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
- 12 Hot-swap 3.5" SATA3 bays; 2 SSD or 1 U.2 supported by AOC
- 1 PCI-E 3.0 x8 (FH) slot; 1 M.2 slot M key and 1 B Key
- Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots

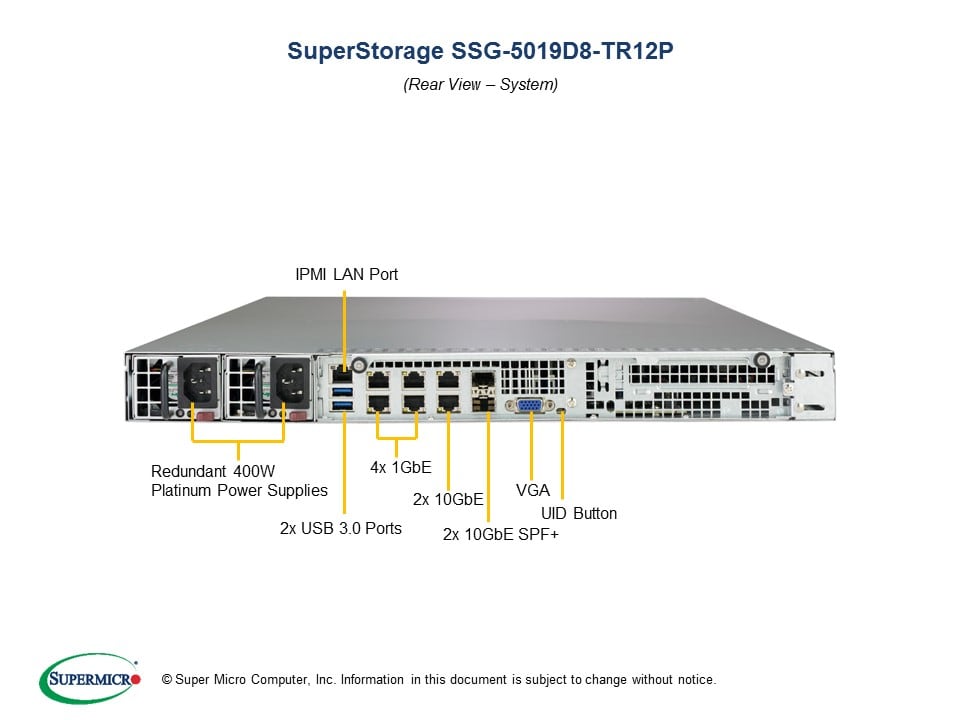

- 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
- 1 VGA, 2 USB 3.0
- 6x 4cm 4-pin PWM fans
- 400W Redundant Power Supplies Platinum Level (94%)
- Built in Intel QAT up to 40Gbps Crypto/Compression
Key Applications
- Object Storage/Warm Storage
- Content Delivery Network (CDNs)
- Multi-access Edge Computing
- VM and SMB Servers
Description
The Supermicro SSG-5019D12-TR12P is engineered for high performance and reliability. It's powered by an Intel® Xeon® processor D-2146NT with 8 cores and 16 threads. The server includes 12 hot-swap 3.5" SATA3 bays, supports up to 512GB of ECC LRDIMM memory, and has various connectivity options such as 4x 1GbE, 2x 10GBase-T, and 2x 10G SFP+ ports. Equipped with 400W redundant power supplies and advanced cooling via 6x 4cm 4-pin fans, the server is built for demanding data environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SSG-5019D8-TR12P |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores / Cache |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| VGA |
|
| Others |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-E |
|
| M.2 |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| AC/DC240V Input Redundant Power Supplies | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5V sb |
|
| Output Type |
|
| Certification |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SDV-8C-TP8F | 1 | Super X11SDV-8C-TP8F Motherboard |
| CSE-801LTS-R407CP | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS-801T-A2 | 2 | 2-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch HDD/SSD |
| BPN-SAS-801T-A4 | 2 | 4-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch HDD/SSD |
| Cable 1 | ||
| CBL-0483L | 3 | SATA,INT,ROUND,ST-ST,29CM,30AWG |
| Cable 2 | ||
| CBL-0484L | 1 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 3 | ||
| CBL-SAST-0699 | 2 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro |
| Parts | ||
| MCP-120-00078-0N | 1 | Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond |
| Air Shroud | ||
| MCP-310-19007-0N | 1 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB |
| Riser Card | ||
| RSC-RR1U-E8 | 1 | RSC-RR1U-E8 |
| Power Supply | ||
| PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| FAN 1 | ||
| FAN-0147L4 | 6 | 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| AOC | ||
| AOC-S3216L-L16iT | - | 16x SAS3 ports PCIe 3.0x8 HBA controller add-on card with 4x internal mini-SAS HD connectors using Broadcom 3216 chip,RoHS |
| Cable | ||
| CBL-SAST-0811 | - | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH |
| CBL-SAST-0951 | - | Mini SAS HD to PCIe SFF-8639 w/ SATA Power, 25/5CM, 32/18 AW |
