  2. 1U 3.5"x12 ServerMBD-X11SDV-8C-TP8F,801LTS-R407CP,HF,RoHS

1U 3.5"x12 ServerMBD-X11SDV-8C-TP8F,801LTS-R407CP,HF,RoHS

SKU: SSG-5019D8-TR12P
Brand: Supermicro
Product Note:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10531/image_1920?unique=ad0c029

kr 28,783.54 28783.54 NOK kr 28,783.54 VAT Excluded

kr 28,783.54 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SSG-5019D8-TR12P is a versatile and high-performance 1U Rackmount system designed to meet various application needs, including Object Storage, Content Delivery Networks, Multi-access Edge Computing, and SMB servers. Equipped with Intel® Xeon® processor D-2146NT, it supports up to 12 hot-swap 3.5" SATA3 bays and various high-speed network interfaces.

    Key Features

    • Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
    • 12 Hot-swap 3.5" SATA3 bays; 2 SSD or 1 U.2 supported by AOC
    • 1 PCI-E 3.0 x8 (FH) slot; 1 M.2 slot M key and 1 B Key
    • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
    • 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
    • 1 VGA, 2 USB 3.0
    • 6x 4cm 4-pin PWM fans
    • 400W Redundant Power Supplies Platinum Level (94%)
    • Built in Intel QAT up to 40Gbps Crypto/Compression

    Key Applications

    • Object Storage/Warm Storage
    • Content Delivery Network (CDNs)
    • Multi-access Edge Computing
    • VM and SMB Servers

    Description

    The Supermicro SSG-5019D8-TR12P system is built to deliver optimal performance and flexibility for a wide range of applications. Powered by Intel® Xeon® processor D-2146NT with 8 cores and 16 threads, it supports up to 512GB ECC LRDIMM system memory. The system includes 12 hot-swap 3.5" SATA3 bays, 1 PCI-E 3.0 x8 slot, and multiple high-speed network interfaces. With 400W redundant power supplies and comprehensive I/O options, it ensures reliability and scalability.

    Product Specifications

    Specification Details
    Product SKUs
    SSG-5019D8-TR12P
    • SuperStorage 5019D8-TR12P ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SDV-8C-TP8F
    Processor
    CPU
    • Intel® Xeon® processor D-2146NT ,CPU TDP support 80W
    Cores / Cache
    • 8 Cores, 16 Threads
    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2133MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Quad 1GbE with Intel I350-AM4
    • Dual 10GBase-T with Intel X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • Aspeed AST2500 BMC
    Input / Output
    SATA
    • 12 SATA3 (6Gbps) ports (HDD/SSD)
    LAN
    • 2 10G SFP+ ports
    • 4 RJ45 1GbE LAN ports
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • TPM 2.0 header
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-801LTS-R407CP
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 32" (813mm)
    Gross Weight
    • 32 lbs (14.5kg)
    Available Colors
    • Black

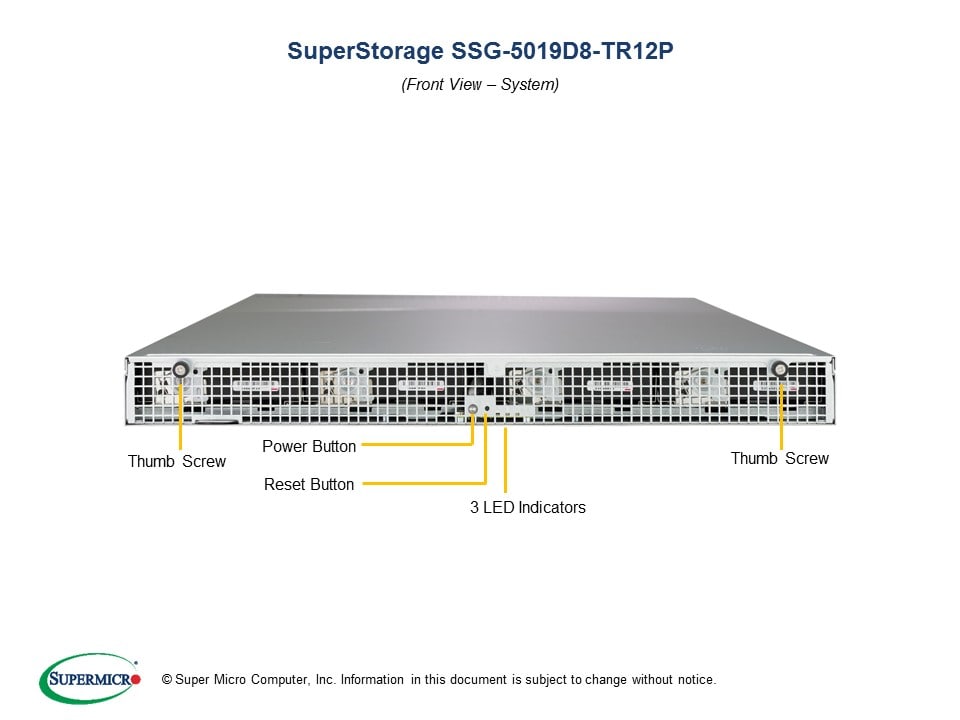

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8 slot
    • 1 Mini-PCI-E with mSATA Support
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2
    • Form Factor: 2242/2280
    • Key: M-Key, B-Key
    Drive Bays
    Internal
    • 12 Hot-swap 3.5" SATA3 drive bays
    • Optional AOC-S3216L-L16iT: support 12x 3.5" SAS3 + 2x SSD or one NVMe U.2
    System Cooling
    Fans
    • 6x 4cm 4-pin fans
    AC/DC240V Input Redundant Power Supplies
    • 400W 1U Redundant Power Supplies with PM Bus
    Total Output Power
    • 400W
    Dimension(W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification
    • Platinum Level Certified
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.8
    • UEFI 2.4
    • RTC (Real Time Clock) Wakeup
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SDV-8C-TP8F1Super X11SDV-8C-TP8F Motherboard
    CSE-801LTS-R407CP11U Chassis
    Backplane
    BPN-SAS-801T-A222-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch HDD/SSD
    BPN-SAS-801T-A424-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch HDD/SSD
    Cable 1
    CBL-0483L3SATA,INT,ROUND,ST-ST,29CM,30AWG
    Cable 2
    CBL-0484L1SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 3
    CBL-SAST-06992MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    Parts
    MCP-120-00078-0N1Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond
    Air Shroud
    MCP-310-19007-0N1SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Riser Card
    RSC-RR1U-E81RSC-RR1U-E8
    Power Supply
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    FAN 1
    FAN-0147L4640x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF

    Optional Part List

    Part Number Quantity Description
    AOC
    AOC-S3216L-L16iT-16x SAS3 ports PCIe 3.0x8 HBA controller add-on card with 4x internal mini-SAS HD connectors using Broadcom 3216 chip,RoHS
    Cable
    CBL-SAST-0811-MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
    CBL-SAST-0951-Mini SAS HD to PCIe SFF-8639 w/ SATA Power, 25/5CM, 32/18 AW
