  2. SSG UP 2U X12SPI-TF, CSE-826BAC12-R802LPB,HF,RoHS

SSG UP 2U X12SPI-TF, CSE-826BAC12-R802LPB,HF,RoHS

SSG-520P-ACTR12H

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10534/image_1920?unique=f7d9088

kr 30,714.03 30714.03 NOK kr 30,714.03

kr 30,714.03

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SSG-520P-ACTR12H is a robust 2U storage server designed with the latest Intel Xeon Scalable processors, offering impressive storage capacity and advanced features suitable for enterprise-level applications.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • 12x Direct-attached hot-swap 3.5" SAS3/SATA3 drive bays, Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional)
    • Redundant Titanium 800W Power Supply

    Key Applications

    • Enterprise Server
    • Database Processing & Storage
    • Appliance Optimized Storage

    Description

    The Supermicro SSG-520P-ACTR12H is engineered to meet the demanding needs of enterprise and data center environments. Powered by single socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors with up to 270W TDP, this 2U server supports up to 2TB ECC DDR4 memory and Intel Optane persistent memory. It features 12 front hot-swap 3.5" SAS/SATA drive bays and optional rear NVMe/SAS/SATA bays, offering versatile storage options. Enhanced by redundant 800W Titanium power supplies, it ensures reliable operation and reduced power consumption.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-520P-ACTR12H
    Motherboard
    Installed Motherboard
    • Super X12SPI-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
    SAS
    • SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
    NVMe
    • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen1 Type-A port(s)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator module (VRM)
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-826BTS-R802LPB
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Package
    • 11.5" (H) x 26.5" (W) x 34" (D)
    Weight
    • Gross Weight: 58 lbs (26.3 kg)
    • Net Weight: 34 lbs (15.4 kg)
    Available Color
    • Black

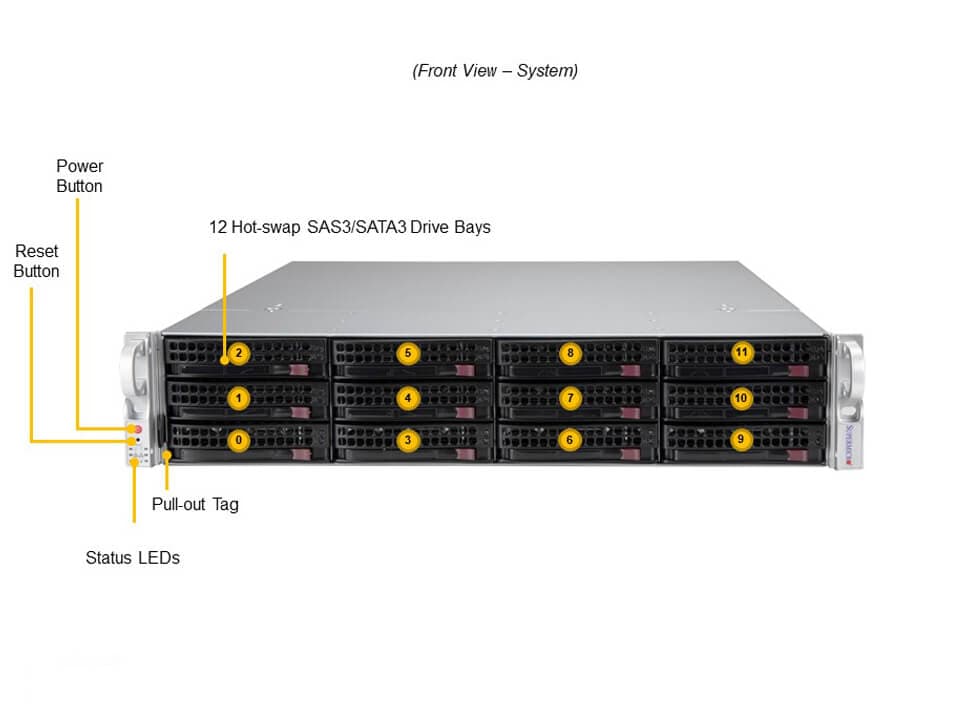

    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power Failure LED
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 LP slots
    • 2 PCIe 4.0 x16 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 12 bays:
    • 12 front hot-swap 3.5" SAS/SATA drive bays

    Option A: Total 14 bays:
    • 12 front hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 3 Heavy Duty PWM 80x80x38mm Fan(s)
    Power Supply
    2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 800W: 100-240Vac / 50-60Hz
    • 800W: 200-240Vdc / 50-60Hz

    +12V:
    • Max: 66A / Min: 0A (100Vac-240Vac)
    • Max: 66A / Min: 0A (200Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPI-TF1Super X12SPI-TF Motherboard
    CSE-826BTS-R802LPB12U Chassis
    Add-on Card / Module
    AOC-S3916L-H16IR-32DD-P116 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS
    Backplane
    BPN-SAS3-LA26A-N1212U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor
    Cable
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-SAST-1249-1001Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM,
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
    CBL-CDAT-0921-851[NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Parts
    MCP-260-00042-1N1Standard I/O Shield for X12SPi with EMI Gasket
    Manual
    MNL-2361-QRG1520P-ACTR12L/H Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0078P12U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-802A-1R21U 800W 100-240Vac/47-63Hz, and DC240 input
    *Power Distributor
    PDB-PT826-88241PDB with longer 24pin for SC826B
    *Front Panel
    FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s)
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    *Rear Window
    MCP-240-82608-0N1216B/826B LP rear window,RoHS/REACH,PBF
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    *Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    *Fan
    FAN-0166L4OR380x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
    FAN-0206L4-80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers

    Optional Part List

    Part Number Quantity Description
    2x 2.5" NVMe Cage (Rear)
    MCP-220-82619-0N + 1x CBL-SAST-1264-851Rear hot-swap 2x 2.5" NVMe drive kit
    2x 2.5" SATA/SAS Cage (Rear)
    MCP-220-82616-0N1Rear hot-swap 2x 2.5" SATA/SAS drive kit
    3.5" to 2.5" Converter Tray(s)
    MCP-220-00043-0N-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    CacheVault
    BTR-CVPM05 & MCP-240-00203-0N (For S3916)1CacheVault for Broadcom 3916 with SuperCap mounting bracket for PCIe location
    Intel VROC RAID Key for NVMe
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM
    AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-S-O1TPM 1.2, vertical form factor, provisioned for server
