  2. SSG UP 4U X12SPI-TF, CSE-847BE1C-R1K23LPB,HF

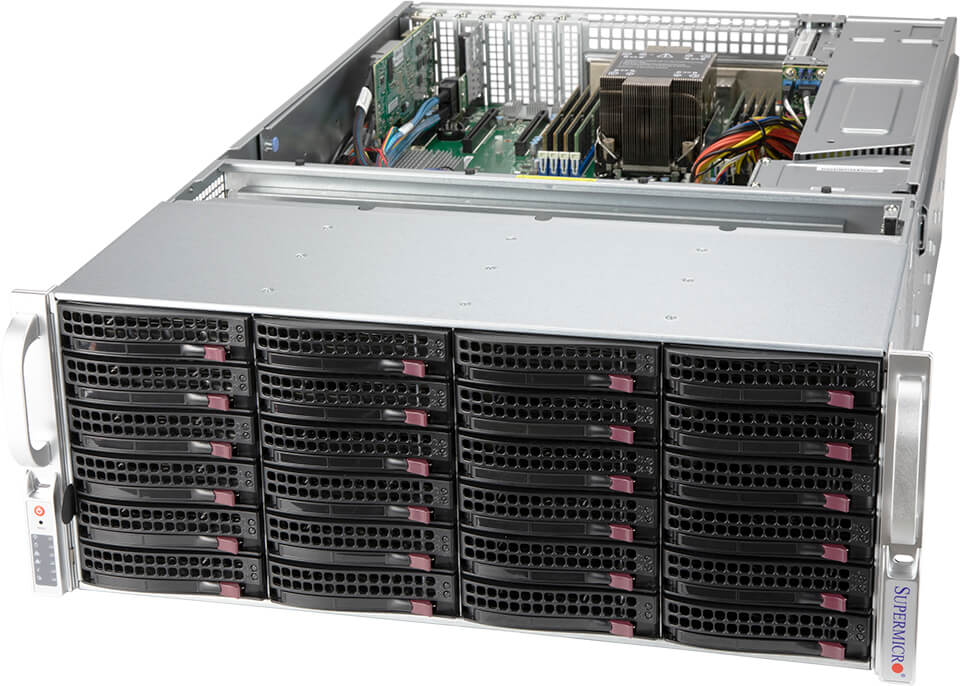

SSG UP 4U X12SPI-TF, CSE-847BE1C-R1K23LPB,HF

SSG-540P-E1CTR36L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10537/image_1920?unique=f7d9088

kr 41,667.89 41667.89 NOK kr 41,667.89

kr 41,667.89

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SSG-540P-E1CTR36L is a versatile 4U rackmount server designed for enterprise applications. It features a single socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processor, supports up to 8 DIMMs, and 36 hot-swap 3.5" SAS3/SATA3 drive bays.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • 36x Hot-swap 3.5" SAS3/SATA3 drive bays (24 front + 12 rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional); 2x Internal fixed bay support up to 4x 2.5" drive bays (optional)
    • Redundant Titanium 1200W Power Supply

    Key Applications

    • Enterprise Server
    • Database Processing & Storage
    • Appliance Optimized Storage

    Description

    The Supermicro SSG-540P-E1CTR36L is tailored for demanding enterprise environments requiring robust storage and processing capabilities. With support for 3rd Gen Intel Xeon Scalable processors up to 270W TDP, 8 DIMM slots supporting up to 2TB 3200MT/s ECC DDR4 memory, and comprehensive I/O options including 2 PCIe 4.0 x16 and 2 PCIe 4.0 x8 slots, this server ensures high performance and scalability. Fully equipped with 36 hot-swap 3.5" SAS3/SATA3 drive bays, redundant 1200W power supplies, and an extensive suite of management software, it meets the needs of modern data centers and enterprise applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-540P-E1CTR36L
    Motherboard
    Installed Motherboard
    • Super X12SPI-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 8 DIMM slots/8 Channels
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
    SAS
    • SAS (12Gbps) via Broadcom® 3808; (IT mode)
    NVMe
    • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen1 Type-A port(s)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator module (VRM)
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-847BTS-R1K23LPBP4
    Dimensions and Weight
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Package
    • 17.5" (H) x 27" (W) x 39.5" (D)
    Weight
    • Gross Weight: 102.5 lbs (46.4 kg)
    • Net Weight: 66.5 lbs (29.7 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power Failure LED
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 LP slots
    • 2 PCIe 4.0 x16 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 36 bays:
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 12 rear hot-swap 3.5" SAS/SATA drive bays

    Option A: Total 38 bays:
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 12 rear hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 7 Heavy Duty PWM 80x80x38mm Fan(s)
    Power Supply
    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vdc-240Vdc)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPI-TF1Super X12SPI-TF Motherboard
    CSE-847BTS-R1K23LPBP414U Chassis
    Add-on Card / Module
    AOC-S3808L-L8IT-P18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
    AOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
    Backplane
    BPN-SAS3-826EL1-N4112-Port 2U BPN with EXP up to 8x3.5" SAS3 HDD& 4xNVMe
    BPN-SAS3-846EL11SAS3 12G Single LSI SAS3 Expander, 24x 3.5" Drive, RoHS
    Cable
    CBL-0296L49" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-SAST-1264-1001Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
    CBL-SAST-0531OR4Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
    CBL-SAST-0531-01-Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI]
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-PWEX-10797PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
    Parts
    MCP-260-00042-1N1Standard I/O Shield for X12SPi with EMI Gasket
    Manual
    MNL-2360-QRG1540P-E1CTR36L/H Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0078P12U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    *Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    *Fan
    FAN-0166L4780x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
    *Front Panel
    FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s)
    MCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-84708-ASM1SC847B LP MB Tray assembly,HF,RoHS/REACH
    *Rail Set
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-410-00007-0N1Rail screw bag
    *Air Shroud
    MCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB

    Optional Part List

    Part Number Quantity Description
    2x 2.5" NVMe Cage (Rear)
    MCP-220-82619-0N + 1x CBL-SAST-1264-851Rear hot-swap 2x 2.5" NVMe drive kit
    2x 2.5" SATA/SAS Cage (Rear)
    MCP-220-82616-0N1Rear hot-swap 2x 2.5" SATA/SAS drive kit
    3.5" to 2.5" Converter Tray(s)
    MCP-220-00043-0N-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    Intel VROC RAID Key for NVMe
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM
    AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-S-O1TPM 1.2, vertical form factor, provisioned for server
