    Summary Description

    The Supermicro SSG-540P-E1CTR60H storage server offers top-tier performance with a single socket P+ LGA-4189, supporting up to 8 DIMMs, 60 hot-swap drive bays, and a redundant Titanium 1600W power supply.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • 60x Top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
    • 5 Hot-Swap 8cm redundant PWM fans
    • Redundant Titanium 1600W Power Supply

    Key Applications

    • Database Applications
    • Backup Storage, Cold Storage
    • Data Warehousing, Archiving

    Description

    The Supermicro SSG-540P-E1CTR60H is engineered for high-demand applications such as database management, data warehousing, and cold storage. Featuring a single socket P+ (LGA-4189) for 3rd Gen Intel® Xeon® Scalable processors, it supports up to 270W TDP, 8 DIMMs, and up to 2TB of DDR4-3200 memory. Its extensive storage capabilities include 60 top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays and additional hot-swap NVMe/SATA drive bays at the rear. Integrated with Intel® Ethernet Controller X550 offering 2x 10GbE RJ45 ports, this server also includes 5 hot-swap 8cm redundant PWM fans for efficient cooling. Built with robust power management, it includes a redundant Titanium 1600W power supply.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-540P-E1CTR60H
    Motherboard
    Installed Motherboard
    • Super X12SPI-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 38C/76T; Up to 57MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSV-946STS-R1K6LPP
    Dimensions and Weight
    Height
    • 7"
    Width
    • 17.2"
    Depth
    • 30.2" (767 mm)
    Package
    • 33.25" (H) x 28" (W) x 42.5" (D)
    Weight
    • Gross Weight: 169.5 lbs (76.9 kg)
    • Net Weight: 117 lbs (53 kg)
    Available Color
    • Black

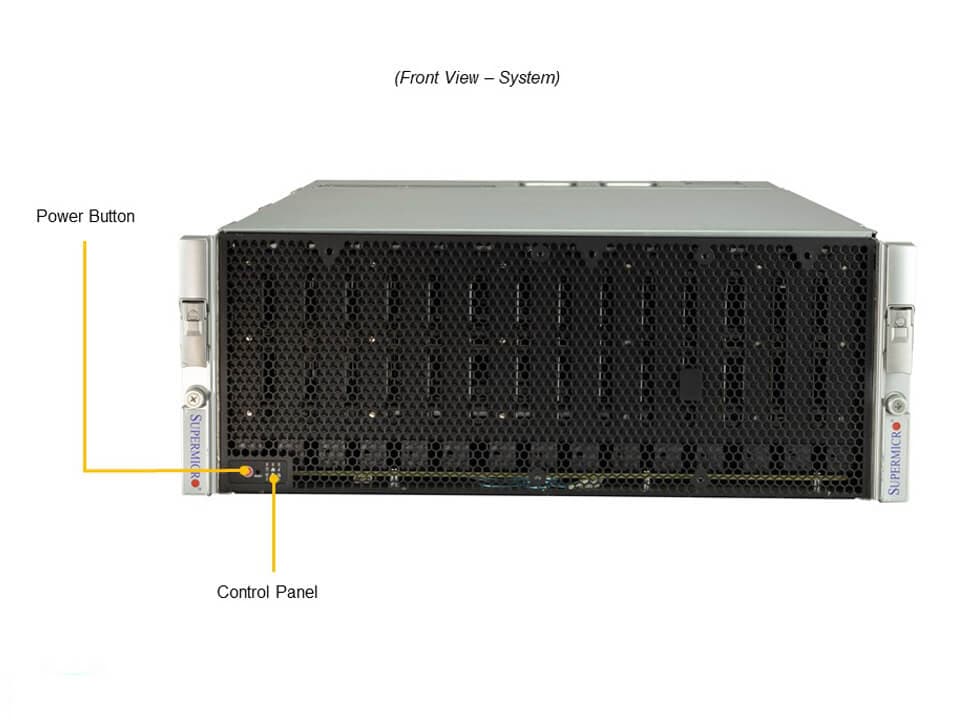

    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x8 LP slots
    • 2 PCIe 4.0 x16 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 60 bays:
    • 60 top-loading hot-swap 3.5" SAS/SATA drive bays

    M.2
    • 1 M.2 PCIe 3.0 x4 SATA slot (M-key)
    System Cooling
    Fans
    • 5 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1600W: 200-240Vac / 50-60Hz
    • 1600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 133.3A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% ()
    • Non-operating Relative Humidity: 5% to 95% ()

    Optional Part List

    Part Number Quantity Description
    2x 2.5" NVMe Cage (Rear)
    MCP-220-82620-0N +CBL-SAST-1231-85 + CBL-PWEX-1276 + CBL-0303L (female to female)1Rear hot-swap 2x 2.5" NVMe drive kit
    2x 2.5" SATA/SAS Cage (Rear)
    MCP-220-82616-0N+ 1x CBL-SAST-0699+ 1x CBL-0234L1Rear hot-swap 2x 2.5" SATA/SAS drive kit
    CacheVault
    BTR-CVPM05 & BKT-BBU-BRACKET-05 (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location
    Intel VROC RAID Key for NVMe
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    Network Cards
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    Power Cord
    CBL-PWCD-0579-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    CBL-PWCD-0300-IS-PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
    CBL-PWCD-0579-1-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
