X11DPH-T, CSE-847BTS-R1K23LPBP

SSG-6049P-E1CR36L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/2356/image_1920?unique=5410115

kr 43,928.49 43928.49 NOK kr 43,928.49

kr 43,928.49

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

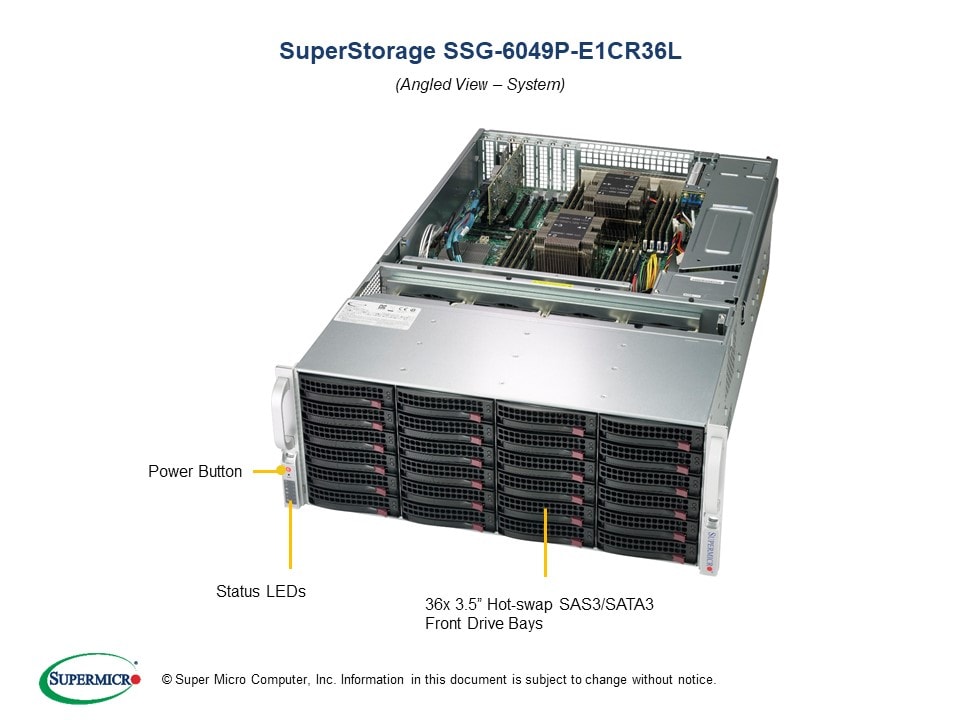

    The Supermicro SSG-6049P-E1CR36L is a versatile 4U storage server that supports up to 36 hot-swap 3.5" SAS3/SATA3 drive bays, designed for enterprise storage, database processing, and data center applications.

    Key Features

    • Corporate Database - Database Processing & Storage - Enterprise Server - HPC, Data Center - iSCSI SAN
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
    • 36 Hot-swap 3.5" SAS3/SATA3 drive bays including 4 optional NVMe drives; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
    • Broadcom 3008 SAS3 AOC
    • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
    • 1200W Redundant Power Supplies Titanium Level (96%)

    Key Applications

    • Corporate Database
    • Enterprise Server
    • HPC, Data Center
    • iSCSI SAN

    Description

    The Supermicro SSG-6049P-E1CR36L is an advanced storage server designed to meet the demanding needs of enterprise environments. With support for dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable processors, up to 4TB of memory, extensive PCI-E slots, and robust cooling and power supply features, this 4U rackmount server delivers powerful performance for various applications, including database processing, SAN, HPC, and more. The chassis includes 36 hot-swap 3.5" SAS3/SATA3 drive bays with optional NVMe drives, a Broadcom 3008 controller, dual 10GBase-T LAN ports, and comprehensive remote management capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SSG-6049P-E1CR36L
    • SuperStorage 6049P-E1CR36L ( Black )
    Motherboard
    Installed Motherboard
    • Super X11DPH-T
    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SAS
    • SAS3 (12Gbps) via Broadcom 3008 AOC
    • Broadcom 3008 controller
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Controllers
    • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    • 1 Type A
    VGA
    • 1 VGA port
    Serial Port / Header
    • 1 Fast UART 16550 port / 1 Header
    System BIOS
    BIOS Type
    • 256Mb AMI UEFI
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-847BE1C4-R1K23LPB
    Dimensions
    Width
    • 17.2" (437mm)
    Height
    • 7" (178mm)
    Depth
    • 27.5" (699mm)
    Weight
    • Gross Weight: 102.5 lbs (46.4 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power fail LED
    Expansion Slots
    PCI-Express
    • 3 PCI-E 3.0 x16 slot
    • 4 PCI-E 3.0 x8 slots
    • Slot 2 & 3 occupied by controller and JBOD Expansion Port
    Drive Bays
    Hot-swap
    • 36 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 2 Hot-swap 2.5" SATA3 drive bays (rear)
    Optional
    • 4 U.2 NVMe
    • 2 M.2 NVMe
    System Cooling
    Fans
    • 3 Hot-swap 8cm redundant PWM cooling fans
    • 2 Hot-swap 8cm rear exhaust PWM fans
    • Redundant cooling
    Power Supply (76mm Width)
    • 1200W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1000W/1200W
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A / 50-60Hz
    • 200-240Vdc / 8.5-7A (for CCC only)
    +12V
    • Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • 19 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • SAS3/SATA3 single expander per backplane

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPH-T1Super X11DPH-T Motherboard
    CSE-847BE1C4-R1K23LPB14U Chassis
    Add-on Card
    AOC-S3008L-L8E-P112Gbps SAS3/HBA/ 2 internal HD connectors/STD Gen3 PCI/122 HD support
    Add-on Card / Module
    AOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
    Backplane
    BPN-SAS3-826EL1-N4112-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
    BPN-SAS3-846EL1124-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable 1
    CBL-0296L34 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable 2
    CBL-SAST-0531-014MINI SAS HD,12G,INT,80CM,30AWG
    Cable 3
    CBL-SAST-05322MINI SAS HD,12G,INT,50CM,30AWG
    Parts
    MCP-220-82616-0N112G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Heatsink / Retention
    SNK-P0068PS12U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    SNK-P0068PSC12U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    FAN 1
    FAN-0158L4780x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    Converter Trays
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray
    MCP-220-00043-0N-Black hot-swap gen 4 3.5 to 2.5 HDD tray
    Convert 2 Rear SATA to NVMe
    MCP-220-82619-0N12.5x2 NVMe Drive Kit for 216B/826B/417B/846X/847B,RoHS
    AOC-SLG3-2E4R-O1LP, PCIe3 x8, 2 internal Mini-SAS HD port redriver NVMe card
    CBL-SAST-08492MiniSAS HD source to OcuLink v 1.0,INT,PCIe,57CM,34AWG
    4 NVMe Drives Support
    AOC-SLG3-2E4R-O2NVMe AOC
    CBL-SAST-05904Internal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s, 70cm
    MCP-220-00116-0B43.5" to 2.5" NVMe drive tray
    Drive Tray
    MCP-220-84701-0N1Internal drive tray for one 3.5" HDD or two 2.5" HDD
    CBL-SAST-0388L-021MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
    CBL-0082L1Y split SATA power extension
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
