Standard Storage with X12DPI-NT6,CSV-829HTS-R1K62,S3916L

SSG-620P-ACR16H

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10542/image_1920?unique=f7d9088

kr 40,943.57 40943.57 NOK kr 40,943.57

kr 40,943.57

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

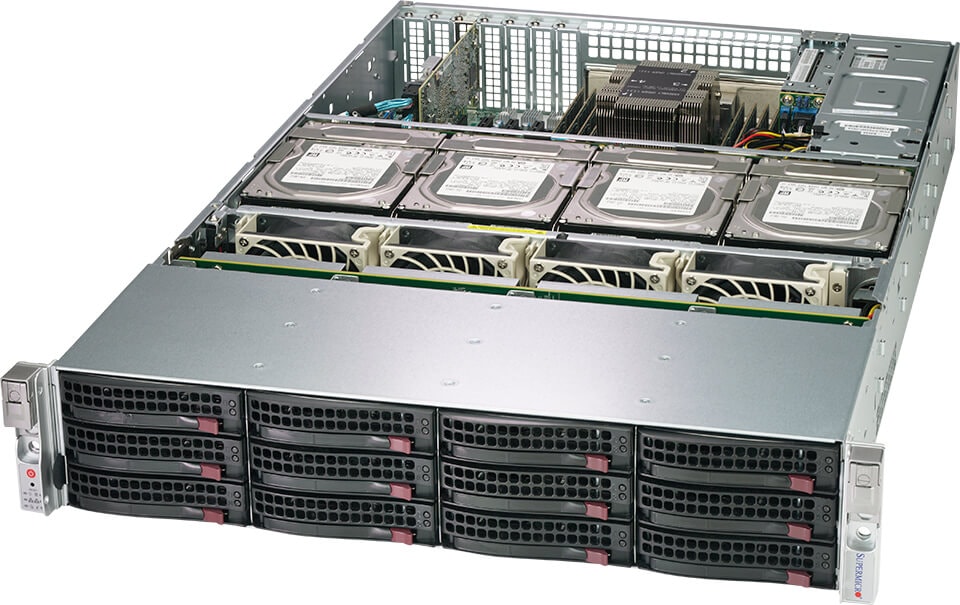

    The Supermicro SSG-620P-ACR16H features Dual Socket P+ Intel® Xeon® Scalable Processors, 16 DDR4 memory slots, hybrid storage bays, and advanced cooling. It is designed for high performance and scalability in data-intensive environments.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
    • 2x 10Gbe
    • 16x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA 2.5" Slots; onboard 1 M.2 NVMe
    • 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
    • 1600W Redundant Power Supplies Titanium Level (96%)
    • Broadcom® 3916 controller

    Key Applications

    • Enterprise Server
    • iSCSI SAN
    • HPC, Data Center
    • Database Processing & Storage
    • Corporate Database

    Description

    The Supermicro SSG-620P-ACR16H offers a robust solution for enterprise-level applications, including HPC, database processing, and data centers. With support for dual 3rd Gen Intel® Xeon® Scalable Processors, this server can handle demanding workloads with up to 4TB of ECC DDR4 memory and 16 hybrid drive bays for versatile storage options. It comes with three heavy-duty fans, redundant 1600W Titanium power supplies, and comprehensive security features, ensuring reliability and performance for critical business needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-620P-ACR16H
    Motherboard
    Installed Motherboard
    • Super X12DPi-NT6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 38C/76T; Up to 57MB Cache per CPU
    Note
    • Supports 120W - 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U
    Model
    • CSE-829HE1C4-R1K62LPB
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.75" (705 mm)
    Package
    • 10.8" (H) x 25.9" (W) x 39.3" (D)
    Weight
    • Gross Weight: 62 lbs (28.12 kg)
    • Net Weight: 41.5 lbs (18.82 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD Fail LED
    • Network Activity LEDs
    • Power Fail LED
    • Power status LED
    • System Information LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 4.0 x16 LP slots
    • 1 PCIe 4.0 x8 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 18 bays:
    • 8 front hot-swap 3.5" SAS/SATA drive bays
    • 4 internal hot-swap 3.5" SAS/SATA drive bays
    • 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 NVMe slot (M-key)
    System Cooling
    Fans
    • 4 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1600W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 133A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% ()
    • Non-operating Relative Humidity: 5% to 95% ()
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPi-NT61Super X12DPi-NT6 Motherboard
    CSE-829HE1C4-R1K62LPB12U Chassis
    Add-on Card / Module
    AOC-S3916L-H16IR-32DD-O116 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS
    Backplane
    BPN-SAS3-829HA-A414-Port 12Gbps Backplane for 4x3.5" Internal SAS3/SATA3 HDD/S
    BPN-SAS3-LA26A-N1212U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor
    Cable
    CBL-0277L2HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-PWEX-06452Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
    CBL-SAST-1250A-1001SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
    CBL-CDAT-06071[NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro
    CBL-CDAT-0921-851[NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWEX-10784PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Air Shroud
    MCP-310-82935-0B1Mylar 1U air shroud for SC829H X12
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077PW11U Passive CPU HS 92mm Width for X12 Whitley Platform
    SNK-P0078AP412U Active CPU Heat Sink for X12 Generation Building Block Solutions
    *Power Supply
    PWS-1K62A-1R2AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    *Power Distributor
    PDB-PT829H-282412U standard output with 24Pin PDB support up to
    *Fan
    FAN-0209L4480x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above
    FAN-0166L4OR480x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
    FAN-0206L4-80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
    *Front Panel
    FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s)
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-82902-0N1Middle tray plate for SC829H
    MCP-220-82903-0N4Internal mid tray with handle for SC829H
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    *Rail Set
    MCP-290-00053-0N-01136"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W

    Optional Part List

    Part Number Quantity Description
    3916 Cache Protection
    BKT-BBU-BRACKET-05 or MCP-240-00203-0N1Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05
    BTR-CVPM051 or 2Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender
    Bezel
    MCP-210-82601-0B-Black Front Bezel for 826 chassis
    Converter Tray
    MCP-220-00043-0N-Black hot-swap gen 4 3.5 to 2.5 HDD tray
    IPASS Cable
    CBL-SAST-0388L-02-30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
    Network Cards
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    More-AOC Compatibility Matrix (Select Storage & Generation)
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    NVMe Support
    CBL-SAST-1248-852[NR] Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM,RoHS
    MCP-220-00116-0B4Black gen-5.5 tool-less 3.5-to-2.5 NVME converter drive tray,RoHS/REACH
    Power Cord
    CBL-PWCD-0579-1-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    CBL-PWCD-0300-IS-PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
    CBL-PWCD-0579-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    Rear 3808 SAS Support
    AOC-S3808L-L8IT-O13808 SAS Controller
    CBL-SAST-1270-1001SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
    Rear 3908 SAS Support
    AOC-S3908L-H8IR-16DD-O13908 SAS Controller
    CBL-SAST-1270-1001SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
    Toolless Converter Tray
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
