X13 SSG 2U 12Bay: X13DEI-T, CSE-826BTS-R1K23LPBP2, S3816

SSG-621E-ACR12L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10502/image_1920?unique=f7d9088

kr 33,840.07 33840.07 NOK kr 33,840.07

kr 33,840.07

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

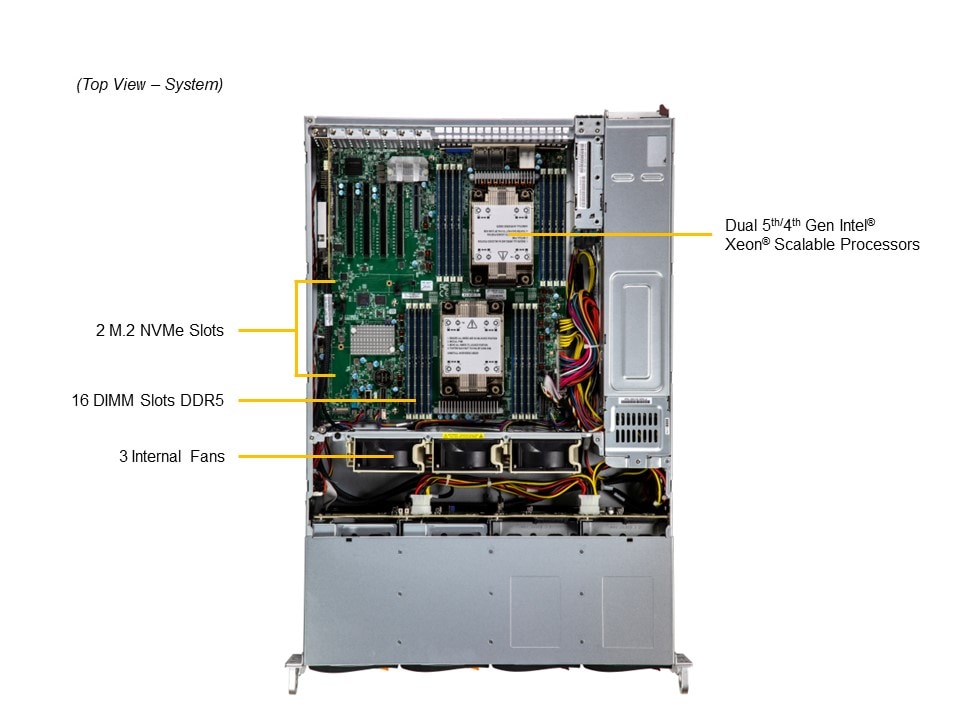

    The Supermicro SSG-621E-ACR12L is a powerful 2U rackmount system designed to handle demanding enterprise storage and processing needs. Featuring dual-socket 5th/4th Gen Intel® Xeon® Scalable processors and support for up to 4TB of DDR5 memory, this server is built for performance and reliability.

    Key Features

    • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
    • 2x 10 GbE onboard via Broadcom BCM574161x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 12x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
    • 3x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 1200W Redundant Power Supplies Titanium Level (96%)
    • HBA Controller support via Broadcom® 3816

    Key Applications

    • Enterprise Server
    • iSCSI SAN
    • HPC, Data Center
    • Database Processing & Storage
    • Corporate Database
    • Appliance Optimized Storage Building Blocks

    Description

    Boost your enterprise storage capabilities with the reliable Supermicro SSG-621E-ACR12L. This server supports dual-socket 5th/4th Gen Intel® Xeon® Scalable processors and up to 4TB DDR5 memory, ensuring robust performance for data-intensive applications. With 12 hot-swap bays for 3.5"/2.5" SAS3/SATA3 and additional NVMe and M.2 slots, it offers flexible and expansive storage options. It includes dual 10GbE networking, hot-swap redundant power supplies, advanced management tools, and increased security features for optimal performance and uptime.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-621E-ACR12L
    Motherboard
    Installed Motherboard
    • Super X13DEI-T
    Processor
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 RJ45 10GbE with Broadcom® BCM57416
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1)
    USB
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s) (Rear)
    Serial
    • 1 COM port(s) (Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-826BTS-R1K23LPBP2
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Package
    • 11.5" (H) x 26.5" (W) x 34" (D)
    Weight
    • Gross Weight: 58 lbs (26.3 kg)
    • Net Weight: 34 lbs (15.4 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power Failure LED
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 5.0 x16 (in x16) LP slots
    • 2 PCIe 5.0 x8 (in x8) LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 14 bays:
    • 12 front hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SATA drive bays

    Option A: Total 6 bays:
    • 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 3 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vdc-240Vdc)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13DEI-T1Super X13DEI-T Motherboard
    CSE-826BTS-R1K23LPBP212U Chassis
    Add-on Card / Module
    AOC-S3816L-L16IT-P116 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp
    Backplane
    BPN-NVME5-LA26A-S1212U 12-Slot 3.5" SATA3/SAS3/NVMe5 Hybrid Backplane X13 Cl
    Cable
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-SAST-1249-1001Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM,
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
    CBL-CDAT-0921-851[NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Parts
    MCP-260-00042-3N1STD I/O shield for X13 server MB with venting holes
    Air Shroud
    MCP-310-82619-0B1Sponge air Block sets for CSE-826B and LA26-AW
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0088P22U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Power Supply
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    *Power Distributor
    PDB-PT826-88241PDB with longer 24pin for SC826B
    *Front Panel
    FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s)
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    *Rear Window
    MCP-240-82608-0N1216B/826B LP rear window,RoHS/REACH,PBF
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    *Fan
    FAN-0166L4OR380x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
    FAN-0206L4-80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers

    Optional Part List

    Part Number Quantity Description
    Cable - for NVMe in main drive bay
    CBL-MCIO-1260M53MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
    Cable Management Arm
    MCP-290-00073-0N1Supermicro Cable Management Arm
    MCP-120-82503-0N1Cable Arm Adapter
    Converter Tray
    MCP-220-00043-0N12.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
    Converter Tray - orange NVMe tab
    MCP-220-00138-0B1Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    Network Cards
    AOC-S25G-b2S-O1Std LP 2-port 25G SFP28, Broadcom BCM57414
    AOC-S25G-i2S-O1Std. Low Profile 25G dual port SFP28, based on Intel XXV710
    AOC-S25G-M2S-O1Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
    AOC-STG-b2T-O1Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
    AOC-STGS-i2T-O1Std LP 2-port 10G RJ45, Intel X550
    Power Cord
    CBL-PWCD-0300-IS1PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
    CBL-PWCD-05791Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    CBL-PWCD-0579-11Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    VROC
    AOC-VROCPREMOD1Intel VROC Premium, RAID0,1,5,10,HF,RoHS
    AOC-VROCSTNMOD1Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
