CSE-103-R407B + MBD-X11SDS + AOM-SMF-TP4F-P
SYS-1019D-FRN5TP
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-1019D-FRN5TP is a highly capable 1U rackmount server featuring the Intel® Xeon® D-2146NT processor, designed for high-performance computing and extensive scalability options.
Key Features
- Intel® Xeon® D-2146NT Processor, 8-Core, 16 Threads, 2.3 GHz, 80W
- Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
- 4 PCI-E 3.0 x8 slots for optional AIOM
- 2x 2.5" drive bays (one drive space shares with M.2), 2 E1.S (40°C ambient temperature only)
- M.2 Slots: 2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA) (space shared with one 2.5" drive bay), 1 B-Key 3042 (PCI-E 3.0 x4/SATA) 1 E-Key 2230 (PCI-E 3.0 x2)
- 2x 10GbE (shared with IPMI), 2x 10G SFP+, 1 Ethernet Management port
- 2 USB 3.0, 1 VGA, 1 COM via RJ45 or Micro USB
- 400W Redundant Platinum Level Power Supplies
Key Applications
- Centralized/Cloud Radio Access Network (C-RAN) Universal Customer Premise Equipment (uCPE) Software Defined WAN (SD-WAN) Network Function Virtualization (NFV)
Description

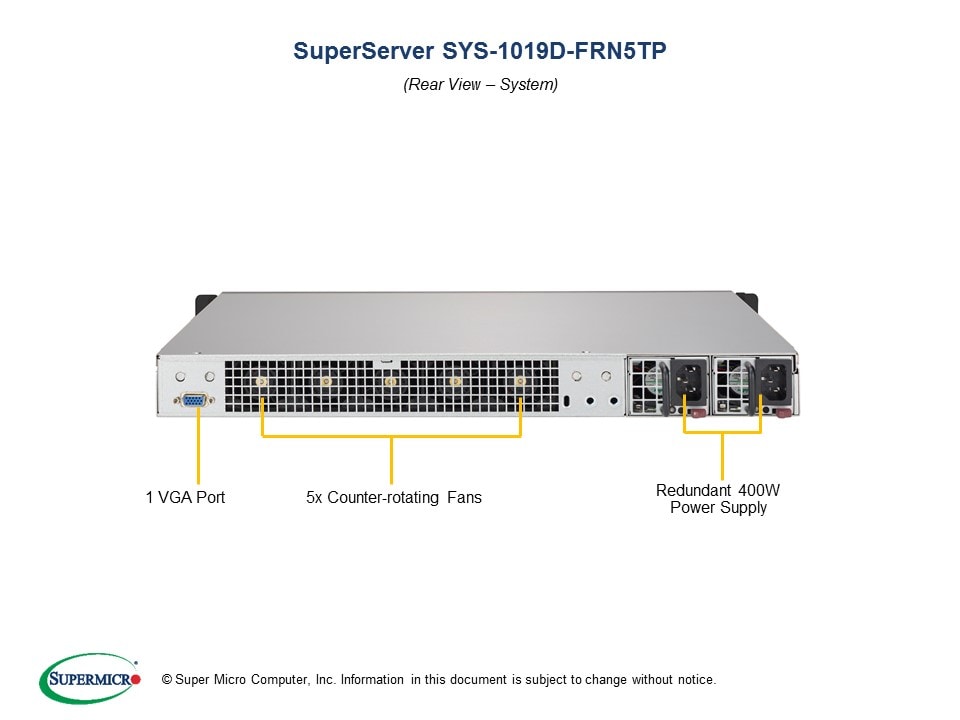

The Supermicro SYS-1019D-FRN5TP is equipped with a powerful Intel® Xeon® D-2146NT processor, supporting up to 512GB ECC LRDIMM in 4 DIMM slots. With four PCI-E 3.0 x8 slots for AIOM, dual 10GbE and 10G SFP+ network ports, this server is optimized for centralized/cloud radio access networks, universal customer premise equipment, software-defined WAN, and network function virtualization. It includes robust storage options, advanced thermal management with five counter-rotating fans, and 400W redundant platinum level power supplies.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-1019D-FRN5TP |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores / Cache |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Internal |
|
| Others |
|
| System Cooling | |
| Fans |
|
| AC/DC240V Input Redundant Power Supplies | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5V sb |
|
| Output Type |
|
| Certification |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SDS-8C | 1 | Super X11SDS-8C Motherboard |
| CSE-103-R407B | 1 | 1U Chassis |
| Add-on Card / Module | ||
| AOM-SMF-TP4F-P | 1 | I/O Module for X11SDS, 2x SFP+, 2x 10G RJ45, 1x 1G RJ45, 1x RJ45 Console (mux micro-USB), 2x USB3.0, PDB,RoHS |
| Cable 1 | ||
| CBL-0082L | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| Cable 2 | ||
| CBL-0212L | 1 | 4 PIN POWER CABLE FOR SC808 S809, S-RA, 20CM, 20AWG |
| Cable 3 | ||
| CBL-0473L | 2 | SATA,INT,ROUND,ST-ST,21CM,30AWG |
| Cable 4 | ||
| CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS |
| Manual | ||
| MNL-2192 | 1 | 1019D-(12C/14C/16C-)FRN5TP User's Manual |
| *Power Supply | ||
| PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| AIOM | ||
| AOC-AG-i8 | - | AIOM 8-port GbE RJ45, 2x Intel i350-AM4,RoHS |
| AOC-AG-i4S | - | AIOM 4-port GbE SFP, Intel i350-AM4,RoHS |
| AOC-ATG-I2T-P | - | AIOM 2-port 10GBase-T, Intel X550,RoHS |
| AOC-A25G-B2S-P | - | AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS |
| E1.S (EDSFF Short) | ||
| HDS-IEN0-SSDPEYKX040T8 | - | Intel DC P4511 EDSFF E1.S TLC 5.9mm 4TB |
| E1.S Tray | ||
| MCP-220-12105-0N | - | SC121EF EDSFF-S cage (36mm height x9.5mm W) |
| E1.S Air Shroud | ||
| MCP-310-10302-0B | - | Mylar Air Shroud for SC103 (X11SDS), for EDSFF |
| Rack Bracket | ||
| MCP-290-00016-0N | - | 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N |
