X11SSW-F, CSE-514-R407W

SYS-1019S-WR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/1564/image_1920?unique=dec9d2d

kr 12,567.16 12567.16 NOK kr 12,567.16

kr 12,567.16

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro SYS-1019S-WR is designed to deliver exceptional performance for appliance servers and embedded applications. Featuring support for the latest Intel® processors, robust memory configurations, and multiple expansion slots, this 1U rackmount offers reliability and flexibility in a compact form.

    Key Features

    • Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • 2 fixed 2.5" drive bays
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8 slot)
    • 2 GbE ports with Intel® i210-AT, 1 dedicated IPMI port

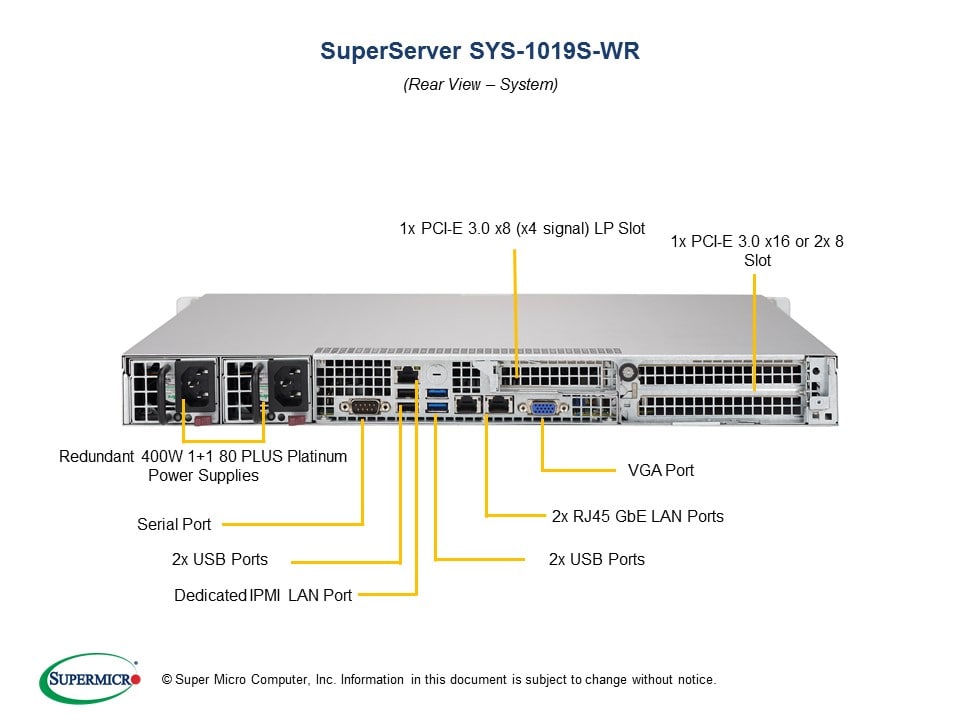

    • 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
    • 400W Redundant Platinum Level power supplies

    Key Applications

    • • Appliance Server, WIO • Embedded Applications

    Description

    The Supermicro SYS-1019S-WR is a powerful 1U rackmount server that supports single Socket H4 (LGA 1151) for Intel® Xeon® processor E3-1200 v6/v5, 7th/6th Gen Core™ i3 series, Celeron®, and Pentium® processors. It boasts an Intel® C236 chipset, up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz memory, and ample expansion options including PCI-E slots, and dual Intel® I210-AT Gigabit Ethernet ports. The server features advanced cooling solutions, redundant 400W power supplies, and comprehensive system management tools.

    Product Specifications

    Product SKUs
    SYS-1019S-WRSuperServer 1019S-WR (Black)
    Motherboard
    Super X11SSW-FSuper X11SSW-F
    Super X11SSW-F
    Processor/Cache
    CPUSingle Socket H4 (LGA 1151) supports:
    Intel® Xeon® processor E3-1200 v6/v5,Intel® 7th/6th Gen Core™ i3,Intel® Pentium®,Intel® Celeron® processors
    CPU TDP up to 80W
    NoteBIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
    System Memory
    Memory Capacity4x 288-pin DDR4 DIMM slots
    Up to 64GB DDR4 ECC UDIMM
    Memory Type2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes16GB, 8GB, 4GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C236 chipset
    SATASATA3 (6Gbps) via C236 controller
    RAID 0, 1, 5, 10 support
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    ASPEED AST2400 BMC
    Network ControllersDual Intel® I210-AT Gigabit Ethernet LAN ports
    Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    VideoASPEED AST2400 BMC
    Input / Output
    SATA6 SATA3 (6Gbps) ports
    LAN2 RJ45 Gigabit Ethernet LAN ports
    1 RJ45 dedicated IPMI LAN port
    USB5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    6 USB 2.0 ports (2 rear + 4 headers)
    Video1 VGA port
    Serial Port / Header2 COM ports (1 rear, 1 header)
    SuperDOM2SuperDOM(Disk on Module) ports with built-in power
    PC Health Monitoring
    VoltageMonitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FANTotal of 6 fan headers supporting up to 6 fans
    4 fans with tachometer status monitoring
    Status monitor for speed control
    Status monitor for on/off control
    Low noise fan speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    I2C temperature sensing logic
    Thermal Monitor 2 (TM2) support
    PECI
    LEDSystem Information LED
    Suspend static indicator LED
    UID/Remote UID
    Other FeaturesChassis intrusion detection
    Chassis intrusion header
    RoHS, Halogen Free
    Chassis
    Form Factor1U Rackmount
    ModelCSE-514-R407W
    Dimensions and Weight
    Height1.7" (43mm)
    Width17.2" (437mm)
    Depth16.9" (429mm)
    Package23.8" (W) x 8" (H) x 27" (L)
    WeightGross Weight: 27 lbs (12.25 kg)
    Net Weight: 15.5 lbs (7.03 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    System Reset button
    LEDsPower LED
    Hard drive activity LED
    2 Network activity LEDs
    System Information LED
    Information LED (temp., status)
    Expansion Slots
    PCI-ExpressLeft riser slot: 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8
    1 PCI-E 3.0 x4 (in x8 slot)
    M.21x M.2 Interface: PCI-E 3.0 x4 and SATA
    Form Factor: 2260, 2280, 22110
    Key: M-Key
    Double Height Connector
    Drive Bays
    Internal2 fixed 2.5" drive bays
    System Cooling
    Fans4x 40x56mm PWM Cooling Fans
    2x Optional fans for AOC cooling
    AC/DC240V Input Redundant Power Supplies
    400W 1U Redundant Power Supplies with PMbus400W 1U Redundant Power Supplies with PMbus
    Total Output Power400W
    Dimension(W x H x L)54.5 x 40 x 220 mm
    Input100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12VMax: 33A / Min: 0.5A
    +5V sbMax: 3A / Min: 0A
    Output TypeGold Finger Connector Mating with Molex 45984-4343
    Certification
    Platinum Level Certified
    [Test Report]
    Test Report
    System BIOS
    BIOS Type8MB SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature:10°C to 35°C (50°F to 95°F)
    Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity:8% to 90% (non-condensing)
    Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X11SSW-F1Super X11SSW-F Motherboard
    CSE-514-R407W11U Chassis
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-19007-0N1SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Cable 1
    Part NumberQuantityDescription
    CBL-0082L1Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2
    Part NumberQuantityDescription
    CBL-0227L1SATA, INT, ROUND, ST-RA, 48CM, 26AWG
    Label
    Part NumberQuantityDescription
    LBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    Manual
    Part NumberQuantityDescription
    MNL-1880-QRG1X11SSW-F, CSE-514-R407W
    Riser Card
    Part NumberQuantityDescription
    RSC-R1UW-E8R11U RHS WIO Riser card with one PCI-E x8 slot
    RSC-W-6811U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0046P11U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply
    Part NumberQuantityDescription
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    Fan
    Part NumberQuantityDescription
    FAN-0156L4 orFAN-0086L4440x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M

    Optional Part List

    SATA cable for 2nd HDD
    Part NumberQuantityDescription
    CBL-0227L148cm 30AWG SATA straight to RA cable
    GPU Optional Parts
    Part NumberQuantityDescription
    FAN-0141L4240x40x56mm 20.5K RPM, Counter-rotation fan
    CBL-0424L18 pin to Daul 6+2 pin GPU power extenstion, 40cm
    CBL-0296L14pin to 4pin fan extension cord for PWM fan 23cm
    Network Card(s)
    Part NumberQuantityDescription
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGF-i2S-Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    AOC-STG-B4S-Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGS-i2T-Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9665V1TPM 2.0, vertical form factor
    AOM-TPM-9655V1TPM 1.2, vertical form factor
    Global Services & Support
    Part NumberQuantityDescription
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
