  2. Ultra 1U, 10x2.5"NVMe 2X10GBaseT,X11DPU,119UAC10-R1K02P-T

Ultra 1U, 10x2.5"NVMe 2X10GBaseT,X11DPU,119UAC10-R1K02P-T

SYS-1029U-TN10RT

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/1370/image_1920?unique=73d2afe

kr 32,204.68 32204.68 NOK kr 32,204.68

kr 32,204.68

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro SYS-1029U-TN10RT is a high-end 1U rackmount server designed for virtualization, cloud computing, and enterprise applications. Equipped with dual Intel Xeon Scalable processors, it supports up to 6TB of DDR4 memory and features advanced storage and network capabilities.

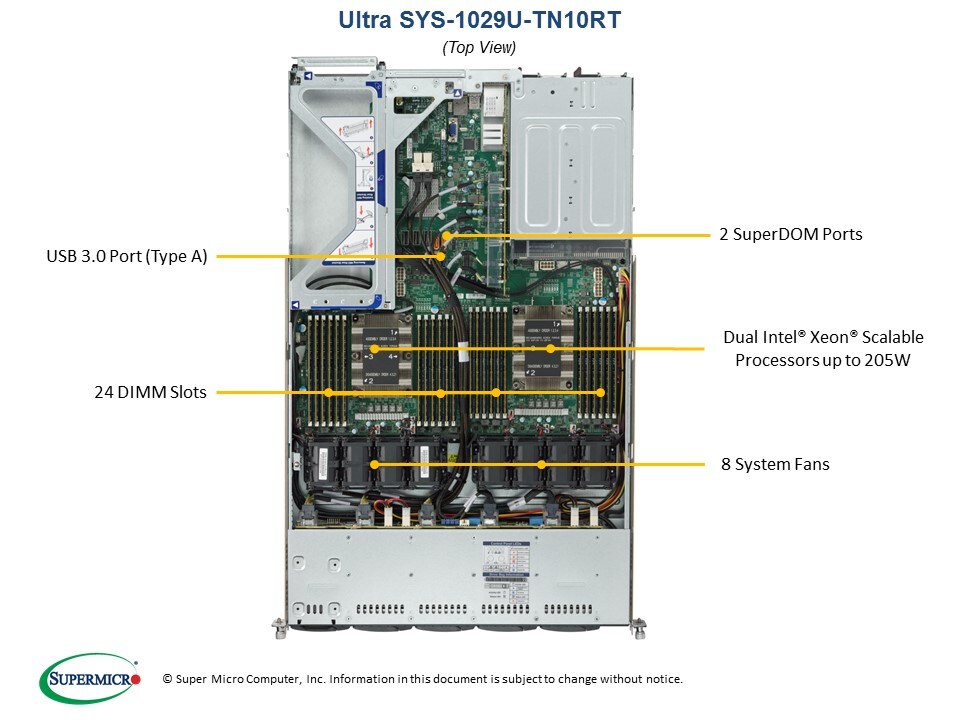

    Key Features

    • 2x 10GBase-T LAN ports
    • 8 Heavy duty fans w/ optimal fan speed control
    • 10 Hot-swap 2.5" Drive Bays; 10 NVMe (4 hybrid ports - optional SAS3 via AOC); 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
    • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
    • 2 PCI-E 3.0 x16 (FH, 10.5"L)
    • 1000W Redundant Power Supplies Titanium Level (96%)

    Key Applications

    • Virtualization
    • Cloud Computing
    • High End Enterprise Server

    Description

    The Supermicro SYS-1029U-TN10RT server, equipped with dual Socket P (LGA 3647) to support 2nd Gen Intel Xeon Scalable processors, offers unmatched performance for enterprise applications. With 24 DIMM slots supporting up to 6TB ECC DDR4-2933MHz memory and Intel Optane DCPMM, the server ensures superior memory capacity and speed. Storage options include 10 hot-swap 2.5" NVMe drive bays, multiple M.2 slots, and optional SAS3 support, making it ideal for various storage configurations. The system features robust networking with dual 10GBase-T LAN ports and comprehensive management tools, including IPMI 2.0, Intel Node Manager, and Redfish API. This server is designed for optimal cooling and efficiency with its eight heavy-duty fans and 1000W Titanium Level redundant power supplies. Its compact 1U form factor and rich expansion capabilities make it perfect for data centers and high-demand environments.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-1029U-TN10RT
    • SuperServer 1029U-TN10RT (Black)
    Motherboard
    Super X11DPU
    • Super X11DPU
    • Super X11DPU
    Processor
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Safe Consulting Technical Support for additional information.
    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    • 2666 ECC DDR4 NVDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Connectivity
    • 2 10GBase-T ports viaAOC-URN6-i2XT
    • Intel® X540 Dual Port 10GBase-T
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    NVMe
    • 6 NVMe ports (NVMe from CPU 1)
    • 4 NVMe Hybrid ports with optional SAS3 (NVMe from CPU 2)
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports(2 rear, 2 front, 1 Type A)
    Video
    • 2 VGA ports (1 rear, 1 onboard)
    Serial Port
    • 1 Serial header
    DOM
    • 2 SuperDOM(Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • Redfish API
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM,SPM,SUM
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UTS-R1K02P-N10T
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 28.5" (724mm)
    Gross Weight
    • 48 lbs (21.8 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • UID LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 slots (Full-height, 10.5"L)(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)
    Drive Bays / Storage
    Hot-swap
    • 10 Hot-swap 2.5" drive bays
    • 10 NVMe (4 hybrid ports for optional SAS3 via AOC)
    M.2
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
    • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
    System Cooling
    Fans
    • 8 Heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    1000W Redundant Power Supplies with PM Bus
    • 1000W Redundant Power Supplies with PM Bus
    Total Output Power
    • 800W: 100 – 127Vac
    • 1000W: 200 – 240Vac
    • 1000W: 200 – 240Vdc (for CCC only)
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 9.8 - 7A / 50-60Hz
    • 200-240Vac / 7 - 5A / 50-60Hz
    • 200-240Vdc / 7 - 5A (for CCC only)
    +12V
    • Max: 66.7A / Min: 0A (100-127Vac)
    • Max: 83A / Min: 0A (200-240Vac)
    • Max: 83A / Min: 0A (200-240Vdc)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPU1Super X11DPU Motherboard
    CSE-119UTS-R1K02P-N10T1CSE-119UTS-R1K02P-N10T
    Add-on Card / Module
    AOC-SLG3-2E4R-P1NVMe AOC by 8,HF,RoHS/REACH
    AOC-URN6-I2XT-P1AOC-URN6-I2XT
    Backplane
    BPN-SAS3-116A-N10110-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
    Cable 1
    CBL-CDAT-072814 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
    Cable 2
    CBL-PWEX-07801PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),40/40CM,18AWG,RoHS
    Cable 3
    CBL-PWEX-07811PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS
    Cable 4
    CBL-SAST-08202OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
    Cable 5
    CBL-SAST-08492MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG
    Cable 6
    CBL-SAST-09641Oculink v1.0 6x cable bundle 549/574/425/444/571/603mm 34AWG
    Air Shroud
    MCP-310-81910-0N1Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
    MCP-310-81911-0N1Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
    Riser Card
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    RSC-UMR-811U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
    Heatsink / Retention
    SNK-P0067PS21U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    *Power Supply
    PWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    Add-on card for internal M.2 NVMe
    AOC-SLG3-2M21Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M.2 NVMe Modules
    Cable for 4x Hybrid NVMe/SATA Drive Bays
    CBL-SAST-08801MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG for optional 4x SATA3
    Cable for internal M.2 SATA
    CBL-SAST-0538129cm 30AWG SATA S-RA cable
    Network Card(s)
    AOC-SGP-i2/4-Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i1S/i2S-Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
    AOC-STGF-i2S-Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
    AOC-STG-i4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
    AOC-STG-b4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STG-i2T-Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    AOC-STGS-i1/2T-Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
    AOC-STG-i4T-Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
    AOC-STG-i2-Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-i2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    More-AOC Compatibility Matrix
    CacheVault(s)
    BTR-CV3108-1U1-CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
    BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05-CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
    TPM security module
    AOM-TPM-9670H-SAOM-TPM-9671H-S11TCG 2.0 compliant trusted platform module (TPM), Horizontal FFTCG 1.2 compliant trusted platform module (TPM), Horizontal FF
    Intel VROC RAID Key
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
