  2. 24C Snow Ridge SOC, A3SSV-24C-SPLN10F,CSE-506-R300

24C Snow Ridge SOC, A3SSV-24C-SPLN10F,CSE-506-R300

SYS-110A-24C-RN10SP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10375/image_1920?unique=a1dbe1e

kr 21,183.40 21183.4 NOK kr 21,183.40

kr 21,183.40

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-110A-24C-RN10SP server is designed for edge computing with a powerful Intel® Atom® Snow Ridge P5362 24-core processor. It offers comprehensive network connectivity options, including 4 RJ45 1GBASE-T and 2 SFP28 25GbE ports. The system integrates advanced cooling technologies and multiple expansion slots.

    Key Features

    • Intel®  Atom® Snow Ridge P5362 24-Core with embedded QAT support
    • 1x PCIe 3.0 x8 expansion for AOC
    • 2 Hot-swap 2.5" SATA3 drive bays
    • 3x 40x28mm 4-PIN PWM fans
    • Cost Effective 1U Short-Depth Chassis with Redundant 300 PSU
    • M.2 selections (M.2 M-Key for SSD, B-Key for WAN or 4G-LTE module, Ekey for WiFi )TPM Onboard and header both, IPMI with OOB support

    Key Applications

    • 1U Short-Depth Edge Server
    • Network Appliance & Security
    • SD-WAN and vCPE / uCPE
    • Hyper Converged Infrastructure

    Description

    Supermicro SYS-110A-24C-RN10SP is a 1U short-depth edge server tailored for various applications including network appliance, security, and hyper-converged infrastructure. It features the Intel® Atom® Snow Ridge P5362 processor with embedded QAT support, 4 DIMM slots supporting up to 256GB DDR4 ECC memory, and multiple network connectivity options with Intel® and Marvell® controllers. The server also includes hot-swap drive bays, versatile M.2 slots, and a redundant 300W power supply, ensuring both performance and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-110A-24C-RN10SP
    Motherboard
    Installed Motherboard
    • Super A3SSV-24C-SPLN10F
    Processor
    CPU
    • Single FCBGA-2106
    • Intel® Atom® Snow Ridge P5362
    Note
    • Supports up to 83W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® P5362
    Network Connectivity
    • 4 RJ45 1GBASE-T with Intel® I350-AM4
    • 4 RJ45 1GBASE-T with Marvell® 88E1543
    • 2 SFP28 25GbE with Intel® P5000 SoC

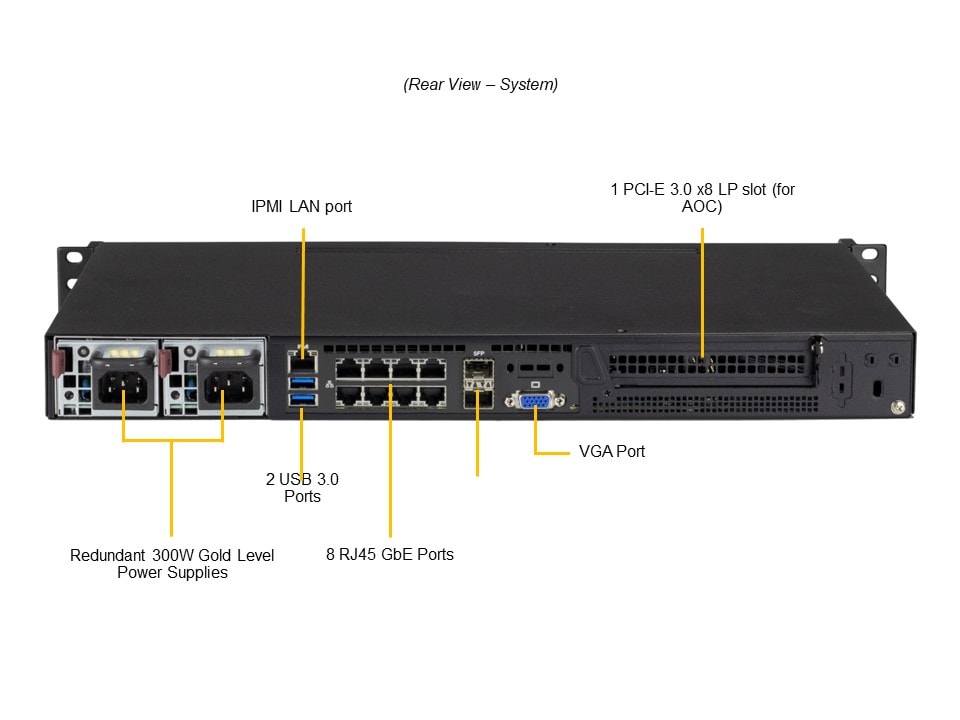

    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 8 RJ45 1 GbE LAN port(s)
    • 2 RJ45 25 GbE LAN port(s)
    USB
    • 2 Type-A port(s)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ATX Power connector
    • +12V DC Power Input
    • CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    FAN
    • Pulse Width Modulated (PWM) fan connectors
    • Fan speed control, Dual Cooling Zone
    • Support 3-pin fans (w/o speed control)
    • 3 fans with tachometer status monitoring, Status monitoring for speed control
    Temperature
    • CPU thermal trip support
    • Thermal Control for 3 Fan Connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-506TS-R000NP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 9.8" (249 mm)
    Package
    • 6.1" (H) x 25.8" (W) x 18.3" (D)
    Weight
    • Gross Weight: 12 lbs (5.44 kg)
    • Net Weight: 8 lbs (3.63 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD Status
    • LAN1 activity
    • LAN2 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • Reset On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 3.0 x8 HHHL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front hot-swap 2.5" SAS/SATA drive bays

    M.2
    • 1 M.2 SATA slot (M-key 2242/2280/22110; USB 2.0)
    • 1 M.2 SATA slot (B-key 2242/2280/3042; USB 2.0)
    • 1 M.2 SATA slot (E-key 2230; USB 2.0)
    System Cooling
    Fans
    • 3x 4-PIN PWM 40x28mm Fan(s)
    Power Supply
    1x 300W Redundant Gold Level (90%) power supply
    Dimension (WxHxL):
    • 106 x 40.5 x 220 mm

    AC Input:
    • 300W: 100-240Vac / 50-60Hz

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A3SSV-24C-SPLN10F1Super A3SSV-24C-SPLN10F Motherboard
    CSE-506TS-R000NP11U Chassis
    Backplane
    BPN-SAS3-826TQ-B2B12-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
    Cable
    CBL-0234L1Y CABLE FOR 4-PIN HDD
    CBL-SAST-053827pin SATA (STR to RA),29cm,PBF
    CBL-PWCD-0260-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-PWEX-1097-151[NR] CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,15CM
    CBL-PWEX-1098F-101[NR] 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF,FFC,10CM
    Rear Window
    MCP-240-00091-0N11U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts
    MCP-260-00135-0B11U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket
    MCP-260-00100-0B11U I/O Shield
    Air Shroud
    MCP-310-50601-0B1Mylar air shroud for SC506 with A3SSV-24C-SPLN10F
    Manual
    MNL-2278-QRG1110A-16C/24C-RN10SP Quick Reference Guide
    Riser Card
    RSC-RR1U-E81RSC-RR1U-E8
    *Power Supply
    PWS-301P-1R21U 300W Redundant Single Module for PWS-301R-1R
    *Power Distributor
    PDB-PT506-N2411U 300W Redundant Backplane and Housing for PWS-301R-1R, RoH
    *Fan
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    *Front Panel
    FPB-FP826-D1Front control board Dual color LED(FP826-D)forSC826,213,216,
    FPB-TB826116 pin Cable Adaptor Board for SC826
    *Drive Tray(s)
    MCP-220-00147-0B2Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
    *Fan Holder
    MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9671V-O1SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
